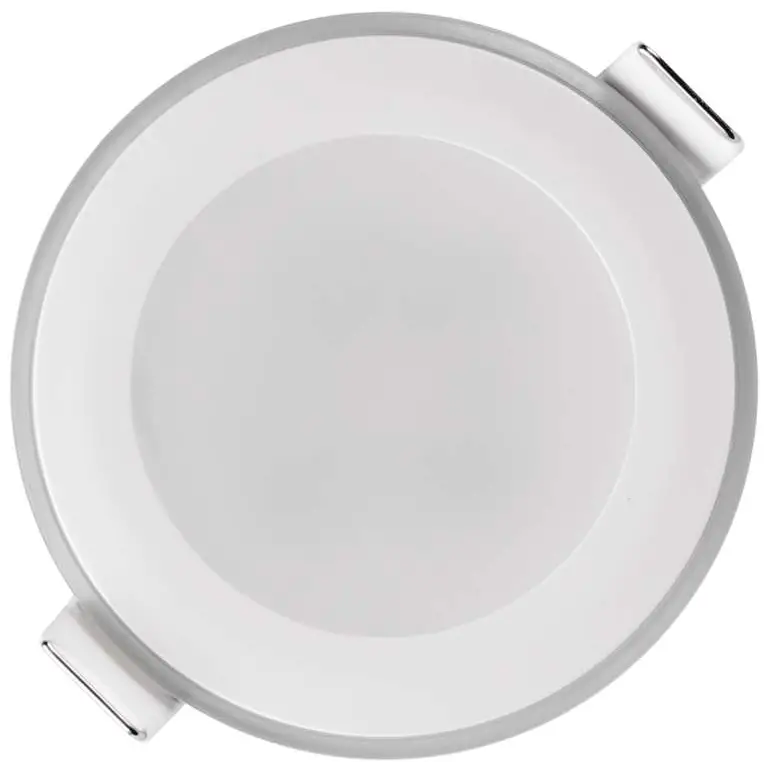

EMOS ZD1311 2-In-1 82mm LED Panel

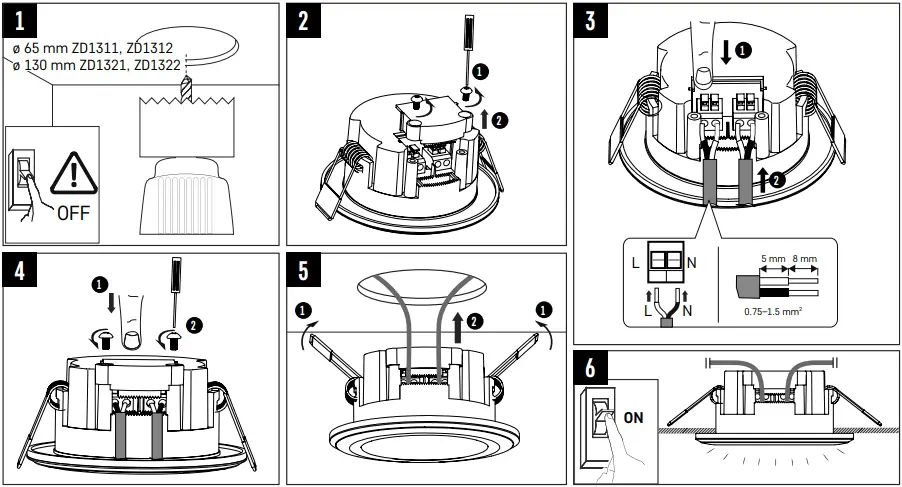

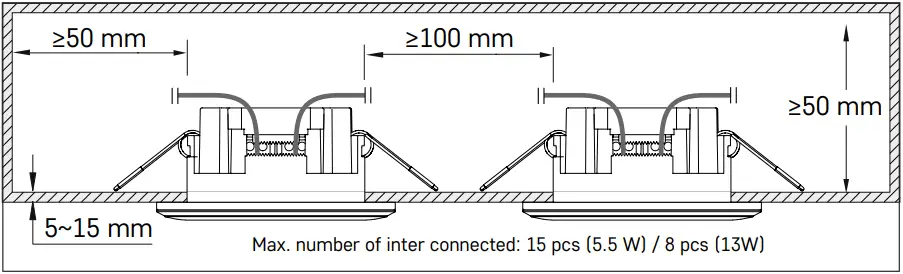

INSTALLATION

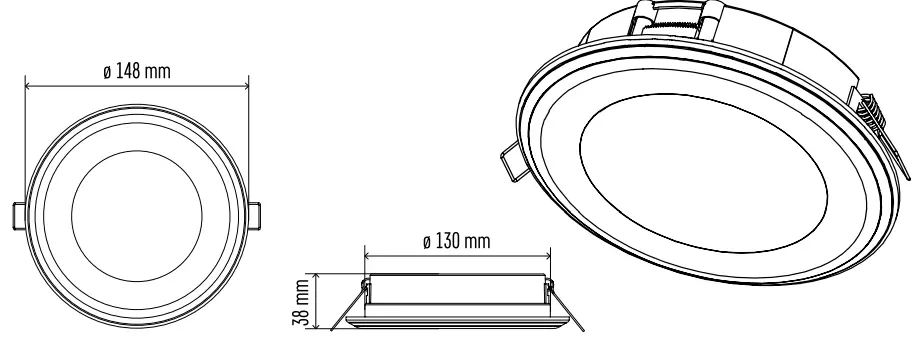

DIMENSION
FEATURES
| Type | CCT | Input Voltage | Power consumption | Ceiling cut-out | Lifespan | Luminous flux | Dimensions |
| ZD1311 | 3 000 K | 220–240 V AC, 50/60 Hz | 5.5 W | 65 mm | 25 000 h | 420 lm | Ø 82 × 44 mm |
| ZD1312 | 4 000 K | ||||||
| ZD1321 | 3 000 K | 13 W | 130 mm | 25 000 h | 1 000 lm | Ø 148 × 38 mm | |
| ZD1322 | 4 000 K |
ZD1311, ZD1312
ZD1321, ZD1322
LED Panel, Recessed
LED luminaire is designed for indoor use to be mounted on a solid base.
Ingress Protection IP20 – for indoor use
Mounting

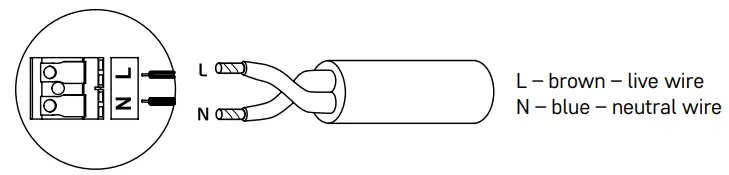

Mount the LED Panel firmly onto a solid basis, for example a wall, a ceiling and like that. Connect the power cord to the mains 230 V~. Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.
WARNING
- LED Panel is suitable entirely for fixed mounting.
- The LED Panel can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.
- Before any manipulation or servicing of the LED Panel disconnect the LED Panel from AC power. This operation can be carried out only by an authorized person.
- In case of any damage to any part of the LED Panel, don’t use it.
- LED chips inside the luminaire are not replaceable.
- Don’t change inner wiring of the LED Panel.
- In case of broken cover don’t use the LED Panel and replace broken cover with new one immediately.
EMOS spol. s r.o. declares that the LED Panel, surface-mounted/recessed is in compliance with the essential requirements and other relevant provisions of Directive. The device can be freely operated in the EU.The Declaration of Conformity can be found at http://www.emos.eu/download.
