ZM5121 LED Panel Surface-Mounted
Instruction Manual
1539063040_31-ZM6122_00_01 148 × 210 mm
Zdroj: 1539051010_31-ZM5121_00_01
ZM5121 ZM5141
ZM5122 ZM5142
ZM5131 ZM5151
ZM5132 ZM5152
ZM6121 ZM6141
ZM6122 ZM6142
ZM6131 ZM6151
ZM6132 ZM6152
LED panel, surface-mounted
White frame
| Order Code | Input Voltage | Power Consumption | Light Color | Life Span | Luminous Flux | Dimensions |

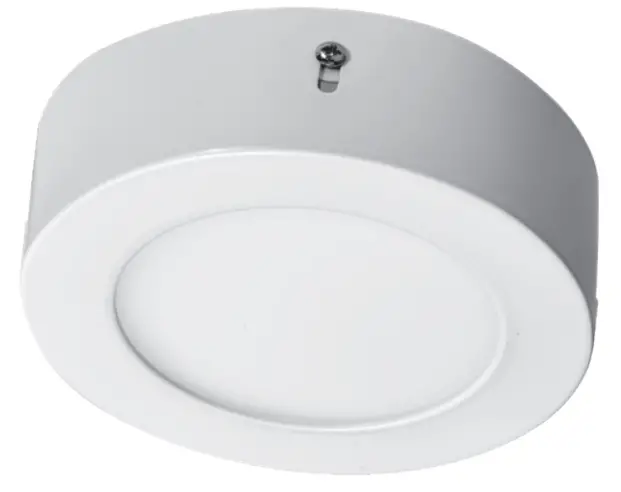

| ZM5121 | 220-240 V AC. 50/60 Hz | 6 W | Warm white | 30 000 h | 450 lm | 0 120 x 40 mm |
| ZM5122 | Neutral white | |||||
| ZM5131 | 220-240 V AC. 50/60 Hz | 12.5 W | Warm white | 30 000 h | 1 000 lm | 0 170 x 40 mm |
| ZM5132 | Neutral white | |||||
| ZM5141 | 220-240 V AC. 50/60 Hz | 18 W | Warm white | 30 000 h | 1 500 lm | 0 224 x 40 mm |
| ZM5142 | Neutral white | |||||
| ZM5151 | 220-240 V AC. 50/60 Hz | 24 W | Warm white | 30 000 h | 2 000 lm | 0 300 x 40 mm |
| ZM5152 | Neutral white |
| Order Code | Input Voltage | Power Consumption | Light Color | Life Span | Luminous Flux | Dimensions |

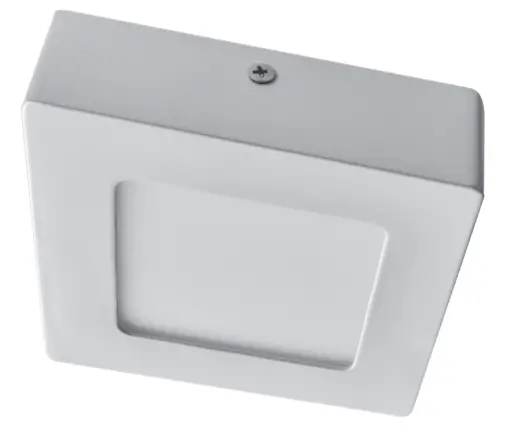

| ZM6121 | 220 240 V AC. 50/60 Hz | 6 W | Warm white | 30 000 h | 450 I’m | 120 x 120 x 40 mm |
| ZM6122 | Neutral white | |||||
| ZM6131 | 220 240 V AC. 50/60 Hz | 12.5 W | Warm white | 30 000 h | 1 000 lm | 170 x 170 x 40 mm |
| ZM6132 | Neutral white | |||||
| ZM6141 | 220 240 V AC. 50/60 Hz | 18 W | Warm white | 30 000 h | 1 500 lm | 225 x 225 x 40 mm |
| ZM6142 | Neutral white | |||||
| ZM6151 | 220 240 V AC. 50/60 Hz | 24 W | Warm white | 30 000 h | 2 000 lm | 300 x 300 x 40 mm |
| ZM6152 | Neutral white |
LED panel, surface-mounted
LED luminaire is designed for indoor use to be mounted on a solid base. Ingress Protection: IP20 for indoor use
Mounting
To ensure protection against injury by electric current, it is necessary to remove the connected testing conductors at the power supply input during installation and replace them with conductors with double or reinforced insulation. Mount the lamp firmly onto a solid basis, for example, a wall, a ceiling, and like that. Connect the power cord to the mains 230 V~. The connecting conductor must not be connected to the mains at the time of installation. This operation can be carried out only by an authorized person.
WARNING
- Luminaire is suitable entirely for fixed mounting.
- The luminaire can be connected only to the electric distribution network, whose installation and protection comply with the applicable standards.
- Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
- In case of any damage to any part of the luminaire, don’t use it.
- LED chips inside the luminaire are not replaceable.
- Don’t change the inner wiring of the luminaire.
- In case of a broken cover don’t use the luminaire and replace the broken cover with a new one immediately.
EMOS spol. s r.o. declares that the LED panel, surface-mounted is in compliance with the essential requirements and other relevant provisions of the Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.
This product contains a light source of energy efficiency class F
Do not dispose of domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed of on landfill, dangerous substances may reach groundwater and subsequently the food chain, which it could affect human health.
