LED Panel Surface-Mounted
ZM5222

LED panel, surface-mounted

www.emos.eu

Contents hide

1 Silver frame

2 LED panel, surface-mounted

3 Documents / Resources

3.1 References

4 Related Posts

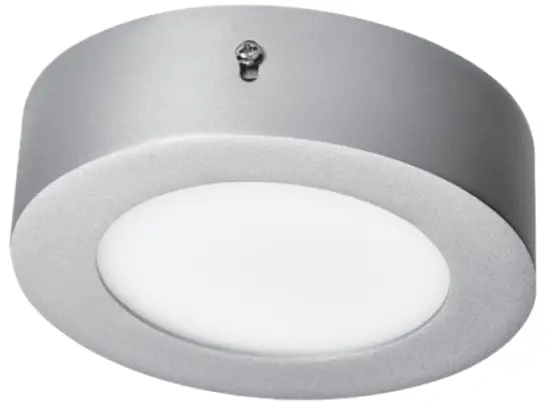

Silver frame

Order Code	Input Voltage	Power Consumption	Light Color	Life Span	Luminous Flux	Dimensions
ZM5222	220–240 V AC, 50/60 Hz	6 W	NEUTRAL WHITE	30 000 h	450 lm	Ø 120 × 40 mm
ZM5232	220–240 V AC, 50/60 Hz	12.5 W		30 000 h	1 000 lm	Ø 170 × 40 mm
ZM5242	220–240 V AC, 50/60 Hz	18 W		30000 h	1500 lm	Ø 224 × 40 mm

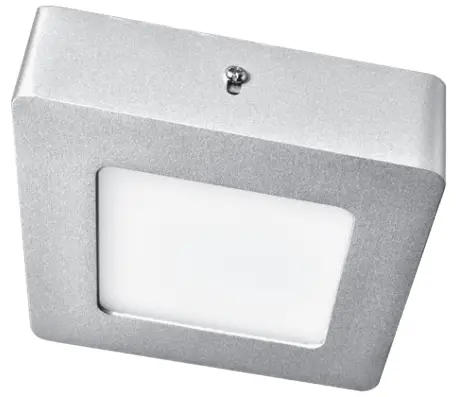

Silver frame

Order Code	Input Voltage	Power Consumption	Light Color	Life Span	Luminous Flux	Dimensions
ZM6222	220–240 V AC, 50/60 Hz	6 W	NEUTRAL WHITE	30 000 h	450 lm	120 × 120 × 40 mm
ZM6232	220–240 V AC, 50/60 Hz	12.5 W		30 000 h	1000 lm	170 × 170 × 40 mm
ZM6242	220–240 V AC, 50/60 Hz	18 W		30000 h	1500 lm	225 × 225 × 40 mm

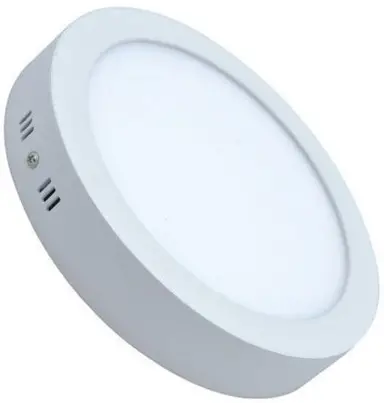

LED panel, surface-mounted

LED luminaire is designed for indoor use to be mounted on a solid base. Ingress Protection IP20 – for indoor use.

Mounting
To ensure protection against injury by electric current, it is necessary to remove the connected testing conductors at the power supply input during installation and replace them with conductors with double or reinforced insulation.
Mount the lamp firmly onto a solid basis, for example, a wall, a ceiling, and like that.
Connect the power cord to the mains 230 V~.
The connecting conductor must not be connected to the mains at the time of installation. This operation can be carried out only by an authorized person.

WARNING

Luminaire is suitable entirely for fixed mounting.
The luminaire can be connected only to the electric distribution network, whose installation and protection comply with the applicable standards.
Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
In case of any damage to any part of the luminaire, don’t use it.
LED chips inside the luminaire are not replaceable.
Don’t change the inner wiring of the luminaire.
In case of a broken cover don’t use the luminaire and replace the broken cover with a new one immediately.

EMOS spol s.r.o. declares that the LED panel, surface-mounted is in compliance with the essential requirements and other relevant provisions of the Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.

ZM5222 / ZM6222
This product contains a light source of energy efficiency class G

ZM5232 / ZM5242 / ZM6232 / ZM6242
This product contains a light source of energy efficiency class F

Do not dispose of domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed on landfills, dangerous substances may reach groundwater and subsequently the food chain, where it could affect human health.
