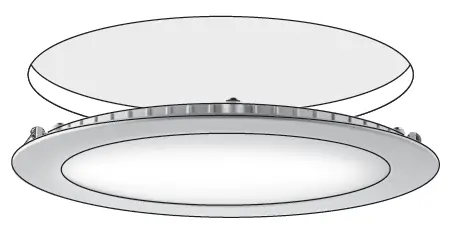

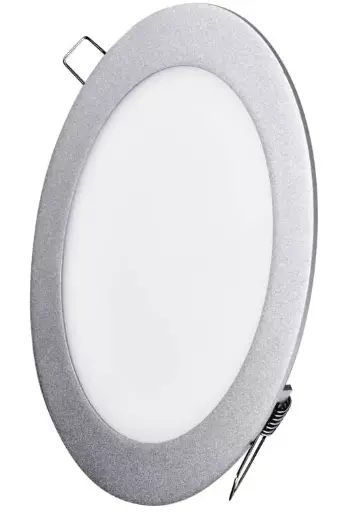

EMOS ZD1222 LED Recessed Panel Luminaire
Silver frame
| Type | Input Voltage | Power Consumption | Light Color | Life Span | Luminous Flux | Dimensions | Ceiling cut-out |
| ZD1222 | 220–240 V AC, 50/60 Hz | 6 W |
NEUTRAL WHITE | 30 000 h | 450 lm | Ø 120 mm | Ø 105 mm |
| ZD1232 | 220–240 V AC, 50/60 Hz | 12.5 W | 30 000 h | 1 000 lm | Ø 175 mm | Ø 155 mm | |
| ZD1242 | 220–240 V AC, 50/60 Hz | 18 W | 30 000 h | 1 500 lm | Ø 225 mm | Ø 205 mm |

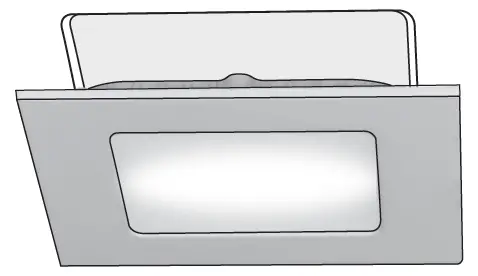

Silver frame
| Type | Input Voltage | Power Consumption | Light Color | Life Span | Luminous Flux | Dimensions | Ceiling cut-out |
| ZD2222 | 220–240 V AC, 50/60 Hz | 6 W | NEUTRAL WHITE | 30 000 h | 450 lm | 120 × 120 mm | 102 × 102 mm |
| ZD2232 | 220–240 V AC, 50/60 Hz | 12.5 W | 30 000 h | 1 000 lm | 170 × 170 mm | 152 × 152 mm | |
| ZD2242 | 220–240 V AC, 50/60 Hz | 18 W | 30 000 h | 1 500 lm | 225 × 225 mm | 202 × 202 mm |
LED panel, Recessed
LED luminaire is designed for indoor use to be mounted on a solid base. Ingress Protection IP20 – for indoor use
Mounting
To ensure protection against injury by electric current, it is necessary to remove the connected testing conductors at the power supply input during installation and replace them with conductors with double or reinforced insulation. Mount the lamp firmly onto a solid basis, for example a wall, a ceiling and like that. Connect the power cord to the mains 230 V~. Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.
WARNING
- Luminaire is suitable entirely for fixed mounting.
- The luminaire can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.
- Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
- In case of any damage to any part of the luminaire, don’t use it.
- LED chips inside the luminaire are not replaceable.
- Don’t change inner wiring of the luminaire.
- In case of broken cover don’t use the luminaire and replace broken cover with new one immediately. EMOS spol s.r.o. declares that the LED panel, recessed is in compliance with the essential requirements and other relevant provisions of Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.
This luminaire is not suitable for covering with insulation material.
ZD1222 / ZD2222
This product contains a light source of energy efficiency class G.
ZD1232 / ZD1242 / ZD2232 / ZD2242
This product contains a light source of energy efficiency class F.
Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed on landfill, dangerous substanoes may reach groundwater and subsequently food chain, where it could affect human health.
Servis: EMOS SI, d.o.o., Rimska cesta 92, 3311
Tel: +386 8 205 17 21
E-mail: [email protected]
