ZD1124 Downlights Rotund LED
User Manual
ZD1124 ZD1125 ZD1134 ZD1135
ZD1144 ZD1145 ZD1154 ZD1155
LED Panel, Recessed
www.emos.eu

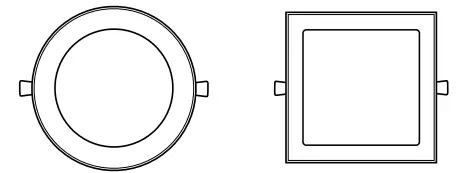

ZD1124 Downlights Rotund LED

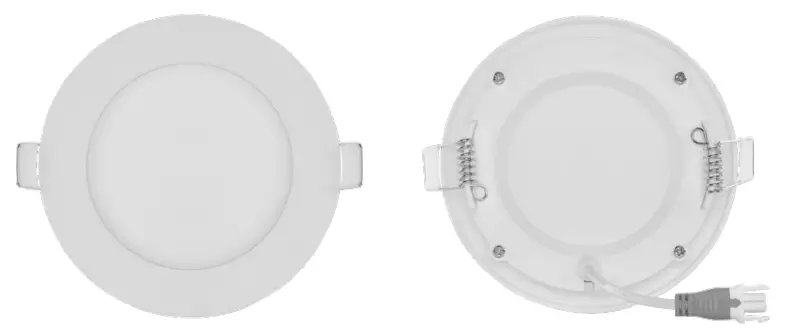

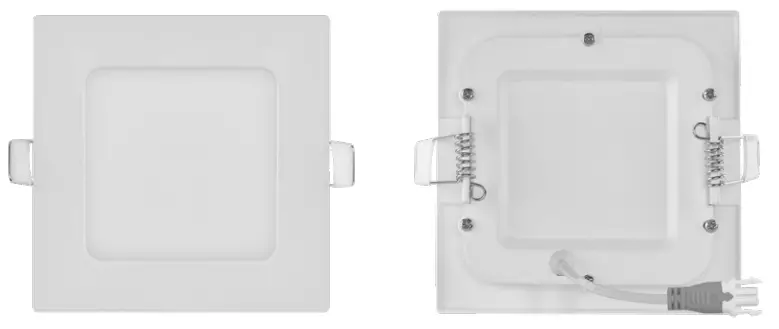

| Order Code | Input Voltage | Power Consumption | Light Color | Life Span | Luminous Flux | Dimensions | Body color |
| ZD1124 | 220-240 V AC, 50/60 Hz | 7 W | Warm white | 30 000 h | 450 lm | 0 120 x 21 mm | White |
| ZD1125 | 220-240 V AC, 50/60 Hz | 7 W | Neutral white | 30 000 h | 480 lm | 0 120 x 21 mm | White |
| ZD1134 | 220-240 V AC, 50/60 Hz | 12.5 W | Warm white | 30 000 h | 1 000 lm | 0 170 x 21 mm | White |
| ZD1135 | 220-240 V AC, 50/60 Hz | 12.5 W | Neutral white | 30 000 h | 1 050 lm | 0 170 x 21 mm | White |
| ZD1144 | 220-240 V AC, 50/60 Hz | 18 W | Warm white | 30 000 h | 1 500 lm | 0 225 x 21 mm | White |
| ZD1145 | 220-240 V AC, 50/60 Hz | 18 W | Neutral white | 30 000 h | 1 600 lm | 0 225 x 21 mm | White |
| ZD1154 | 220-240 V AC, 50/60 Hz | 25 W | Warm white | 30 000 h | 2 000 lm | 0 300 x 21 mm | White |
| ZD1155 | 220-240 V AC, 50/60 Hz | 25W | Neutral white | 30 000 h | 2 100 lm | 0 300 x 21 mm | White |
| Order Code | Input Voltage | Power Consumption | Light Color | Life Span | Luminous Flux | Dimensions | Body color |
| ZD2124 | 220-240 V AC, 50/60 Hz | 7 W | Warm white | 30 000 h | 450 lm | 120 x 120 x 21 mm | White |
| ZD2125 | 220-240 V AC, 50/60 Hz | 7 W | Neutral white | 30 000 h | 480 lm | 120 x 120 x 21 mm | White |
| ZD2134 | 220-240 V AC, 50/60 Hz | 12.5 W | Warm white | 30 000 h | 1 000 lm | 170 x 170 x 21 mm | White |
| ZD2135 | 220-240 V AC, 50/60 Hz | 12.5 W | Neutral white | 30 000 h | 1 050 lm | 170 x 170 x 21 mm | White |
| ZD2144 | 220-240 V AC, 50/60 Hz | 18 W | Warm white | 30 000 h | 1 600 lm | 225 x 225 x 21 mm | White |
| ZD2145 | 220-240 V AC, 50/60 Hz | 18 W | Neutral white | 30 000 h | 1 600 lm | 225 x 225 x 21 mm | White |
| ZD2154 | 220-240 V AC, 50/60 Hz | 25 W | Warm white | 30 000 h | 2 000 lm | 300 x 300 x 21 mm | White |
| ZD2155 | 220-240 V AC, 50/60 Hz | 25W | Neutral white | 30 000 h | 2 100 lm | 300 x 300 x 21 mm | White |
LED Panel, Recessed
LED luminaire is designed for indoor use to be mounted on a solid base.
Ingress Protection: IP20 – for indoor use (IP40 – on diffuser side only).
Mounting
To ensure protection against injury by electric current, it is necessary to remove the connected testing conductors at the power supply input during installation and replace them with conductors with double or reinforced insulation.

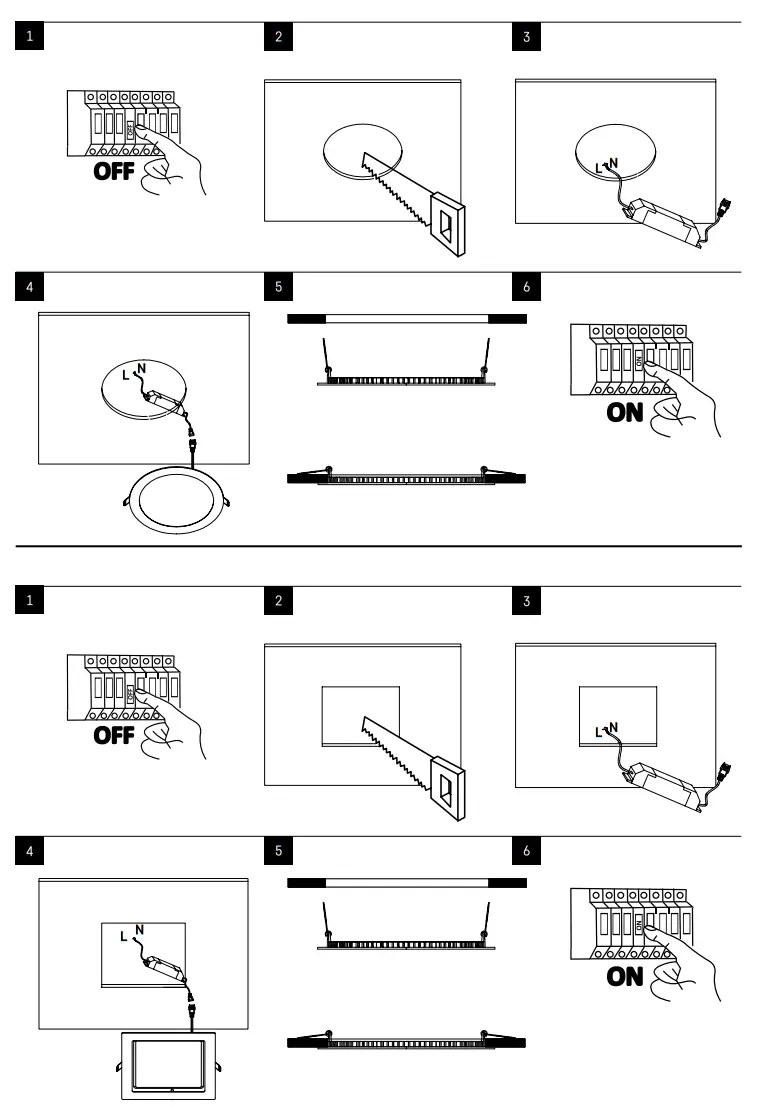

Mount the lamp firmly onto a solid basis, for example a wall, a ceiling and like that.
Connect the power cord to the mains 230 V~.
Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.
WARNING
- Luminaire is suitable entirely for fixed mounting.
- The luminaire can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.
- Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
- In case of any damage to any part of the luminaire, don’t use it.

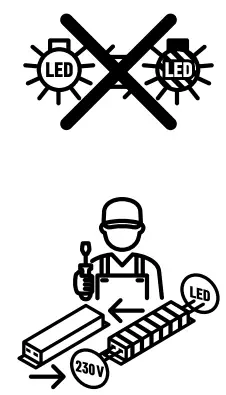

- LED chips inside the luminaire are not replaceable.
- Don’t change inner wiring of the luminaire.
- In case of broken cover don’t use the luminaire and replace broken cover with new one immediately.
EMOS spol. s r.o. declares that the LED panel, recessed is in compliance with the essential requirements and other relevant provisions of Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.
This product contains a light source of energy efficiency class F
This luminaire is not suitable for covering with insulation material.
Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed on landfi ll, dangerous substanoes may reach groundwater and subsequently food chain, where it could affect human health.
