ZS2540 LED Floodlight SMD

ZS2510\ZS2520
ZS2530\ ZS2540

Type	Input Voltage	Max. Power	Life Span	Luminous Flux	Dimensions	Weight	Maximum ProjectedArea
ZS2510	220–240 VAC50 Hz	10.5 W	25 000 h	950 lm	114 × 99 × 51	0,201 kg	0,01 m2
ZS2520		21 W	25 000 h	1 900 lm	147 × 123 × 55	0,388 kg	0,02 m2
ZS2530		31 W	25 000 h	2 800 lm	178 × 148 × 55	0,530 kg	0,03 m2
ZS2540		51 W	25 000 h	4 600 lm	208 × 170 × 55	0,733 kg	0,03 m2

LED reflector is designed for indoor and outdoor use to be mounted on firm ground.
Ingress Protection: IP65 – for outdoor use

Mounting

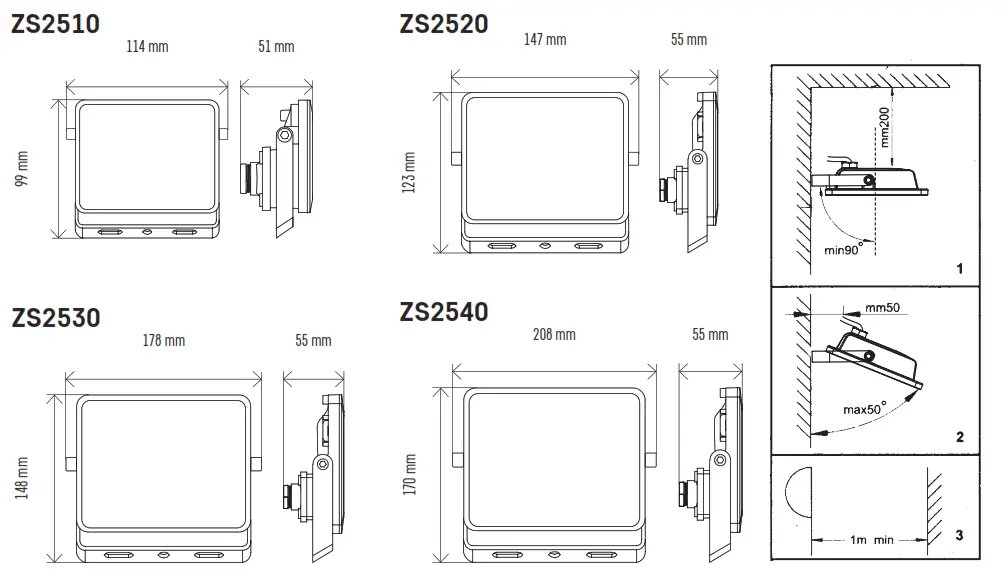

Mount the lamp firmly onto a solid basis, for example, a wall (fig. 1, 2, 3).
Installation height 2.3–3 m.
Connect a power cable for connection to a 220–240 V~ power network.
The cable must not be plugged into the power network during the installation of the spotlight.
Direct the reflector as shown in fig. 1 and 2.

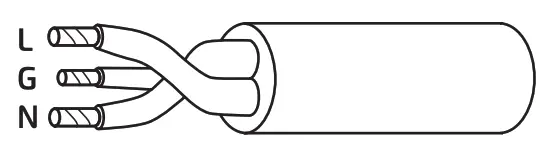

L – brown – live wire
G – green&yellow – earth wire (ground)
N – blue – neutral wire

Maintenance instructions

Before maintenance, switch off the lamp and wait until it is cooled.
Clean it with a soft moistened cloth.
Never submerge the lamp in water or other liquids.
During maintenance, observe general rules for occupational safety, and be very careful.

WARNING

The reflector is designed entirely for firm mounting.
Before connecting to the 220–240 V~ make sure that the connecting wire is not under voltage. This operation can be carried out only by an authorized person.
Respect a minimum distance of 1m between the appliance and the object or surface which you wish to lighten.
If you place the reflector below the roof, keep the minimum 0.2 m distance measured from the upside of the reflector to the bottom of the roof.
Do not use the reflector without the protection glass.
The protection from dangerous contact voltage is ensured by „earthing“.
The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
Terminal block not included. Installation may require advice from a qualified person.
Terminal block for connection of power supply: 3 terminals screw-less type, rated for cross-section range including 1 mm 2 and voltage min 230 V.
Type Z attachment.
Caution, risk of electric shock.

EMOS spol s.r.o. declares that the ZS2510, ZS2520, ZS2530, and ZS2540 is in compliance with the essential requirements and other relevant provisions of the Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.
This product contains a light source of energy efficiency class.
Do not throw electric appliances into unsorted municipal waste, use collection points of sorted waste! Dangerous substances from electric appliances deposited in landfills can leak into underground waters, reach the food chain and damage your health and well-being. For actual information about collection points, contact the local authorities.

www.emos.eu
