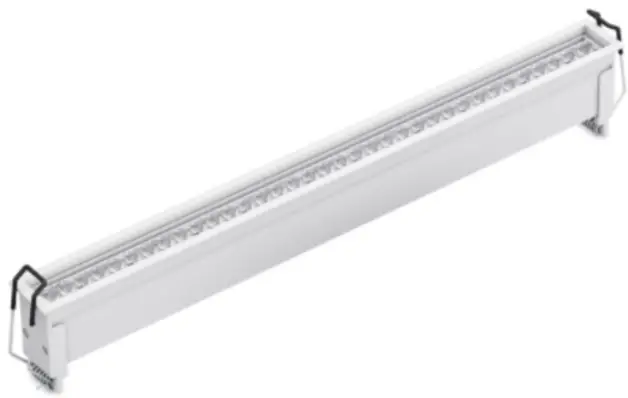

luminii Stenos Downlight Instruction Manual
IMPORTANT SAFETY INSTRUCTIONS!
WHEN INSTALLING OR USING THIS TRACK SYSTEM, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING:
A. READ ALL INSTRUCTIONS.
B. DO NOT INSTALL THIS TRACK IN DAMP OR WET LOCATIONS.
C. DO NOT INSTALL ANY PART OF THE TRACK SYSTEM LESS THAN 5 FEET ABOVE THE FLOOR.
D. DO NOT INSTALL ANY LUMINAIRE ASSEMBLY CLOSER THAN 6 INCHES FROM ANY CURTAIN, OR SIMILAR COMBUSTIBLE MATERIAL.
E. DISCONNECT ELECTRICAL POWER BEFORE ADDING TO OR CHANGING THE CONFIGURATION OF THE TRACK.
F. DO NOT ATTEMPT TO ENERGIZE ANYTHING OTHER THAN LIGHTING TRACK LUMINAIRES ON THE TRACK. TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT ATTEMPT TO CONNECT POWER TOOLS, EXTENSION CORDS, APPLIANCES, AND THE LIKE TO THE TRACK.
Stenos Installation Instructions
Surface Track
Please read all instructions prior to installation and keep for future reference!
- PRODUCT TO BE INSTALLED BY A QUALIFIED ELECTRICIAN
- USE ONLY WITH CLASS 2 POWER UNIT
- 24 VOLTS DC
- SUITABLE FOR DRY LOCATIONS ONLY
- SURFACE TRACK IS SUITABLE FOR UNDER CABINET INSTALLATIONS

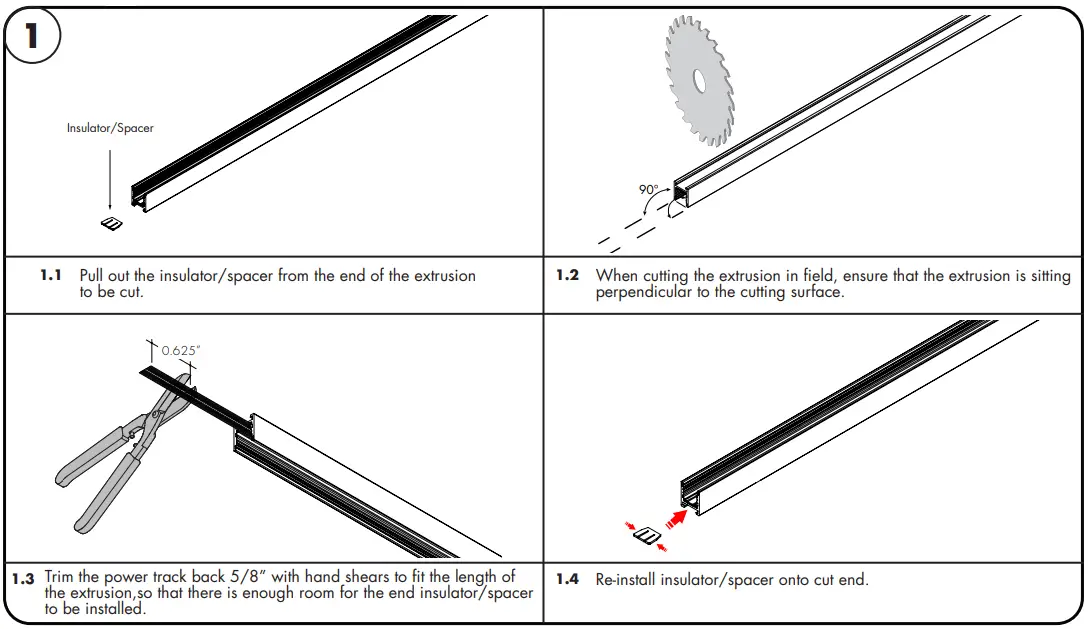

Field Cutting

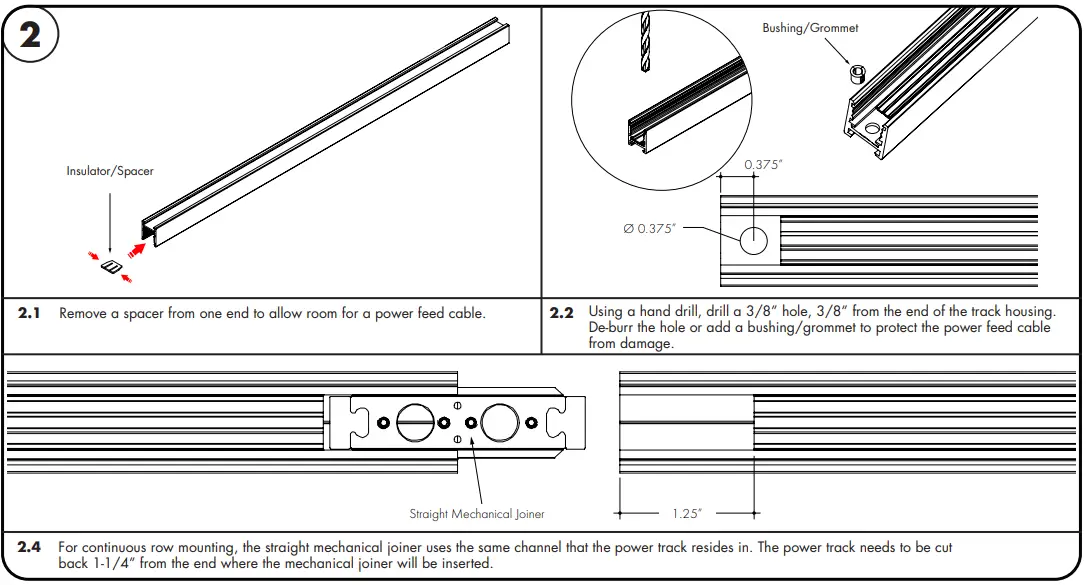

Track Preparation for having Power backfed

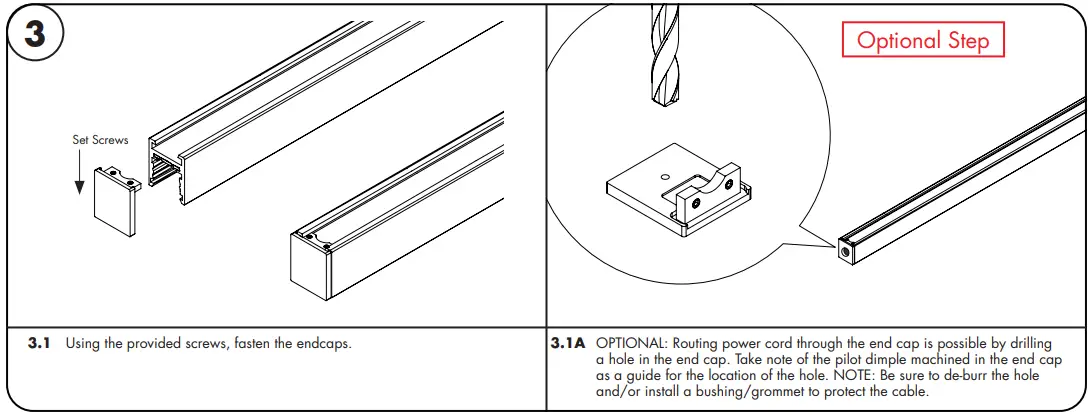

Endcap Installation

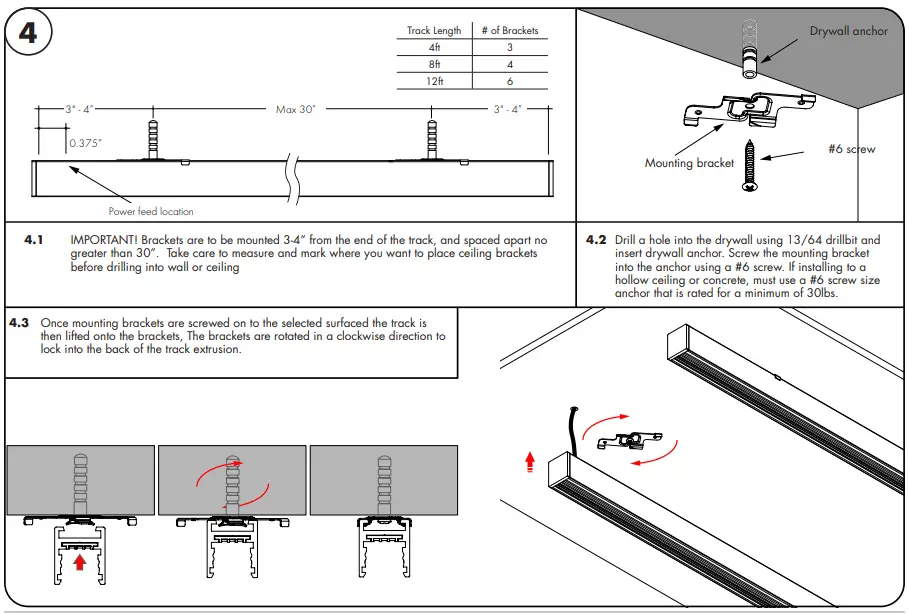

Mounting of Track

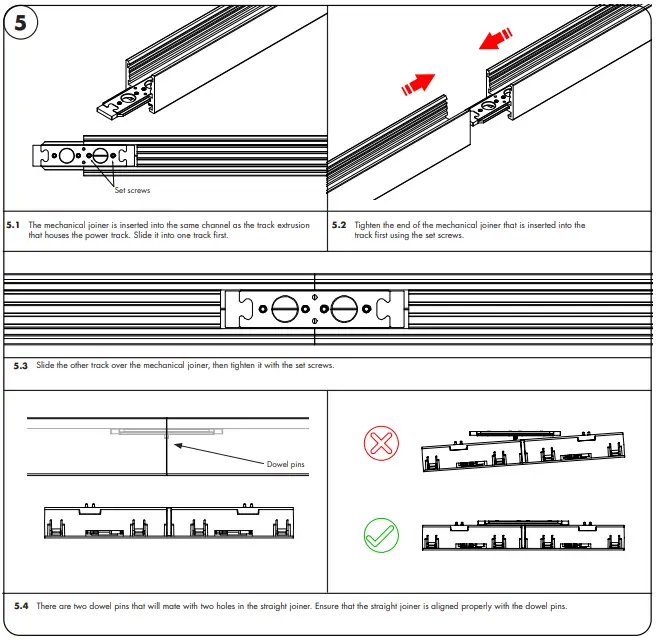

Continuous Row Mounting

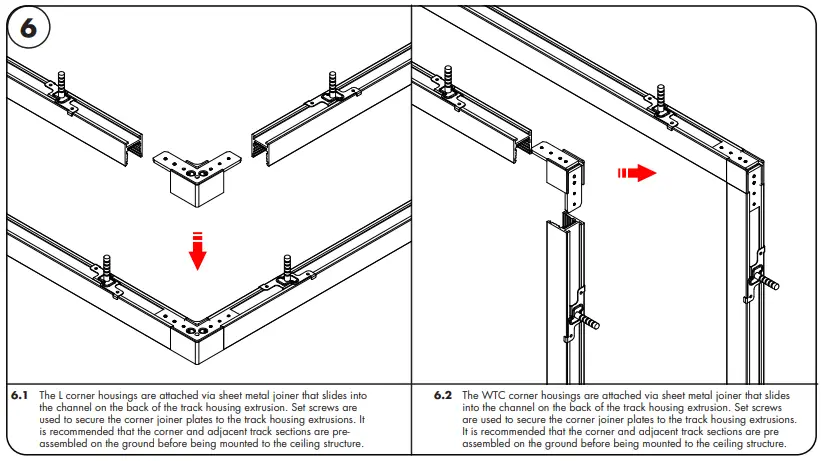

L and WTC Corner Housings

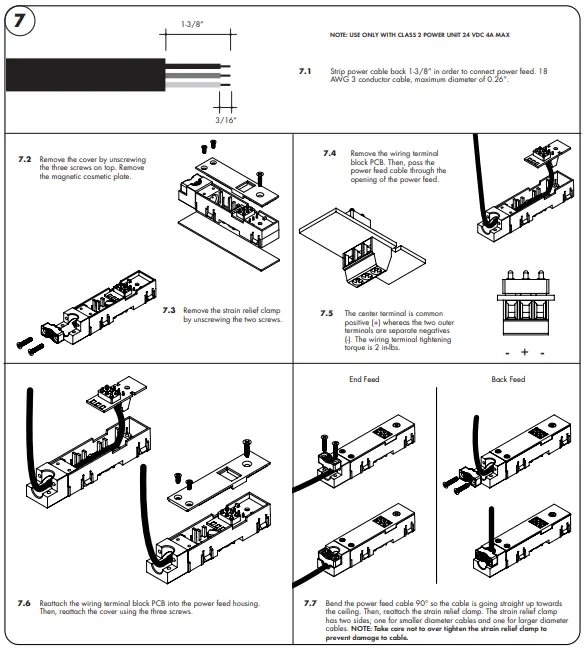

Power Feed Install

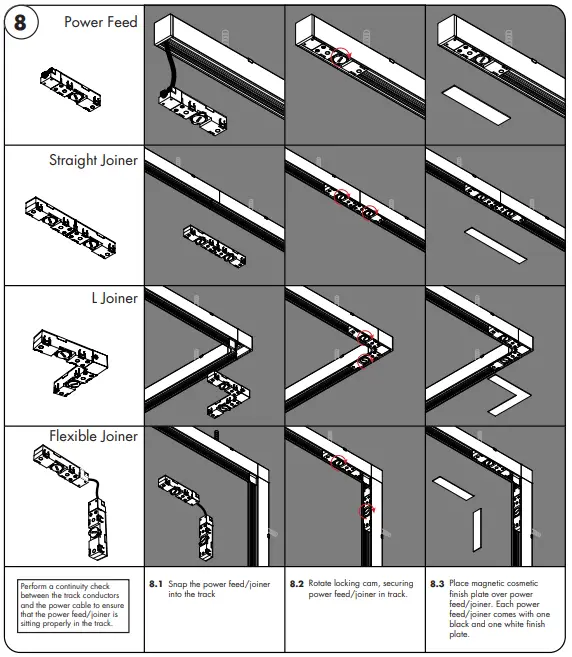

Electrical Joiner Power Feed & Install

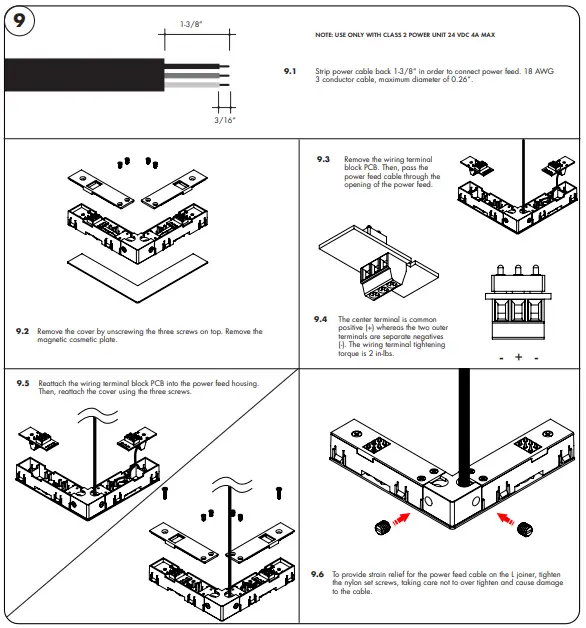

L Joiner Power Feed Install To convert a standard L Joiner corner into a power feed use the following steps.

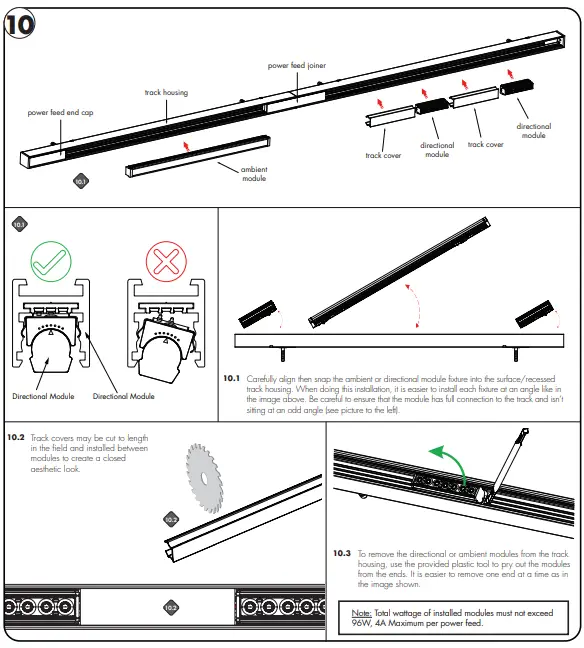

Module and Cover Installation
LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE
