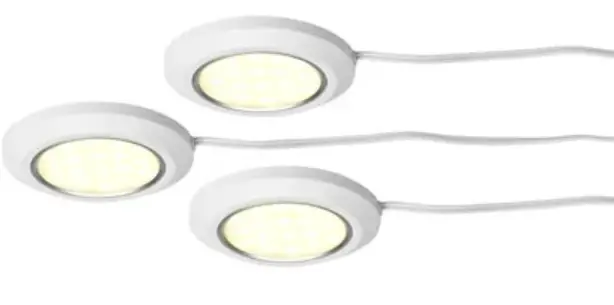

anslut 019918 LED Downlights
OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original in-structions)
Jula reserves the right to make changes.
For latest version of operating instructions, see www.jula.com
JULA AB, BOX 363, SE-532 24 SKARA
2022-02-02
© Jula AB
SAFETY INSTRUCTIONS
Carefully read the instructions before use!
- Save these instructions for future reference.
- Check that all connections are properly made before switching on the product.
- If the product does not work, check that the circuit is supplied with voltage.
- Keep children at a safe distance from the product when it is in use.
- If the permitted maximum voltage is exceeded this can damage the product, or reduce its useful life.
- If the permitted maximum temperature is exceeded this can damage the product, or reduce its useful life.
 | Read the instructions. |
 | Safety class II. |
CE
| Approved in accordance with the relevant directives. |
 | Recycle discarded product in accordance with local regulations. |
TECHNICAL DATA
| Rated voltage | 230 V ~ 50 Hz |
| Output | 3 x 1.5 W |
| Protection rating | IP20 |
| No. of LEDs | 3 x 18 |
| Colour temperature | 2700 K |
| Luminous flux | 190 lm |
| Size | Ø 65 x 6 mm |
| Cord length Transformer – switch | 1500 mm |
| Cord length Switch – junction box | 500 mm |
| Cord length Junction box – LED disc | 1000 mm |
| Operating temperature | -20 to 40°C |
| Storage temperature | -20 to 45°C |
USE
- Check that all connections are properly made before switching on the product.
- If the product does not work, check that the circuit is supplied with voltage.
INSTALLATION
FIG. 1
REMOVAL
- Remove the ring with tweezers.
FIG. 2
- Open the inner ring with the tweezers.
FIG. 3
- Open the second one.
FIG. 4
- Open the third one and press loose the cover.
FIG. 5
- Separate the outgoing wire from the circuit board by melting the solder with a soldering iron.
FIG. 6
- Test the light source by connecting to 12 VDC.
FIG. 7
