Anslut 015777 Spot Light Led Instruction Manual

Anslut 015777 Spot Light Led Instruction Manual

anslut logoDanger icon Item no.015777 anslut 015777 Spot Light LED

SPOTLIGHTS LED
OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference.

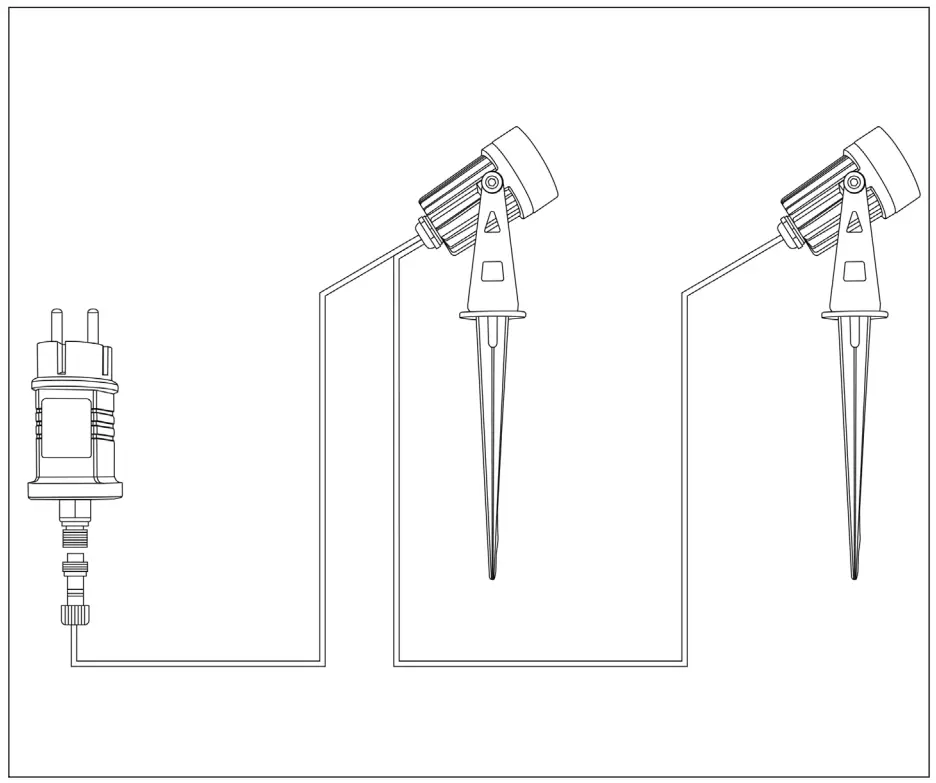

(Translation of the original instructions).anslut 015777 Spot Light LED - fig

SAFETY INSTRUCTIONS

  • Do not connect the product to the mains while still in the pack.
  • For outdoor use.
  • Check that no light sources are damaged.
  • No parts of the product can be replaced or repaired. The whole product must be discarded if any part is damaged.
  • Do not use sharp or pointed objects during assembly.
  • Do not subject the power cord or wires to mechanical stress.
  • This is not a toy. Be careful if using the product near children.
  • Disconnect the transformer from the PowerPoint when the product is not in use.
  • This product must never be connected directly to a power point without the transformer.
  • This product must only be connected to the supplied transformer.
  • The product is not intended to be used as general lighting.
  • Recycle products that have reached the end of their useful life according to local regulations.

WARNING
The string of lights may only be used if all seals are fitted correctly.

SYMBOLS

CE SYMBOLApproved as per applicable directives.
anslut 015777 Spot Light LED - iconClass III.
WEE-Disposal-icon.pngRecycle discarded products in accordance with local regulations.

TECHNICAL DATA

Rated voltage6 V DC/ 230 V – 50 Hz
Output2x3W
Protection ratingIP44
Color temperature3000 K
Luminous flux270 I’m
Color rendering indexRA > 80
Cord length4 + 2 m

USE
CONNECTION

  1. Put the lights in the required place.
  2. Route the power cord so that there is no risk of it being exposed to a lawn mower or other damage
  3. Connect the power cord to the transformer.
  4. Plug the plug into the mains.

Care for the environment!
Recycle discarded products in accordance with local regulations.
Jula reserves the right to make changes. For latest version of operating instructions, see www.jula.com
WEE-Disposal-icon.pngJULA AB, BOX 363, SE-532 24 SKARA
2022-02-17 © Jula AB
