JULA 015674 Position Light LED Instruction Manual
Operation Instruction
Important! Read the user instructions before use. Save them for future reference.
(Translation of the original instructions)
Safety Instruction
- Read these instructions carefully before installation and save them for future reference.
- Always comply with the applicable laws and regulations for the installation and use of vehicle lights.
SYMBOLS
- Read the instructions.
- Approved in accordance with the relevant directives.
- Recycle discarded product in accordance with local regulations.
Technical Data
- Rated voltage : 9 — 36 VDC
- Light source LED
- E-approved: Yes
- Cord length: 1.5m
- Size: D40 x $125 mm
- Weight: 270 g
- Safety class: IP68
Description

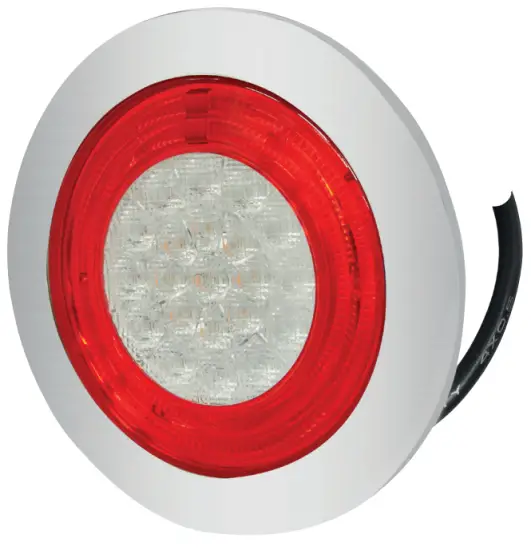

Round combination tail light with two-colour lens and chrome ring. Adapted for recessed installation. E-approved.
Cable colour coding
- Black wire: position light (+)
- White wire: earth (-)
- Red wire: brake light (+)
- Yellow wire: indicator (+)

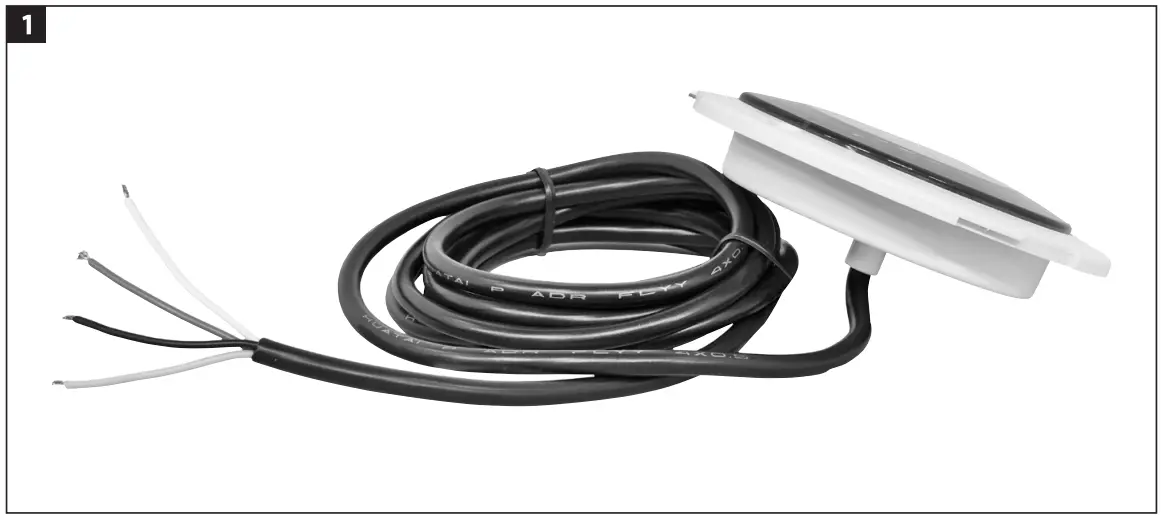

FIG. 1
Installation
- Prepare a hole with a diameter of 90 mm for the recessed back piece.
- Drill the three holes to fasten with screws.

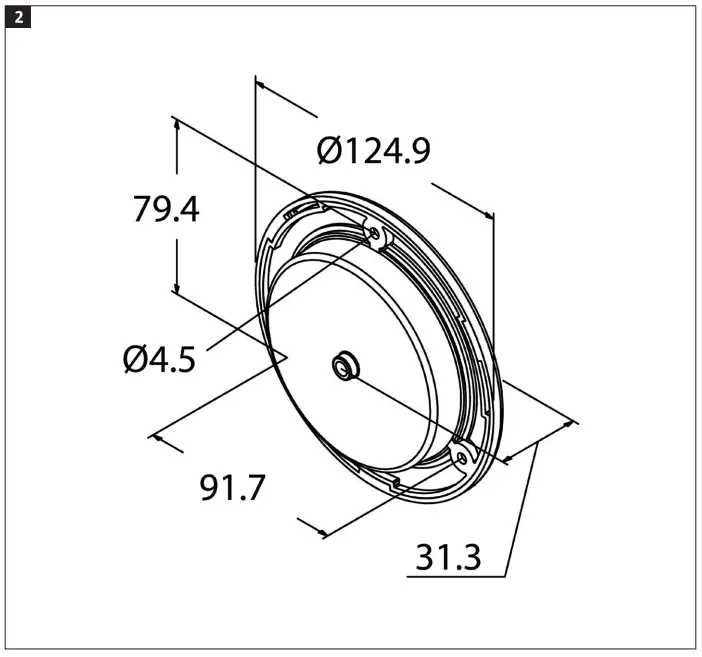

For other sizes, see illustration.
FIG. 2

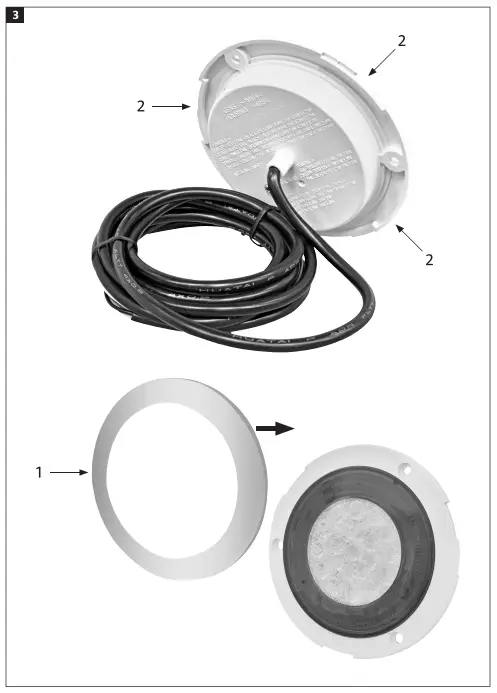

- Fit the cover ring (1) in the three slots (2) and twist firmly in place clockwise.
FIG. 3
Care for the environment!
Recycle discarded product in accordance with local regulations.
