Item no. 015674
POSITION LIGHT LED
OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions)
Care for the environment!
Recycle discarded products in accordance with local regulations.
Jula reserves the right to make changes. For the latest version of operating instructions, see www.jula.com
JULA AB, BOX 363, SE-532 24 SKARA
2022-02-02
© Jula AB
SAFETY INSTRUCTIONS
- Read these instructions carefully before installation and save them for future reference.
- Always comply with the applicable laws and regulations for the installation and use of vehicle lights.
SYMBOLS
| Read the instructions. |
 | Approved in accordance with the relevant directives. |
 | Recycle discarded products in accordance with local regulations. |
TECHNICAL DATA
| Rated voltage | 9— 36 VDC |
| Light source | LED |
| E-approved | Yes |
| Cord length | 1.5 m |
| Size | D40 x ∅125 mm |
| Weight | 270 g |
| Safety class | IP68 |
DESCRIPTION

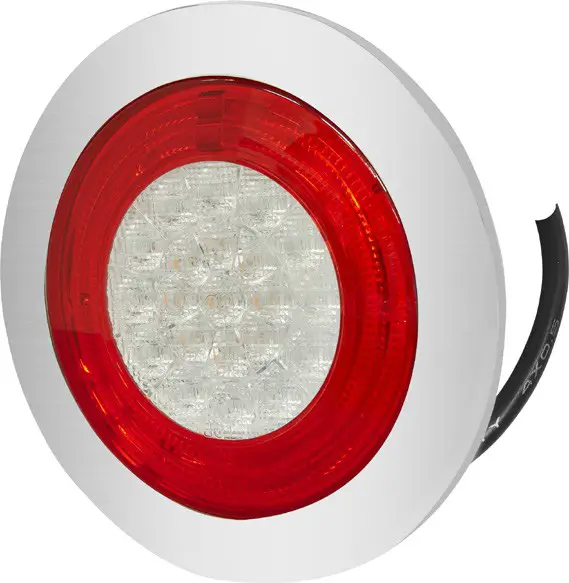

Round combination tail light with two-color lens and chrome ring. Adapted for recessed installation. E-approved.

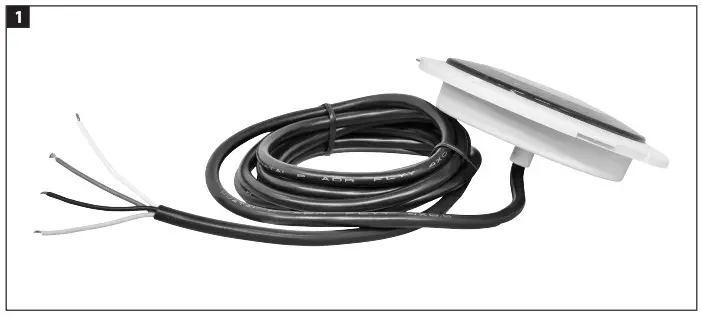

Cable color coding Black wire: position light (+) White wire: earth (-) Red wire: brake light (+) Yellow wire: indicator (+) FIG. 1
INSTALLATION
- Prepare a hole with a diameter of 90 mm for the recessed back piece.

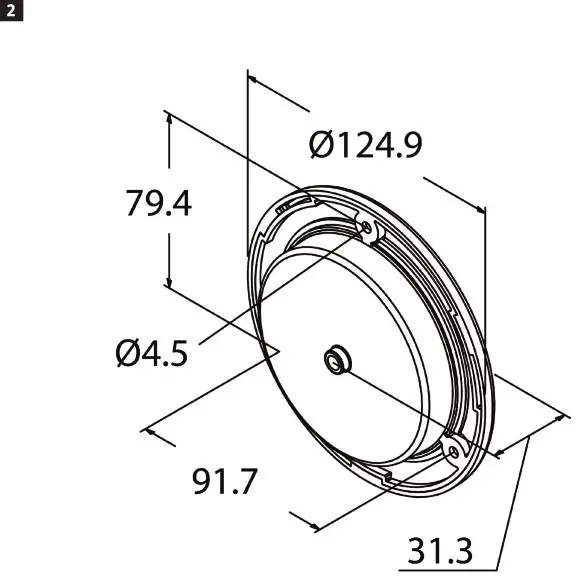

- Drill the three holes to fasten with screws. For other sizes, see illustration. FIG. 2

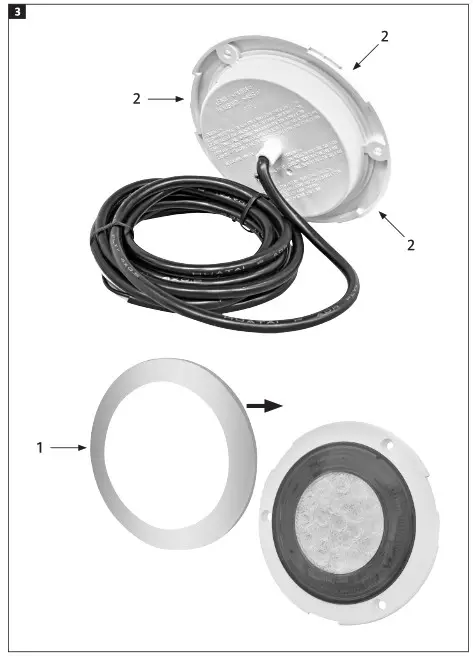

- Fit the cover ring (1) in the three slots (2) and twist firmly in place clockwise. FIG. 3
