Hamron 014896 Led Strip Light Instruction Manual

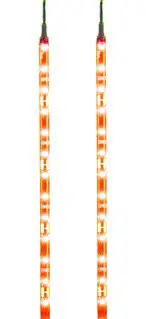

014896 LED Strip Light
Instruction Manual

OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference.
(Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our customer service.
www.jula.com

Manufacturer
Jula AB, Box 363, 532 24 SKARA
For the latest version of operating instructions, see www.jula.com
2020-12-21
© Jula AB
Care for the environment!
Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority’s recycling station.

SAFETY INSTRUCTIONS

WARNING!

• Do not use the product if it can in any way put the road safety of the vehicle at risk. Do not point the light at the driver or out of the vehicle. The buyer is responsible for installing and using the product as it is intended to be used and in accordance with the rules and regulations, and laws, concerning vehicle lights.
• The manufacturer cannot accept liability for any damage resulting from illegal or unintended use.

SYMBOLS

	Read the instructions.
	Approved in accordance with the relevant directives.
	Recycle discarded products in accordance with local regulations.

TECHNICAL DATA

DESCRIPTION

• LED strips 2x.
• Bright, surface-mounted (SMD) LEDs.
• Can be cut to the required length.
• Bendable and flexible silicone rubber core.
• Self-adhesive – 3M foam rubber tape on the back.
• Simple mounting – pull off the protective film and press it in place.
• Suitable for both internal and external use.

MOUNTING

1. Carefully clean the surface on which the product is to be mounted from oil residue and other impurities.
2. Pull off the protective film from the back of the product and apply the 3M foam rubber tape on the mounting surface. Press on firmly to fasten the tape. The product bends to the shape of the surface.

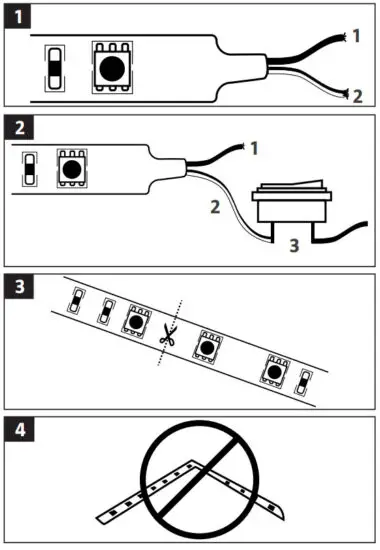

3. Connect the black wire to the chassis (earth) and the black/white wire to +12V on the vehicle, either by connecting to an ignition switch circuit (fig. 1) or a separate switch (fig. 2).
   FIG. 1
   1. Black wire – chassis (earth).
   2. Black/white wire – ignition switch circuit.
   FIG. 2
   1. Black wire – chassis (earth)
   2. Black/white wire
   3. Constant 12 V (not ignition switch)
4. Cut to the right length: the product must only be cut at the points marked with a scissor symbol.
   FIG. 3
   NOTE:
   • The product must not be folded and cannot be mounted in sharp corners.
   FIG. 4
   • Do not connect the product directly to the vehicle battery.
