HAMRON 011674 LED Strip Light Instruction Manual
SAFETY INSTRUCTIONS
Save these instructions for future reference.
WARNING!
- Do not use the product if it can in any way put the road safety of the vehicle at risk.
- Do not point the light at the driver or out from the vehicle. The buyer is responsible for installing and using the product as it is intended to be used and in accordance with the rules and regulations, and laws, concerning vehicle lights.
- The manufacturer cannot accept liability for any damage resulting from illegal or unintended use.
SYMBOLS
 | Read the instructions. |
 | Approved in accordance with the relevant directives. |
 | Recycle discarded product in accordance with local regulations. |
 | Can be cut |
 | Self-adhesive |
 | For 12 V |
 | Water-resistant |
TECHNICAL DATA
| Output | 18×0.2 W |
| Cable length | 100 cm |
| Voltage | 12 V |
| LED strips length | 30 cm |

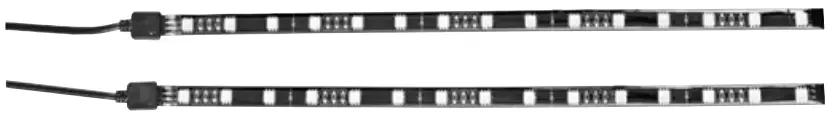

DESCRIPTION
- Plug
- LED strips 30 cm
- Plug
- Power switch
- Colour selector
- Sequence selector
FIG. 1
SPECIFICATIONS
- 2 LED strips 30 cm
- Bright RGB LEDs
- Line mounted control unit with 15 colour options
- 6 sequences in each colour option
- Can be cut to required length
- Self-adhesive — 3M foam rubber tape on back
- Simple mounting — pull off the protective film and press in place
- For 12 VDC
- Ideal for indoor installation
USE
- Choose a suitable place to mount and cut the LED strip if necessary to the required length.
- Remove the protective film and fasten the LED strip in the required place.
- Plug the plug into the 12 V socket in the car.
NOTE:

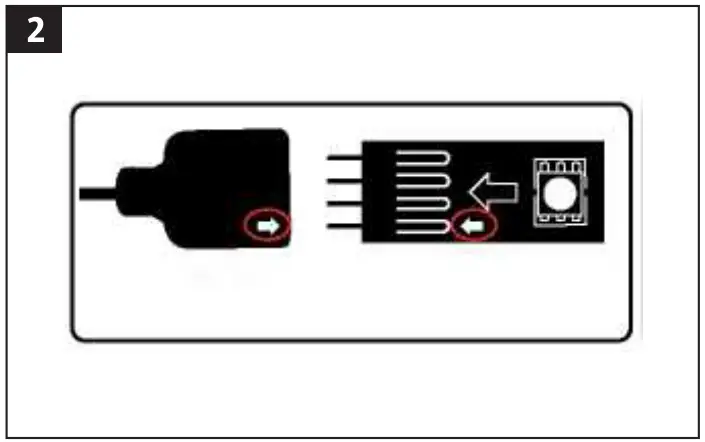

- The LED strip only works when the plug connectors are connected with the arrows opposite each other.
FIG. 2

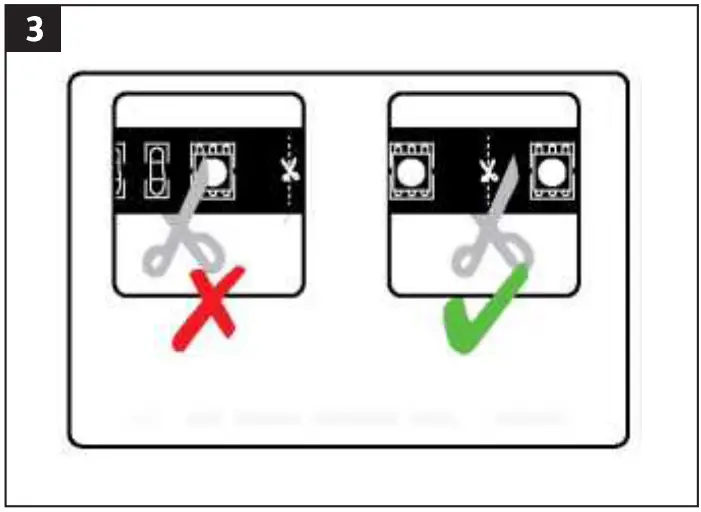

- The LED strip can only be cut to the required length at the markings.
FIG. 3
Important! Read the user instructions carefully before use. Save them for future reference. Jula reserves the right to make changes. For latest version of operating instructions, see www.jula.com
Care for the environment! Recycle discarded product in accordance with local regulations.
