Hamron 016252 Light Bar LED Instruction Manual
Care for the environment!
Recycle discarded product in accordance with local regulations.
TECHNICAL DATA
| Model/output | 120 W |
| LEDs | 40 *3 W |
| Luminous flux | 108001m |
| Colour temperature | 6000 K |
| Protection rating | IP67 |
| Input voltage | 9-32 VDC |
| Life span | 30000 hours |
| Width | 559 mm |
| Height | 75.5 mm |
| Depth | 84 mm |
INSTALLATION

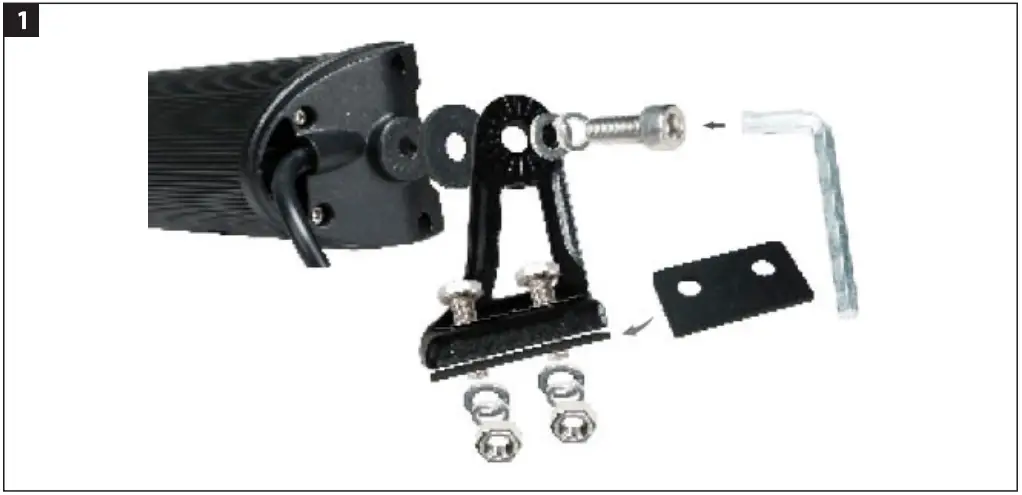

FITTING THE SIDE ATTACHMENT
FIG. 1

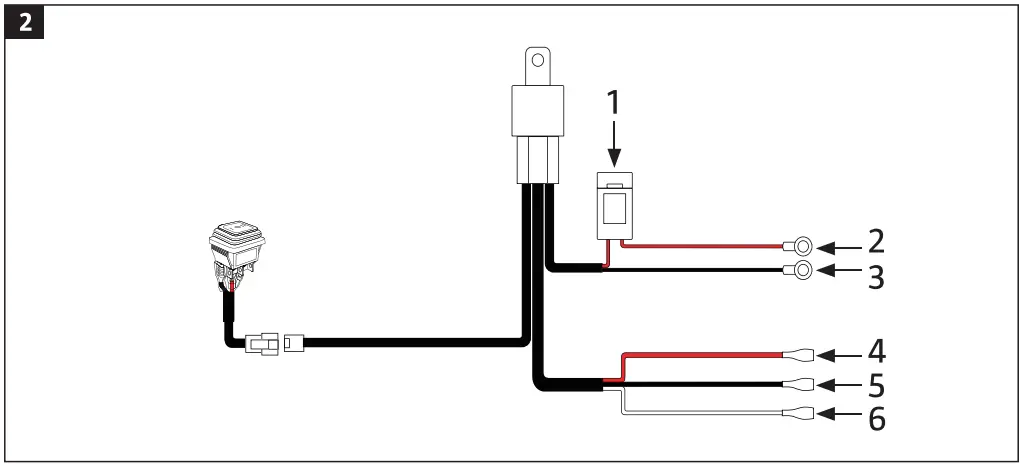

ELECTRICAL CONNECTION
- Fuse
- Red + (connect to battery/electrical system on vehicle)
- Black – (connect to battery/electrical system on vehicle)
- Red + (connect to light bar)
- Black – (connect to light bar)
- Parking light (connect to light bar)
FIG. 2

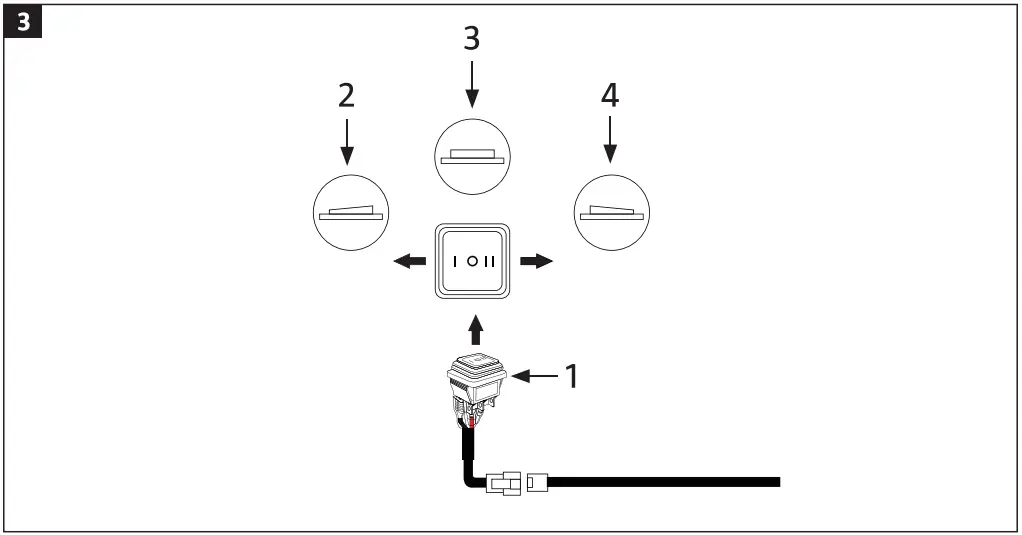

USE
- Power switch
- Parking light
- Off
- Headlight
FIG. 3
