HAMRON 006838 FLASHLIGHT BAR LED
SAFETY INSTRUCTIONS
CHARGING
Make sure to do the charging in a suitable place and that the right charger is used. Never connect an unknown charger, or a charger, charging cable or battery that can be suspected to be defective. Otherwise, there is a risk of overheating and in the worst case fire. Do not leave the battery unattended when charging.
WARNING
- Do not look into the light without wearing eye protection, risk of dazzling and/or eye damage.
- Magnetic mounting of warning devices is not recommended for moving vehicles. Screw mounting is recommended for moving vehicles. Use is at the discretion of the user.

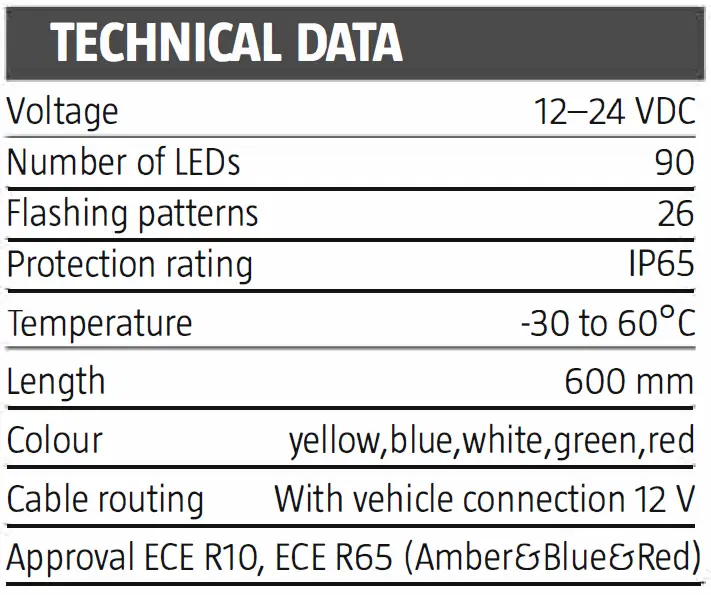

TECHNICAL DATA
DESCRIPTION
- Power switch
- Flashing pattern button FIG. 1
ASSEMBLY
WITH 4 WIRES
- RED: +VDC
- BLACK: – Ground
- YELLOW: Flash pattern selection.
- WHITE: Synchronization. Connect White wires of all heads together for synchronization.
USE
CHOICE OF FLASHING PATTERN
- Less than 1 second for the next pattern
- 1 to 3 seconds for the previous pattern
- 3 to 5 seconds back to pattern #1
- More than 5 seconds for turn off, when power is reapplied it will resume the previous pattern.
Table of flashing patterns
| #1 | Single flash (R65) | |
| #2 | Double flash (R65) | |
| #3
#5 | Triple flash (R65) Quad flash (R65) Eight flash | |
| #6 | Single flash half to half (R65) | |
| #7 | Double flash half to half (R65) | |
| #8 | Triple flash half to half (R65) | |
| #9 | Quadflash half to half (R65) | |
| 10 | Eight flash half to half | |
| #11 | Cross flash | |
| #12 | All-halfflash | |
| #13 | All-Single-Quick flash | |
| #14 | CCW Single flash | |
| #15 | CW Single flash | |
| #16 | CCW constant flash | |
| #17 | CW constant flash |
| #18 | CCW Rotation flash |
| #19 | CW Rotation flash |
| #20 | Middle to side constant |
| #21 | One-one single flash |
| #22 | Double flash |
| #23 | Eight flash |
| #24 | Half Steady Half Single |
| #25 | Half Steady Half Single |
| #26 | Steady on |
