Champion 201119 3650w Gasoline Portable Generator User Guide

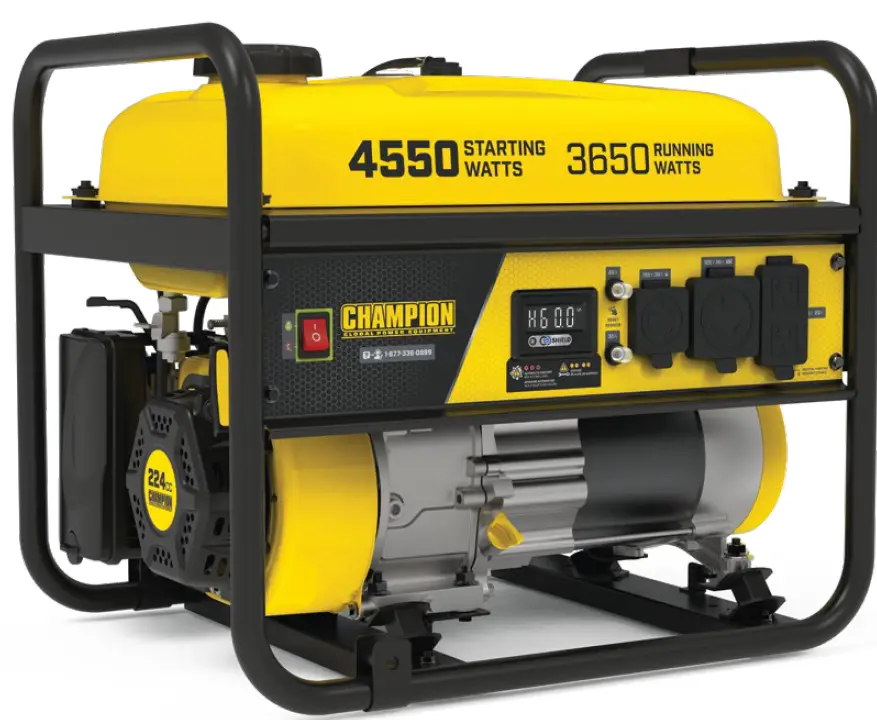

CHAMPION 201119 3650W Gasoline Portable Generator

Set-Up

1. Open shipping carton. Assembly > Unboxing

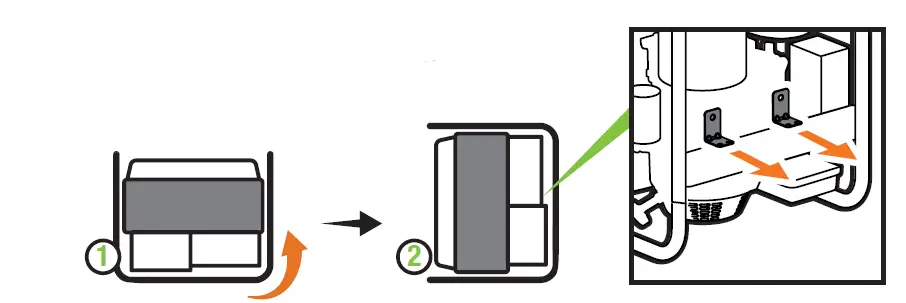

2. Remove brackets. Assembly > Remove Shipping Support Brackets.

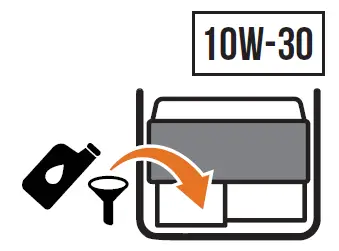

3. Add oil. Assembly > Add Engine Oil.
   Recommended: 10W-30, up to 16.9 fl. oz. (500 ml) DO NOT overfill.
4. Move the generator outdoors. Move generator to an open, outdoor area. Point exhaust away. Never run generator in enclosed areas (e.g., not in house or garage). Keep all objects at least 5 feet (1.5 m) from generator. Heat from the muffler and exhaust gas can ignite combustible materials.

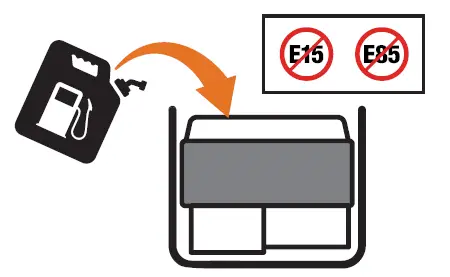

5. Add fuel. Assembly > Add Fuel
   DO NOT use E15 or E85.
6. DO NOT plug in any electrical devices.
7. Turn the fuel valve “ON”.

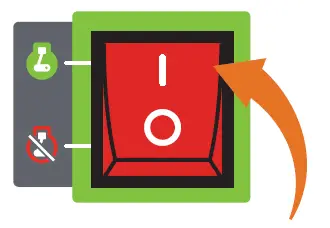

8. Press the engine switch to the “ON” position.
9. Move the choke lever to the “CHOKE” position.
10. Pull the recoil to start the engine.

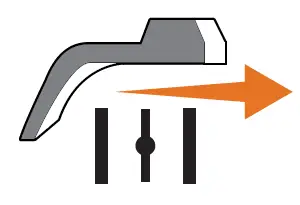

11. Move the choke lever to the “RUN” position.

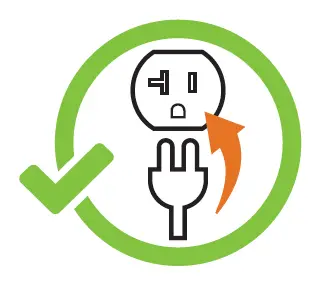

12. Plug in. Operation > Connecting Electrical Loads.

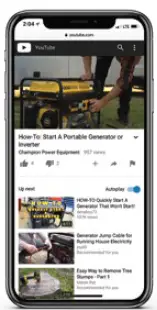

Visit our YouTube channel to watch our how-to videos and subscribe to view our latest videos on our Champion Power Equipment products!
