CHAMPION 201073 7000W Portable Generator

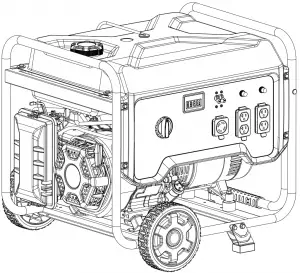

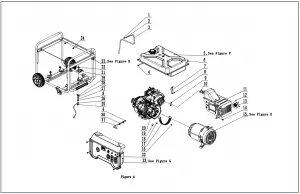

GENERATOR PARTS DIAGRAM

GENERATOR PARTS LIST

#

Part Number

Description

Qty.

1

2.06.006Clamp, Ø7 x Ø1

1

2

24.070030.00Orifice, Breather Tube

1

3

152.070014.08Tube, Fuel Tank Breather

1

4

2.06.007Clamp Ø8 x b6

3

5

152.070000.64.48Fuel Tank Assembly, See Figure F

1

6

2.08.143.1Flange Bolt/Washer Assembly M6 x 20, Black

4

7

45.090006.20Bracket, Air Cleaner Support

1

8

1.6177.1.06Lock Nut M6, Flange

2

9

1.6177.1.08Lock Nut M8, Flange

2

10

46.100001.07Gasket, Exhaust

1

11

46.101000.00.2Muffler Assembly

1

12

1.9074.4.0510Screw/Washer Assembly M5 x 10

3

13

46.101300.00Spark Arrester

1

14

1.16674.0820.1Flange Bolt M8 x 20, Black

2

15

153.190000.35Alternator Assembly, See Figure E

1

16

1.5789.0608Flange Bolt M6 x 8

1

17

152.192300.01Vent, Alternator Fan

1

18

152.190005.00Rubber, Fore-Cover, A

1

19

152.190005.01Rubber, Fore-Cover, B

1

20

46.401Engine, 389cc

1

21

152.100007.00Heat Shield, Motor Mount

1

22

1.6177.1.10Lock Nut M10, Flange

4

23

65309.201073Frame Assembly, See Figure H

1

24

2.05.001Clamp, Ø8 x 6.5

2

25

1.862.06Lock Washer Ø6, Toothed

1

26

5.1900.029Grounding Line 150 mm

1

27

1.97.1.06.2Washer Ø6

2

28

1.93.06Lock Washer Ø6

1

29

1.62.06Butterfly Type Nut M6

1

30

2.05.009Clamp Ø12.5 x 7

2

31

152.070011.29Tube, Fuel, Fuel Valve to Carburetor, 430+20mm

1

32

1.5789.0615.1Flange Bolt M6 x 15, Black

4

33

201073.21Control Panel Assembly, See Figure G

1

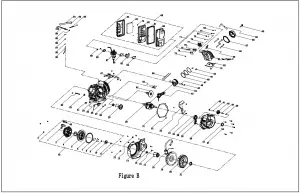

ENGINE PARTS DIAGRAM

ENGINE PARTS DIAGRAM

#

Part NumberDescription

Qty.

1

21.061006.02Handle, Recoil, Soft

1

2

1.5789.0608Flange Bolt M6 x 8

3

3

46.061100.03.2Cover, Recoil Starter, Black

1

4

45.060005.00Spring, Recoil Starter

1

5

45.061102.00Reel, Recoil Starter

1

6

2.10.003.1Rope Ø4 x 1550, Black

1

7

45.060003.00Spring, Ratchet

2

8

45.060002.00Starter Ratchet, Steel

2

9

45.060009.00Spring, Ratchet Guide

1

10

45.060007.00Ratchet Guide

1

11

45.060008.00Screw, Ratchet Guide

1

12

1.5789.0612Flange Bolt M6 x 12

12

13

2.05.005Clamp Ø6

2

14

46.080100.01.48Fan Cover, Yellow

1

15

2.02.007Nut M16 x 1.5

1

16

1.5789.0629Flange Bolt M6 x 29

2

17

45.060001.00Pulley, Starter

1

18

46.123000.08Ignition Coil

1

19

45.080001.00Fan, Engine

1

20

46.120100.03Flywheel

1

21

2.11.007Oil Seal Ø35 x Ø52 x 8

2

22

2.05.050Wire Clip, 100 mm

1

23

152.070031.01Sheath, Wire

1

24

2.03.023Washer Ø12.5 x Ø20 x 2, Drain Bolt

1

25

46.030100.04.1Crankcase

1

26

45.127000.02Oil Level Sensor

1

27

1.5789.0615Flange Bolt M6 x 15

2

28

1.276.6202Bearing 6202

2

29

47.050006.00Weight Balancer

1

30

45.050100.14Crankshaft

1

31

46.030008.00Gasket, Crankcase Cover

1

32

2.04.001Dowel Pin Ø9 x 14

2

33

46.080600.00Air Guide, Right Side

1

34

1.276.6207Bearing 6207

1

35

46.031000.01.48Oil Dipstick, Yellow

1

36

45.030007.00Cover, Crankcase

1

37

1.5789.0840Flange Bolt M8 x 40

7

38

2.03.021.1Washer Ø6.4 x Ø13 x 1, Black

1

39

45.110013.00Shaft, Governor Gear

1

40

45.110100.00Gear, Governor

1

41

21.110011.00Clip, Governor Gear

1

42

45.110012.00Bushing, Governor Gear

1

43

47.050200.00Connecting Rod

1

44

46.050005.00Piston

1

45

2.09.004Circlip Ø21 x Ø1

2

46

45.050003.00Pin, Piston

1

47

46.050303.00Ring, Oil

1

48

46.050302.00Ring, Second Piston

1

49

46.050301.00Ring, First Piston

1

50

2.04.004Dowel Pin Ø12 x 20

2

51

46.030009.01Gasket, Cylinder Head

1

52

46.080400.00Air Guide, Lower

1

53

46.010000.00Cylinder Head Assembly, See Figure C

1

54

45.110006.00Rod, Governor

1

55

2.15.002(F6RTC)Spark Plug F6RTC

1

56

2.08.014Flange Bolt M10 x 80

4

57

46.020002.00Gasket, Cylinder Head Cover

1

58

46.021000.00Cover, Cylinder Head

1

59

45.020001.02Breather Tube

1

60

45.020100.00Bolt, Cylinder Head Cover

1

61

2.08.039Drain Bolt M12 x 1.5 x 15

1

62

46.041000.00Camshaft

1

63

45.040013.00Lifter, Valve

2

64

45.110005.00Spring, Throttle Return

1

65

45.110007.00Spring, Governor

1

66

46.040005.00Push Rod

2

67

46.080300.20Air Guide, Upper

1

68

45.040017.00Oil Seal, Valve

2

69

46.091000.09Air Cleaner Assembly

1

70

46.061000.03.2Recoil Assembly

1

71

46.040200.00Rocker Arm Assembly

1

72

1.6177.1.05Flange Nut M5

6

73

45.040008.00Rotator, Exhaust Valve

1

74

46.040004.00Guide Plate, Push Rod

1

75

46.040016.00Shaft, Rocker Arm

1

76

46.040201.00Retainer, Rocker Arm

1

77

46.040009.00Rocker Arm, Intake Valve

1

78

46.040018.00Rocker Arm, Exhaust Valve

1

79

1.97.1.06Washer Ø6

2

80

22.040012.00Screw, Valve Adjustment

2

81

1.6177.1.06Flange Nut M6

2

82

21.040021.00Nut M6 x 0.5, Lock

2

83

21.061301.01.48Support, Handle, Recoil

1

84

46.130002.20Gasket, Insulator

1

85

45.130001.00Insulator, Carburetor

1

86

46.130003.20Gasket, Carburetor

1

87

46.131000.20Carburetor Assembly

1

46.131000.24

88

46.130004.20Gasket, Air Cleaner

1

89

1.6177.06Flange Nut M6

3

90

46.091100.09Base, Air Cleaner

1

91

45.091002.20Seal, Air Cleaner

1

92

45.091001.20Separator, Air Cleaner

1

93

45.091003.20Element, Air Cleaner

1

94

46.091200.09Cover, Air Cleaner

1

95

45.110001.00Shaft, Governor Arm

1

96

2.03.019Washer Ø8.2 x Ø17 x 0.8

1

97

2.11.006Oil Seal Ø7 x Ø14 x 5

1

98

45.110008.00Pin, Shaft

1

99

45.110003.00Arm, Governor

1

100

2.08.040Bolt M6 x 21, Governor Arm

1

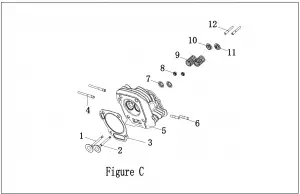

CYLINDER HEAD PART DIAGRAM

CYLINDER HEAD PART LIST

#

Part Number

Description

Qty.

1

45.040002.00Valve, Intake

1

2

45.040006.00Valve, Exhaust

1

3

46.030009.01Gasket, Cylinder Head

1

4

2.01.008Stud Bolt M6 x M8 x 105

2

5

46.010100.00Cylinder Head

1

6

2.01.010Stud Bolt M8 x 35

2

7

45.040015.00Retainer, Valve Spring

2

8

45.040017.00Oil Seal, Valve

2

9

45.040003.00Spring, Valve

2

10

45.040001.00Retainer, Intake Valve Spring

1

11

45.040007.00Retainer, Exhaust Valve Spring

1

12

23.040010.00Bolt, Rocker Arm

2

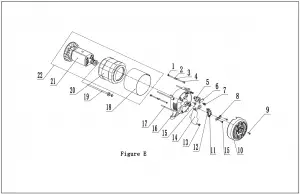

ALTERNATOR PART DIAGRAM

ALTERNATOR PART LIST
#Part NumberDescription

Qty.

1

1.6175.05Nut M5

2

2

1.97.1.05Washer Ø5

2

3

1.93.05Lock Washer Ø5

2

4

2.08.071Bolt M5 x 229

2

5

152.190300.00Carbon Brush Assembly

1

6

122.190004.01Bracket, Carbon Brush Securing

1

7

1.9074.15.0520Bolt/Washer Assembly M5 x 20

1

8

122.190018.03Bracket, End Housing Cover

1

9

2.08.068.1Flange Bolt M5 x 13, Black

1

10

152.190003.02.48Cover, End Housing, Yellow

1

11

1.9074.17.0516Screw/Washer Assembly M5 x 16

2

12

122.190400.02Terminal Block

1

13

1.16674.0516Flange Bolt M5 x 16

2

14

153.190200.03AVR

1

15

1.16674.0512Flange Bolt M5 x 12

3

16

152.190002.00End Housing

1

17

2.08.069Flange Bolt/Washer Assembly M6 x 194

4

18

153.191002.00Stator Cover

1

19

2.08.070Flange Bolt/Washer Assembly M10 x 280

1

20

153.191200.35Stator Assembly, Al, Ø190 x 148 mm, DC 12V

1

21

153.191100.18Rotor Assembly, Al, Ø190x 158 mm, DC 12V

1

22

153.191000.35Alternator Assembly, Al, Ø190 x 158 mm, DC 12V

1

FUEL TANK PART DIAGRAM

FUEL TANK PART LIST
#Part Number

Description

Qty.

1

122.070100.09Fuel Tank Cap

1

2

122.070300.03Fuel Filter

1

3

152.072000.06Fuel Gauge

1

4

24.070800.00Reversal Valve

1

5

152.071000.64.48Fuel Tank, 29.1L, Yellow

1

6

122.070015.01Mount Vibration, Fuel Tank

4

7

21.070600.03Fitting, Fuel Tank

1

8

2.06.016Clamp Ø8.7 x b8

1

9

152.070011.30Tube, Fuel, 245+32 mm, Fuel Tank to Fuel Valve

1

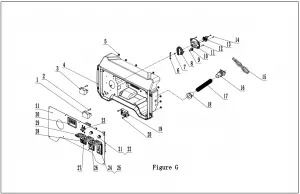

CONTROL PANEL PART DIAGRAM

CONTROL PANEL PART LIST

#

Part Number

Description

Qty.

1

5.1810.000VFO Diode

1

2

1.818.0514.2Screw M5 x 14

2

3

5.1800.000Rectifier

1

4

152.210002.63Control Panel Housing

1

5

1.6177.1.05Lock Nut M5, Flange, Black

8

6

62.139002.00.48Cover, Fuel Select Dial, Yellow

1

7

1.9074.4.0414.1Screw/Washer Assembly M4 x 14, Black

1

8

122.139001.01Fuel Select Dial

1

9

1.845.0.2216Screw, ST2.2 x 16

2

10

5.1050.006Microswitch, 2-Pole

1

11

122.139004.01Mounting Plate, Fuel Valve

1

12

1.845.4816Screw, ST4.8 x 16

4

13

62.070400.00Fuel Valve

1

14

1.818.0410Screw M4 x 10

2

15

201073.21.10Wire Assembly

1

16

152.210003.03Plug, End Housing

1

17

5.1320.024Sheath, Wire

1

18

152.210003.01Wire Jacket, Control Panel Housing

1

19

5.1830.022Module, CO Shutdown

1

20

1.845.4213Screw, ST4.2 x 13

2

21

5.1210.92020Amp Circuit Breaker, Push Button, CSA

2

22

5.1870.014Circuit Breaker Cover, Push Button

2

23

5.1240.92929Amp Circuit Breaker, Double Pole

1

24

5.1120.050Receptacle 5-20R, Duplex GFCI

2

25

1.6177.1.04.1Lock Nut M4, Flange, Black

6

26

5.1870.022Receptacle Cover, Receptacle 5-20R, Duplex GFCI

2

27

1.9074.4.0306.1Screw/Washer Assembly M3 x 6, Black

4

28

5.1120.026Receptacle L14-30R, CSA

1

29

5.1870.020Receptacle Cover, Receptacle L14-30R

1

30

5.1470.000Intelligauge, INT1AOF

1

31

152.25.5.2Control Panel

1

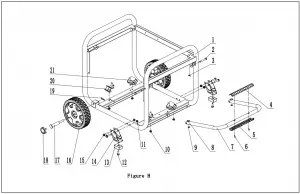

FRAME PART DIAGRAM

FRAME PART LIST
#Part Number

Description

Qty.

1

65309.0.10.2Frame, 680 x 556 x 567

1

2

152.200703.05Long Pin, Handle

2

3

11.110008.00Pin Ø1.6 x 24, “R” Shape , Black

2

4

122.200702.14.48Cover, Handle, Lower, Yellow

1

5

122.200702.13.48Cover, Handle, Upper, Yellow

1

6

1.9074.4.0414.1Screw/Washer Assembly M4 x 14, Black

2

7

152.200701.22.2Handle, U Shape, Black

1

8

152.200703.02Short Pin, Handle

2

9

1.894.1.08Circlip Ø8

2

10

1.6177.1.08Lock Nut M8, Flange

4

11

1.6177.1.08.1Lock Nut M8, Flange , Black

6

12

1.5789.0825.1Flange Bolt M8 x 25, Black

2

13

122.201400.04Rubber, Support, 55 x 36 x 22

2

14

152.200002.16.2Support Leg, 68 mm, Black

2

15

1.5789.0840.1Flange Bolt M8 x 40, Black

4

16

122.201701.11.488 in. Wheel, PU, Yellow

2

17

122.201501.23.1Pin Roll, Wheel, Ø16 x Ø10 x 97, Black

2

18

122.201702.11.48Wheel Cover, Tooth Profile 8-10 in, Yellow

2

19

2.16.001.1Pin Ø2 x 33, “R” Shape , Black

2

20

152.201200.03Motor Mount 1

2

21

152.201200.04Motor Mount 2

2

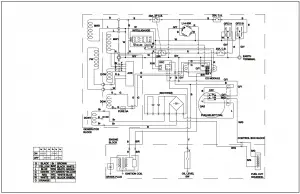

WIRING DIAGRAM

To order replacement parts please visit:
shop.championpowerequipment.com
or call 1-877-338-0999.

www.championpowerequipment.com

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
