CHAMPION Portable Generator
QUICK START GUIDE
WARNING:
Read the ENTIRE operator’s manual to become familiar with the features of the product before operating.
Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury or even death.
CHAMPION
www.championpowerequipment.com
© Champion Power Equipment 2021. All Rights Reserved.
GLOBAL POWER EQUIPMENT
Set Up
- Open shipping carton. Assembly > Unboxing

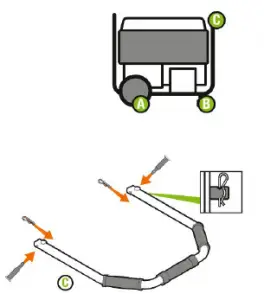

- Attach wheel kit. 3 Assembly > Install Wheel Kit
- Connect the battery. Assembly > Connect the Battery Attach the red battery lead to the positive red terminal on the battery. Repeat for the black negative battery lead.
- Add oil. Assembly > Add Engine Oil. Recommended: 10W-30, up to 37.2 fl. oz. (1.2 qt./1.1 L) DO NOT overfill.
- Move the generator outdoors. Move generator to an open, outdoor area. Keep all objects at least 5 feet (1.5 m) from Point exhaust away. Never run generator in generator. Heat from the muffler and exhaust gas enclosed areas (e.g., not in house or garage). can ignite combustible materials
- Add fuel. Assembly > Add Fuel DO NOT use E15 or E85.
- DO NOT plug in any electrical devices.
NEVER START OR STOP THE GENERATOR WITH ELECTRICAL
DEVICES CONNECTED OR TURNED ON!
- Turn the fuel valve “ON”.
- Move the choke lever to the “CHOKE” position.
- Electric Start
1. Push the ignition switch to the “ON” position.
2. Press and hold the ignition switch to the “START” position.
10b. Manual Start
1. Push the ignition switch to the “ON” position.2. Pull the starter cord. - Move the choke lever to the “RUN” position.
- Plug in. 9 Operation > Connecting Electrical Loads.
