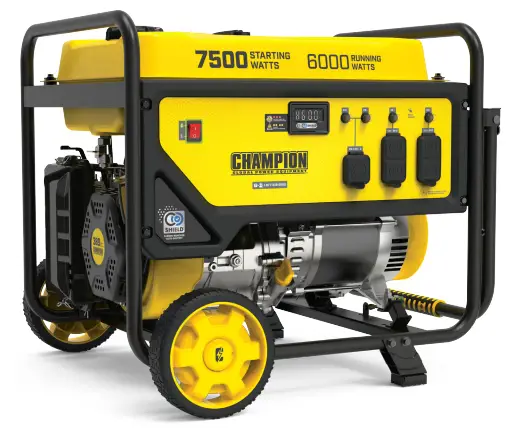

CHAMPION 201033 6000W Portable Generator User Guide
www.championpowerequipment.com
© Champion Power Equipment 2021.
All Rights Reserved.
Set Up
1. Open shipping carton.
Assembly > Unpacking

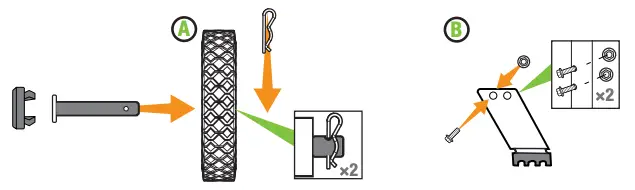

2. Attach wheel kit. Assembly > Install the Wheel Kit
3. Add oil. Assembly > Add Engine Oil.
Recommended: 10W-30, up to 37.2 fl. oz. (1100 ml) DO NOT overfill.
4. Move the generator outdoors.
Move generator to an open, outdoor area. Point exhaust away. Never run generator in enclosed areas (e.g., not in house or garage).
Keep all objects at least 5 feet (1.5 m) from generator. Heat from the muffler and exhaust gas can ignite combustible materials.
Start Up

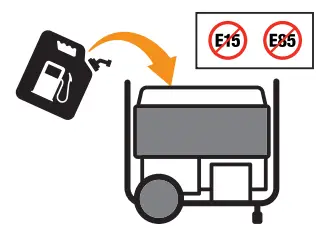

5. Add fuel. Assembly > Add Fuel
DO NOT use E15 or E85.

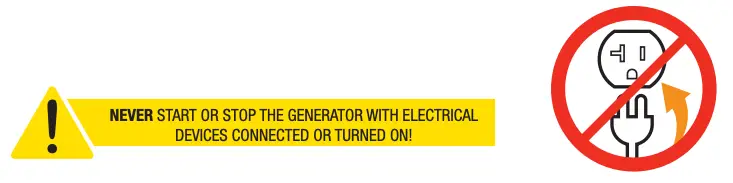

6. DO NOT plug in any electrical devices.
7. Turn the fuel valve “ON”.
8. Press the engine switch to the “ON” position.
9. Move the choke lever to the “CHOKE” position.
10. Pull the recoil to start the engine.
11. Move the choke lever to the “RUN” position.
12. Plug in. Operation > Connecting Electrical Loads.
Visit our youTube channel to watch our how-to videos and subscribe to view our latest videos on our Champion Power Equipment products!
NEED aSSISTaNCE OR HaVE a QUESTION? GIVE US a CaLL.
1•877•338•0999
CHaMPIONPOWEREQUIPMENT.COM
