Champion 201083 8500w Dual Fuel Portable Generator User Guide

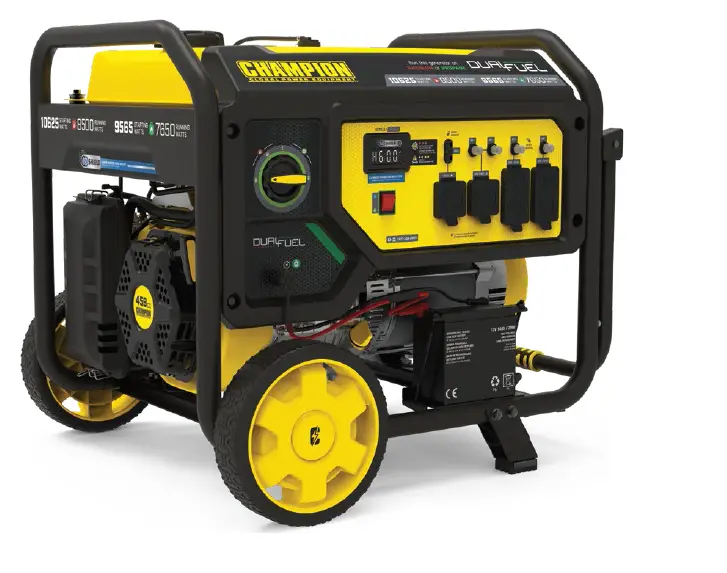

CHAMPION 201083 8500W Dual Fuel Portable Generator

Set Up

1. Open shipping carton.
   Assembly > Unpacking

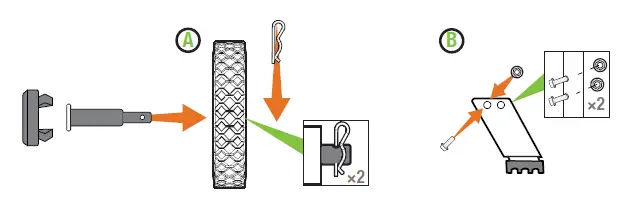

2. Attach wheel kit.
   Assembly > Install Wheel Kit

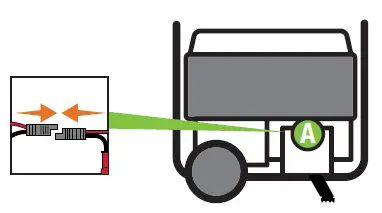

3. Connect the battery.
   Assembly > Connect the Battery. Cut cable tie on each side of battery connector. Push two halves of battery connector together tightly.
4. Add oil.
   Assembly > Add Engine Oil.
   Recommended: 10W-30, up to 37.2 fl. oz. (1100 ml) DO NOT overfill.

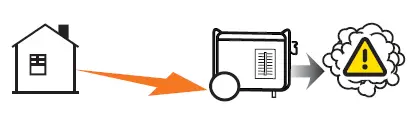

5. Move the generator outdoors.
   Move generator to an open, outdoor area. Point exhaust away. Never run generator in enclosed areas (e.g., not in house or garage).Keep all objects at least 5 feet (1.5 m) from generator. Heat from the muffler and exhaust gas can ignite combustible materials.

   Start Up

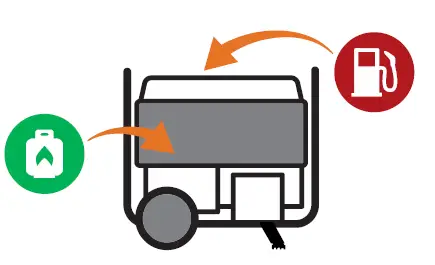

6. Add fuel – Gasoline or Propane (LPG)
   Assembly > Add Fuel
7. DO NOT plug in any electrical devices.
   NEVER START OR STOP THE GENERATOR WITH ELECTRICAL DEVICES CONNECTED OR TURNED ON!

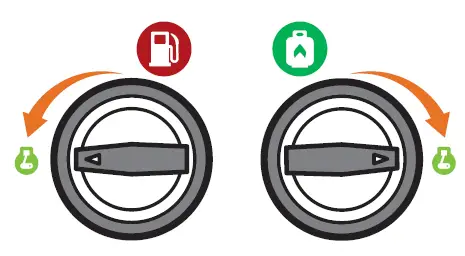

8. Select Fuel.
   Operation > Starting the Engine.
   Gasoline: Turn fuel select dial to “GASOLINE RUN” position.
   Propane: Turn fuel select dial to “PROPANE RUN” position.
9. Move the choke lever to the “CHOKE” position.

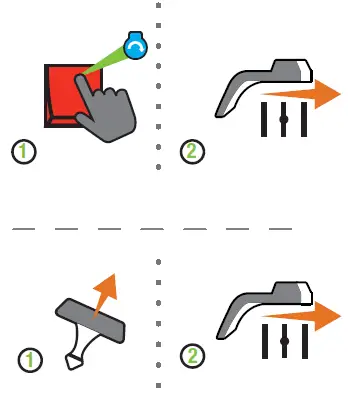

10. Starting the Engine: Gasoline
    Electric Start
    1. Press and hold the ignition switch to the “START” position.
    2. Move the choke lever to the “RUN” position.
       Manual Start
       1. Pull the starter cord.
       2. Move the choke lever to the “RUN” position.
11. Starting the Engine: Propane (LPG)
    Electric Start
    1. Open the propane tank valve.
    2. Press the ignition switch to the “START” position for 2-3 seconds.
    3. Move the choke lever to the “RUN” position.
    4. Press and hold the ignition switch to the “START” position.
    5. If engine does not start, wait 10 seconds, then repeat step 3.

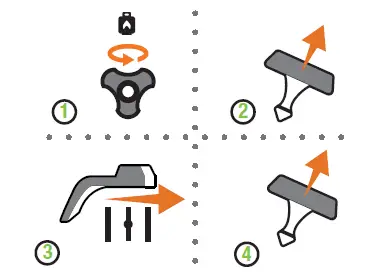

12. Manual Start
    1. Open the propane tank valve.
    2. Pull the starter cord 2-3 times until you feel some combustion pulses.
    3. Move the choke lever to the “RUN” position.
    4. Pull the starter cord.
13. Plug in.
    Operation > Connecting Electrical Loads.

For Queries, Questions and Support Contact on: 1•877•338•0999
