Champion 3650w Dual Fuel Portable Generator User Guide

200972

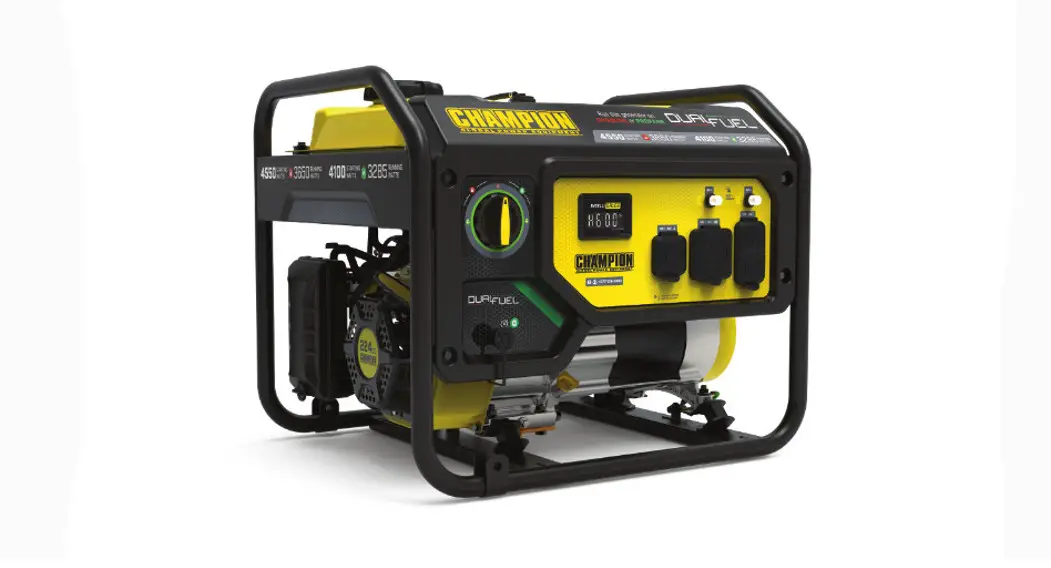

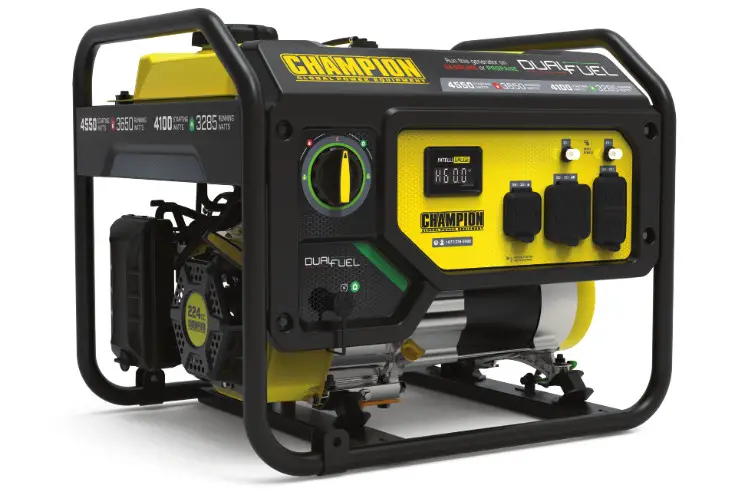

3650W Dual Fuel Portable Generator

WARNING:

Read the ENTIRE operator’s manual to become familiar with the features of the product before operating.
Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury or even death.

Set-Up

1. Open shipping carton. Assembly > Unboxing

2. Remove brackets. Assembly > Remove Shipping Support Brackets.

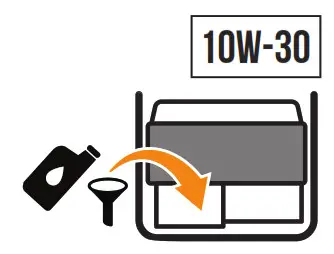

3. Add oil. Assembly > Add Engine Oil.
   Recommended: 10W-30, up to 20.3 fl. oz. (600 ml) DO NOT overfill.

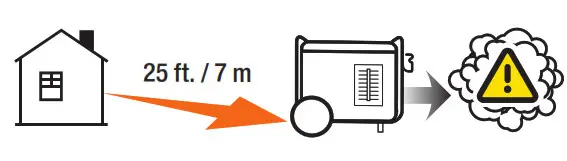

4. Move the generator outdoors.
   Move generator to an open, outdoor area. Point exhaust away. Never run generator in enclosed areas (e.g., not in-house or garage).
   Keep all objects at least 5 feet (1.5 m) from generator. Heat from the muffler and exhaust gas can ignite combustible materials.

   Start-Up

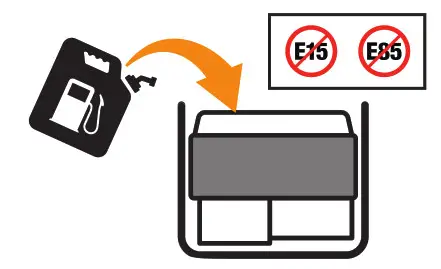

5. Add fuel. Assembly > Add Fuel: Gasoline
   DO NOT use E15 or E85.

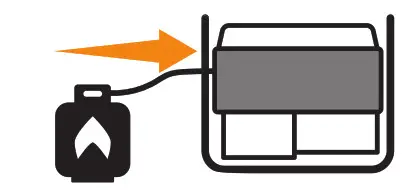

   Connect propane cylinder.
   Assembly > Add Fuel: Propane (LPG)

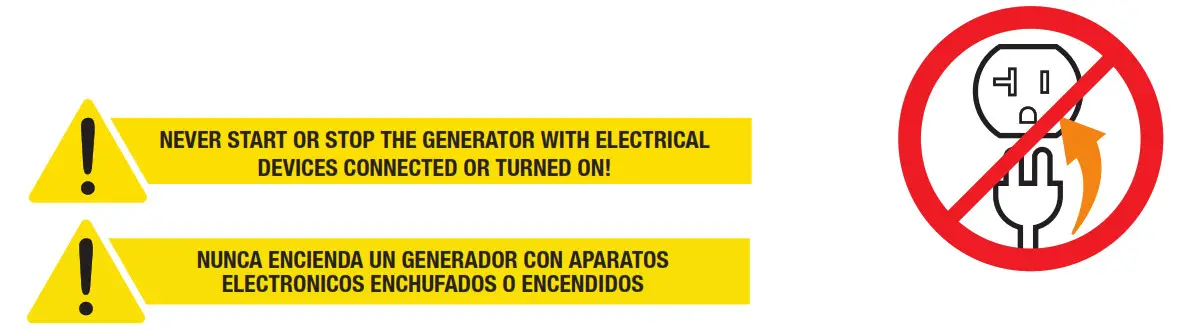

6. DO NOT plug in any electrical devices.

7. Select Fuel. Operation > Starting the Engine.
   Gasoline: Turn fuel select dial to “Gasoline Run” position.
   Propane: Turn fuel select dial to “Propane Run” position.

8. Move the choke lever to the “CHOKE” position.

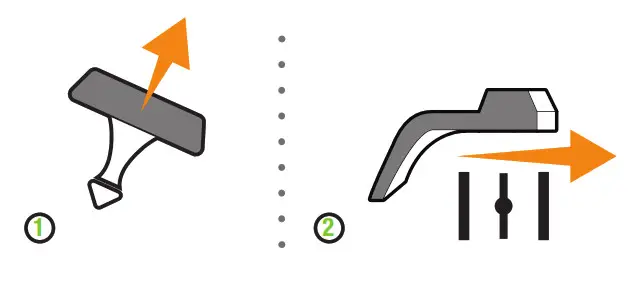

9. 9a. Gasoline
   Manual Start
   1. Pull the starter cord.
   2. Move the choke lever to the “RUN” position.

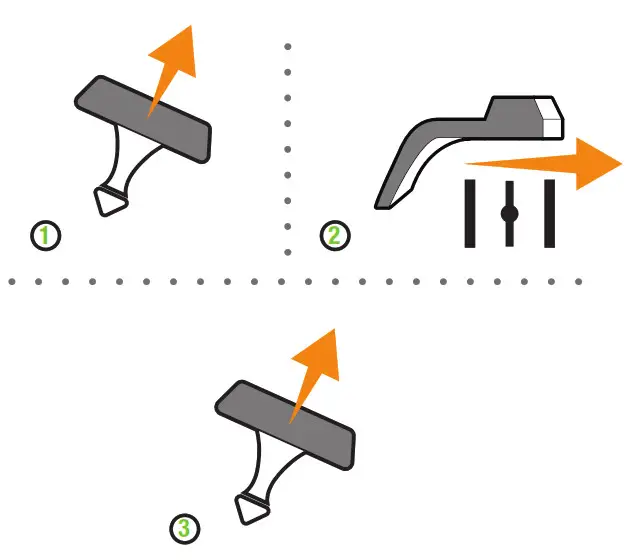

   9b. Propane
   Manual Start
   1. Pull the starter cord 2-3 times.
   2. Move the choke lever to the “RUN” position.
   3. Pull the starter cord.

10. Plugin. Operation > Connecting Electrical Loads.


NEED ASSISTANCE OR HAVE A QUESTION?
GIVE US A CALL.

CHAMPIONPOWEREQUIPMENT.COM

www.championpowerequipment.com
© Champion Power Equipment 2021.
All Rights Reserved. / Todos los derechos reservados.
