Champion 201041 5000w Portable Generator User Guide

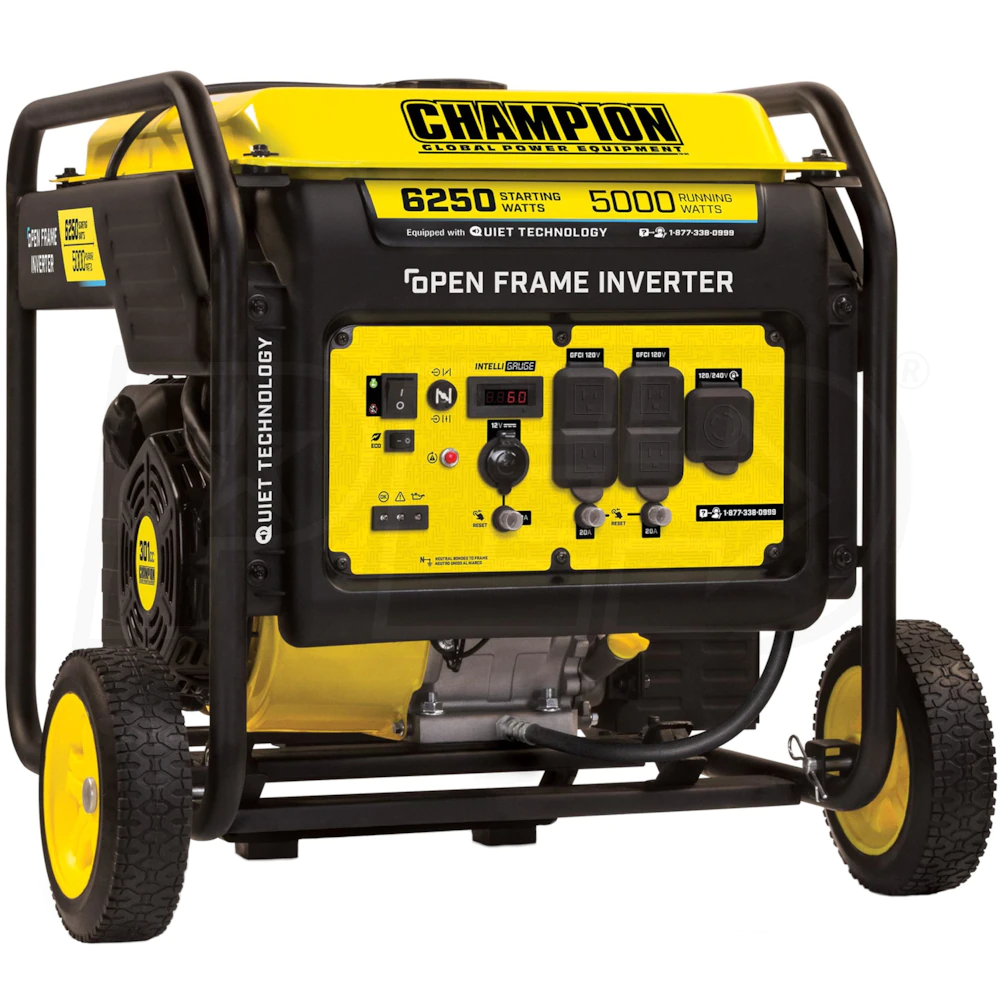

CHAMPION 201041 5000W Portable Generator

WARNING:

Read the ENTIRE operator’s manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury or even death.

Set-Up

1. Open shipping carton.  Assembly > Unpacking

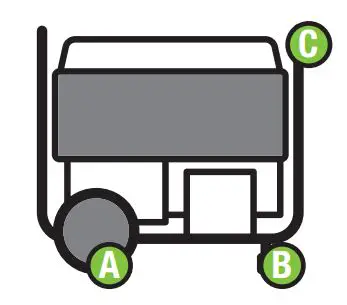

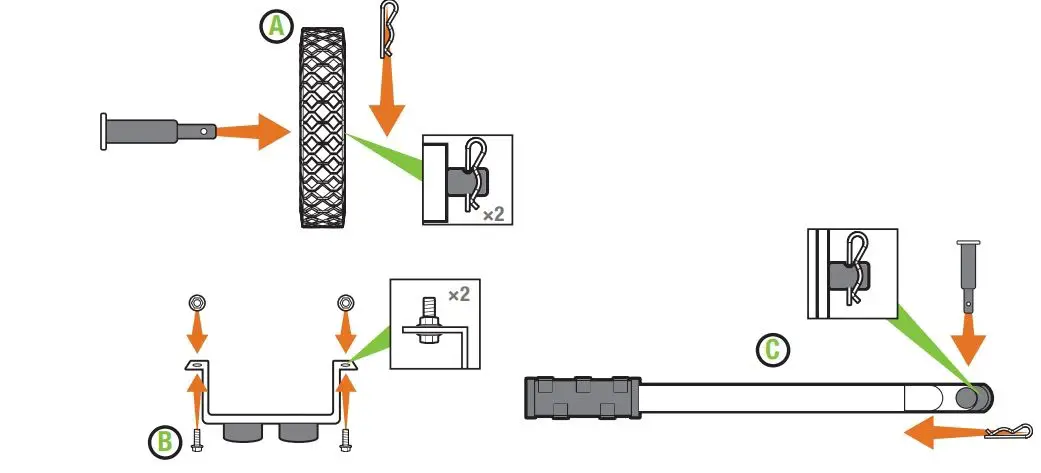

2. Attach wheel kit.  Assembly > Install the Wheel Kit

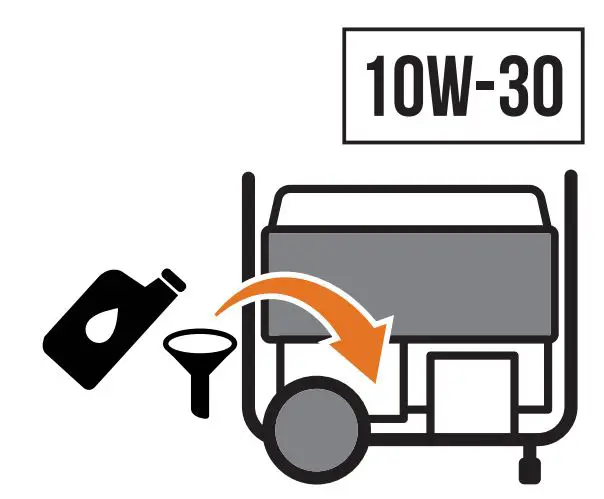

3. Add oil. Assembly > Add Engine Oil.
   Recommended: 10W-30, up to 37.2 fl. oz. (1100 ml) DO NOT overfill.

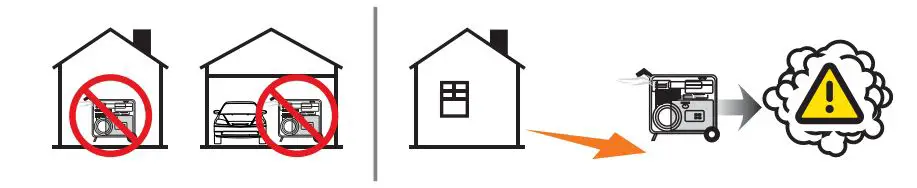

4. Move the generator outdoors.

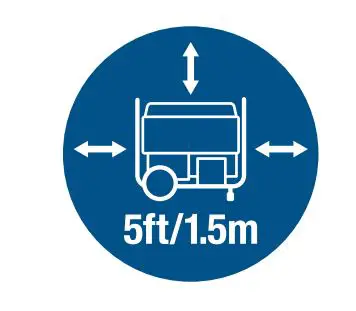

   Move generator to an open, outdoor area. Point exhaust away from people and buildings. Never run a generator inside a home or garage.  Keep all objects at least 5 feet (1.5 m) from the generator. The heat from the muffler and exhaust gas can ignite combustible materials.

   Start-Up

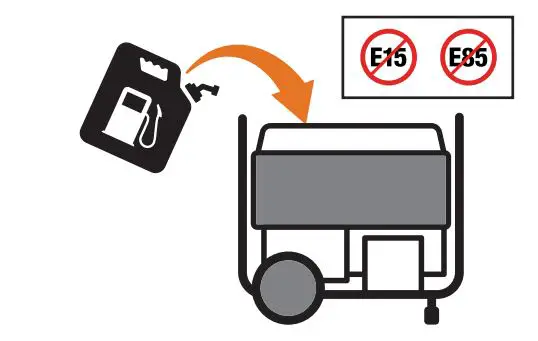

5. Add fuel.  Assembly > Add Fuel
   DO NOT use E15 or E85.

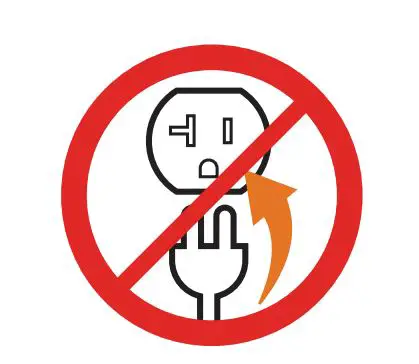

6. DO NOT plug in any electrical devices.
   NEVER START OR STOP THE GENERATOR WITH ELECTRICAL DEVICES CONNECTED OR TURNED ON!

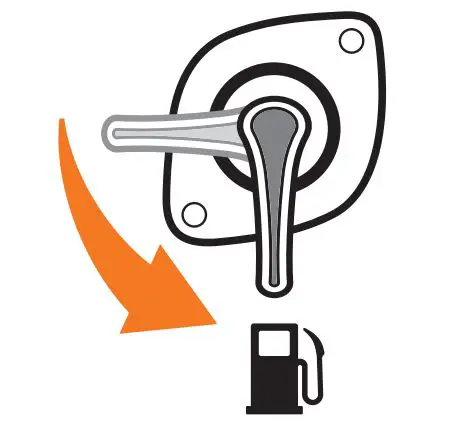

7. Turn the fuel valve “ON”.

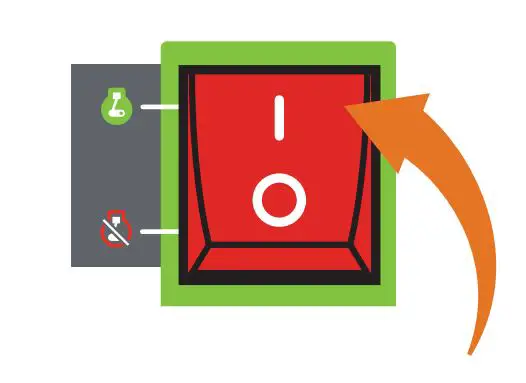

8. Press the engine switch to the “ON” position.

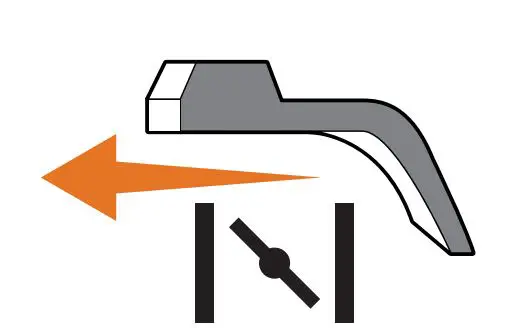

9. Move the choke lever to the “CHOKE” position.

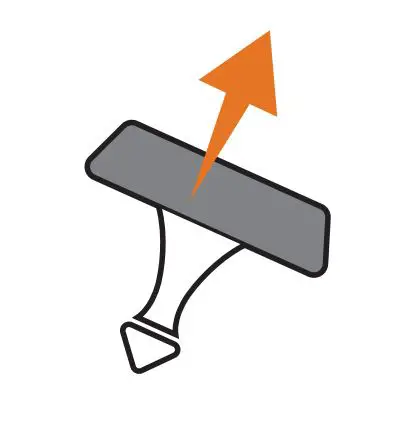

10. Pull the recoil to start the engine.

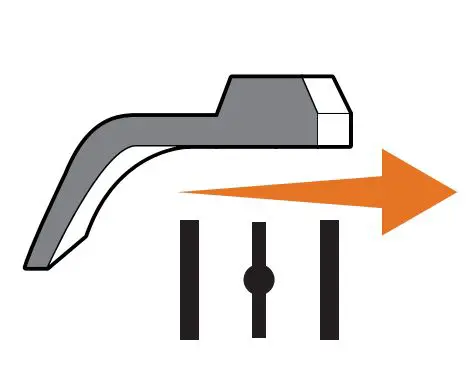

11. Move the choke lever to the “RUN” position.

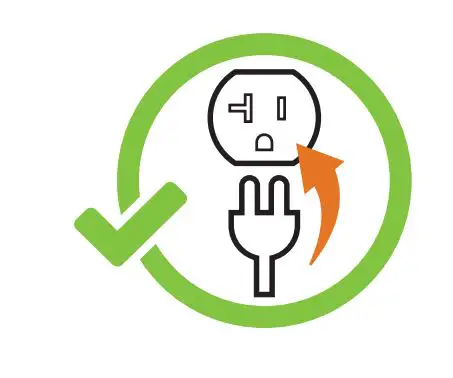

12. Plugin. ° Operation > Connecting Electrical Loads.
