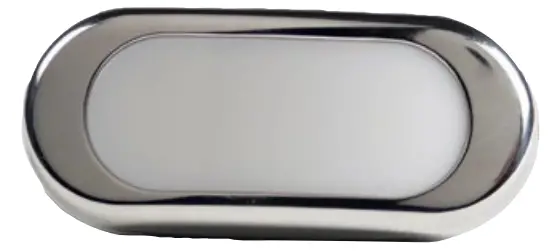

ITC 69365 Oblong Courtesy Light

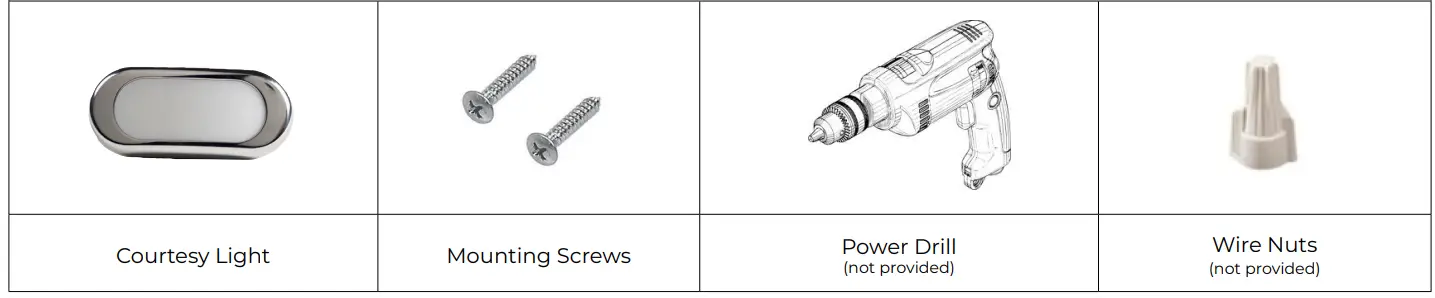

PARTS NEEDED:
Safety Instructions
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- Light is rated for interior installation only, do not install in wet locations.
- Operating Voltage: 10 – 14V DC
- Do not install any luminaire assembly closer than 6” from any curtain or other combustible material
INSTALLATION INSTRUCTION
- Determine where your LED light fixture will be installed. Once determined, drill a hole for the wires.

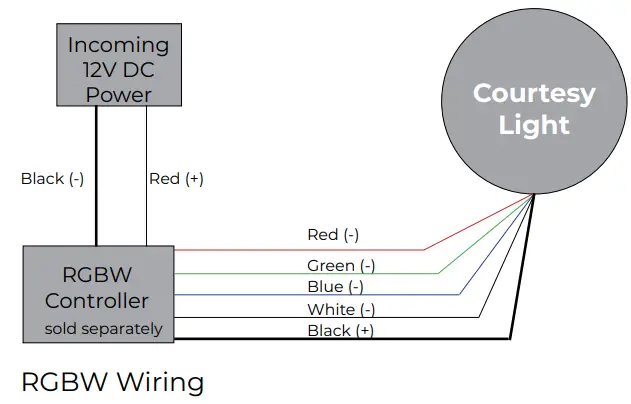

- Use the wiring diagram below to wire the light to the units power. Test the light
- Mark location of screw holes and pre-drill. Screw in fixture and snap bezel onto the light.

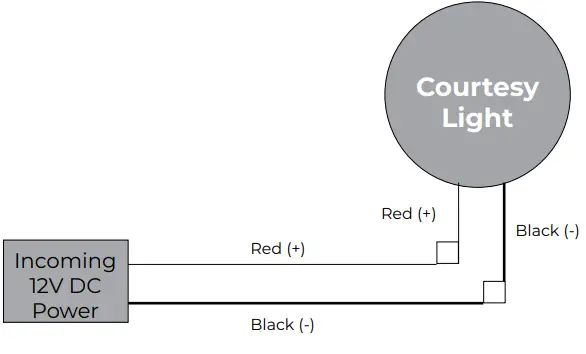

Single Color Wiring
