Down Courtesy Light
Part#: 69307
INSTALLATION INSTRUCTIONS

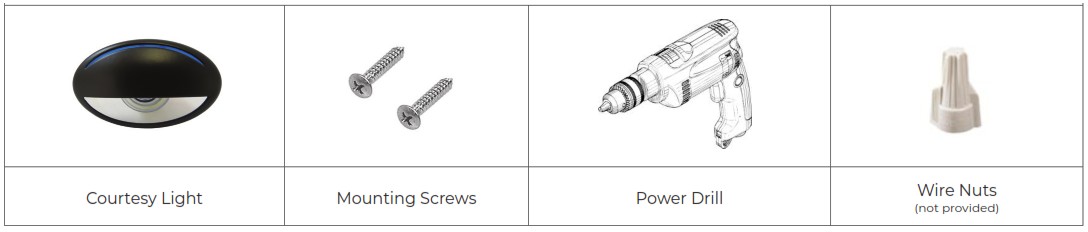

PARTS NEEDED:
Safety Instructions
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- Light is rated for interior installation only, do not install in wet locations.
- Operating Voltage: 10 – 14V DC

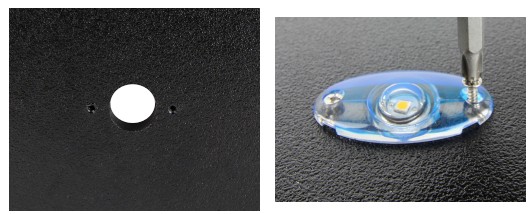

- Determine where your LED light fixture will be installed. Mark the location of the screw holes. Drill a hole for the wires and screws.

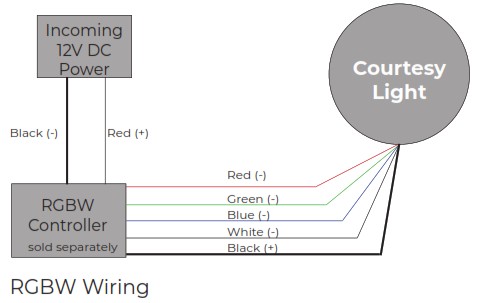

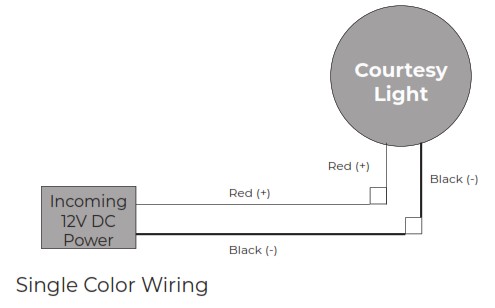

- Use the wiring diagram below to wire the light to the units power. Test the light

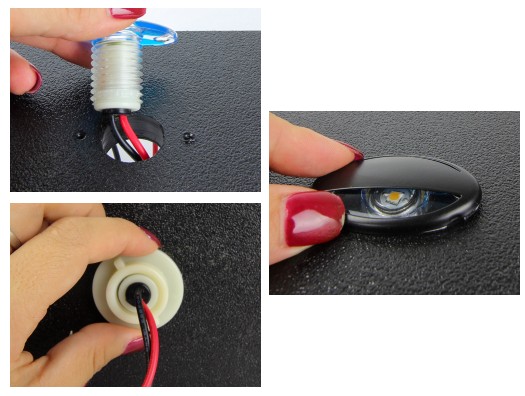

- Feed the wires through the hole and screw the back nut onto the fixture. Snap bezel onto the light.
3030 Corporate Grove Dr.
Hudsonville, MI 49426
Phone: 616.396.1355 itc-us.com
For warranty information please visit www.itc-us.com/warranty-return-policy
Rev B · 04/07/20
