Hardtop Light
Part#: 69670B-XX-KKKK
INSTALLATION INSTRUCTIONS
| PARTS/TOOLS NEEDED: | ||||||
 |  |  |  |  |  | |
| Hardtop Light | Decorative Bezel | Mounting Screws | 2” Hole Saw Bit (not provided) | Butt Splice Connectors (not provided) | Power Drill (not provided) | |
IMPORTANT SAFETY INSTRUCTIONS.
READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.

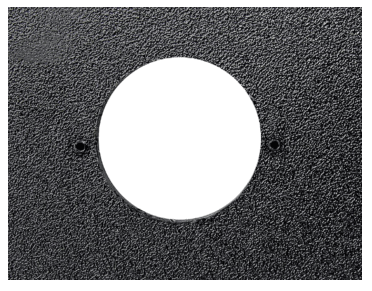

- Determine the installation location for your light. Once determined drill a 2” hole using a hole saw.

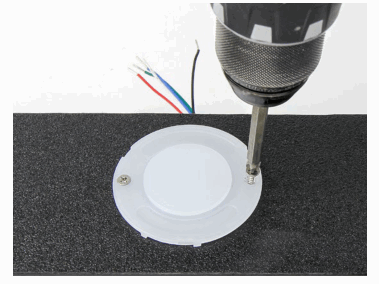

*Optional, predrill screw holes - A. Feed wires back through the hole and screw the light in place using the screws provided.

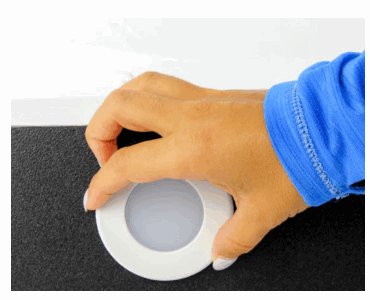

*Follow wiring diagram below before screwing light in place - Attach the bezel by lining up the cutouts and rotating until it snaps in place.
*Optional, predrill screw holes

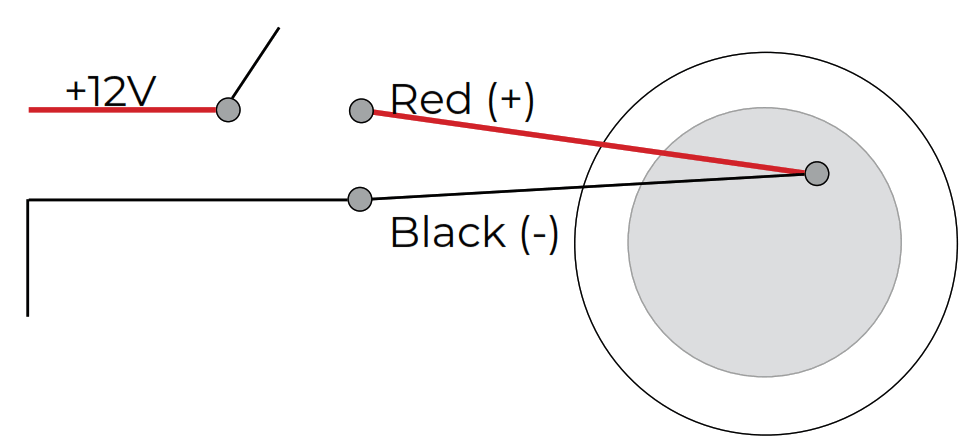

Bi or Tri Color Wiring Diagram
2B. Wire the light following the wiring diagrams below. The color sequence of the Tri color light will be as follows: 3000K → Off → 4000K → Off → 6500K OR Red → Off → Blue → Off → 6500K | The color sequence of the Bi color light will be as follows: 3000K → Off → 6500K. If the light is off for more than 30 seconds it will re-start the cycle.

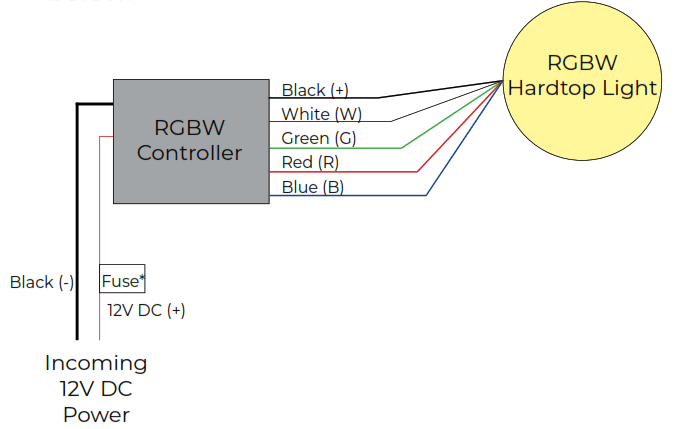

VersiColor RGBW Wiring Diagram
2B. Wire the light following the wiring diagrams below.
*It is highly recommended that appropriate fusing be used.
