Sheen™ Low Profile Light
Part#: 7003B-FF-KK
INSTALLATION INSTRUCTIONS
PARTS/TOOLS NEEDED:
| Sheen™ Low Profile Light | Two #8 Pan head screws (Not Provided) |
 |  |
| Protective Grommet (Not Provided) | Power Drill |
 |  |
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- It is recommended that fuse protection be added to the positive (+) input.
- Ensure the intended area for mounting is large enough to fit the light and bezel per the dimensions shown in figure 1.
*Ensure the area behind the light is sealed location.

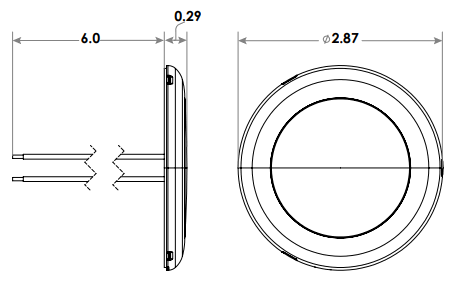

Figure 1
- The wire exit is centered in the light. First mark the location on the mounting surface for wire entry. A 3/8” diameter hole is recommended for wire entry. If mounting to a metal ceiling material, ITC recommends using a protective grommet to protect the wires from cutting or fraying over time. Hole size may need to be larger depending on use of grommet.
- Place light over wire entry hole and use the mounting screw holes as a template to mark the locations of the 2 screw locations. ITC recommends a #8 Pan head screw for mounting.
- Make wire connections to vehicle wiring system using the diagram.
See wiring diagram

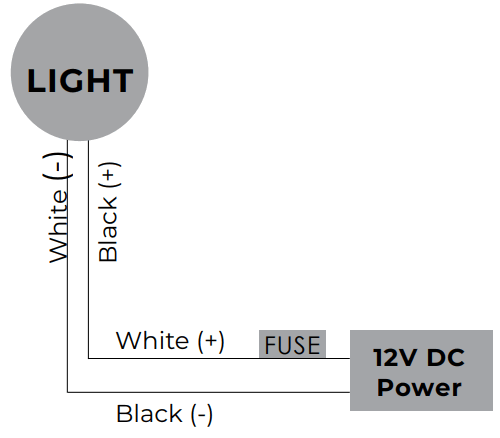

Wiring Diagram
- Secure light to ceiling using customer supplied #8 pan head screws

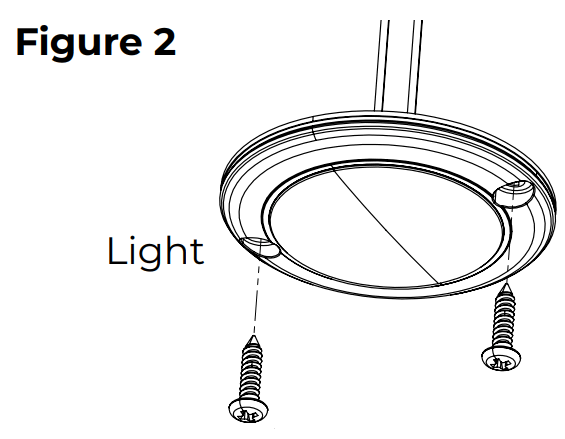

See figure 2
- Snap the bezel into the mounted light assembly. Ensure all snaps have fully engaged to secure bezel to the light.

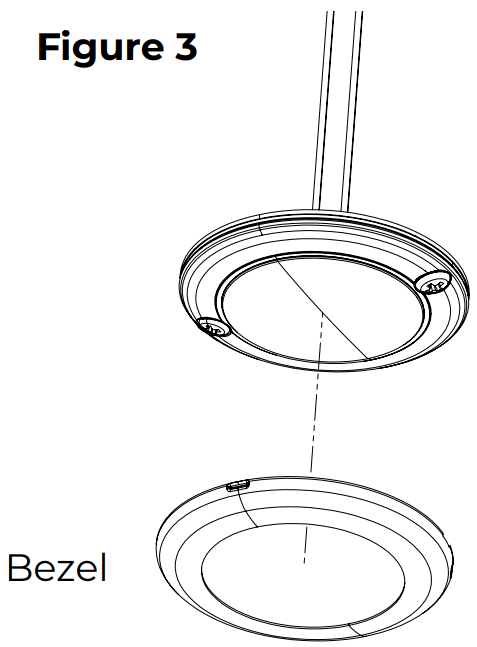

See figure 3
For warranty information please visit www.itc-us.com/warranty-return-policy
DOC #: 710-00097 • Rev B •11/16/2022
