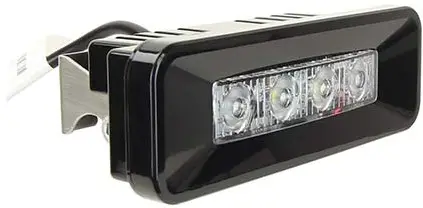

itC 791X-FF-KKKK Spreader Light

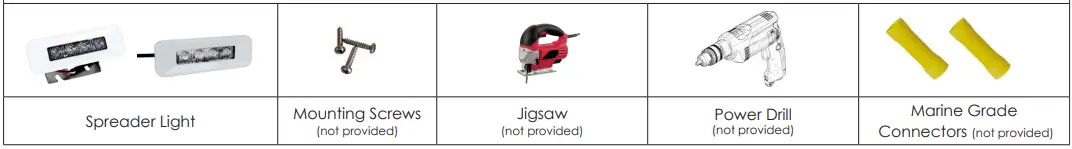

PARTS/TOOLS NEEDED
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- It is recommended that fuse protection be added to the positive (+) input.
OPERATING INSTRUCTIONS
Turn power on and then off again to toggle through the different colors and brightness levels. Brightness/color levels will be as follows:
| Color Option | Cycle Order |
| 6300K | 30% white / full white |
| Blue/6300K | 20% blue / full blue / 40% white / full white |
| Red/6300K | 20% red / full red / 40% white / full white |

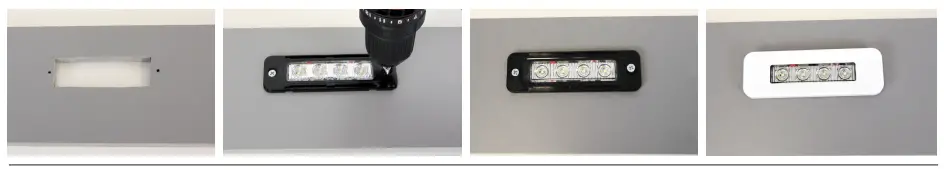

- Surface Mount Version:
- Determine the installation location for your light and cut a 3-⅞”W x 1-⅜”H hole.
- Mark the screw holes and pre-drill.
- Wire the light using the wiring diagram below and test before finishing the install.
- Screw the light in place.
- Snap bezel onto light.

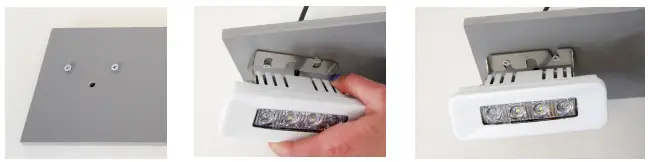

- Surface Mount Version:
- Determine the installation location for your light and mark the screw holes
- Install screws and drill a hole for the wiring.
- Wire the light using the wiring diagram below and test before finishing the install.
- Rotate the light onto the screws

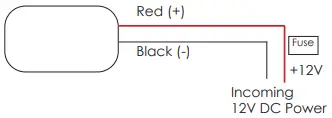

- Wire the light following the wiring diagram.
WARRANTY
For warranty information please visit www.itc-us.com/warranty
ABOUT COMPANY
- 3030 Corporate Grove Dr
- Hudsonville
- MI
- 49426
- Phone: 616-396-1355
- www.itc-us.com
- [email protected]
- DOC #: 710-00200
- Rev A • 11/04/21
