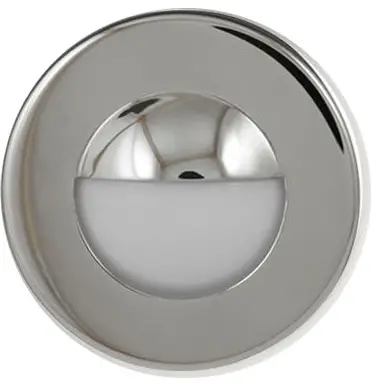

ITC 69600 Series Courtesy Light
PARTS/TOOLS NEEDED
| PARTS/TOOLS NEEDED: | |||||
 |  |  |  |
|  |
| Courtesy Light | Decorative Bezel | Mounting Screws | 2” Hole Saw Bit (not provided) | Butt Splice Connectors (not provided) | Power Drill |
INSTALLATION INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
Disconnect power before installing, adding or changing any component.
To avoid a hazard to children, account for all parts and destroy all packing materials.

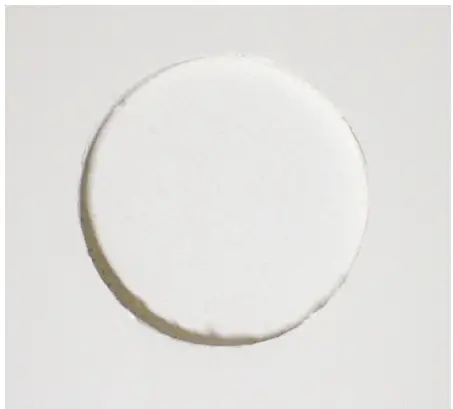

- Determine the installation location for your light. Once determined drill a 2” hole using a hole saw.

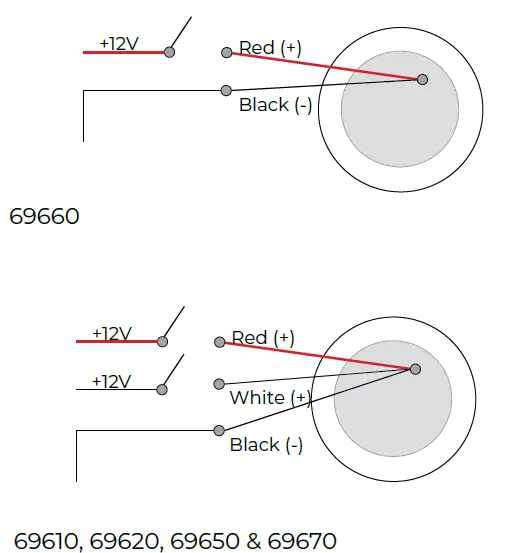

- Wire the light following the wiring diagrams be low.
If using a two wire version a standard switch can be used. The light should be turned off and on to cycle through the colors.
If the light is off for more than 30 seconds it will restart the cycle.
If using a three wire version, a three position switch will be required.

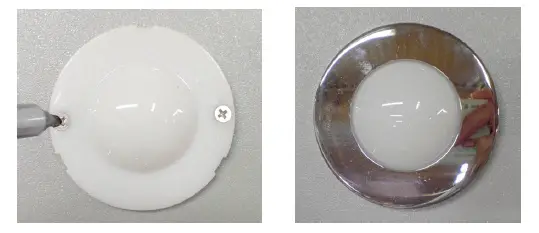

- Feed wires back through the hole and screw the light in place using the screws provided. Attach the bezel by lining up the cutouts and rotating until in snaps in place.
3030 Corporate Grove Dr. Hudsonville, MI 49426 Phone: 616.396.1355 to-us.com
warranty
For warranty information please visit www.itc-us.com/warranty-return-policy
Rev C • 09/24/20
