Cluster Courtesy Light
Part#: 69600
INSTALLATION INSTRUCTIONS
PARTS NEEDED:
|
|
|
|

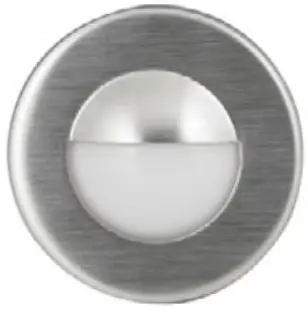

Courtesy Light

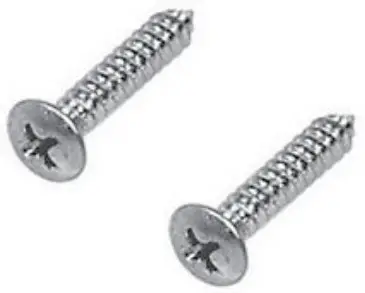

Mounting Screws

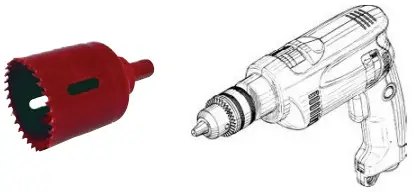

Power Drill w/ Hole Saw Bit
Butt SplicesSafety Instructions
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- Do not install any luminaire assembly closer than 6” from any combustible materials.
- It is recommended that fuse protection be added to the positive (+) input.

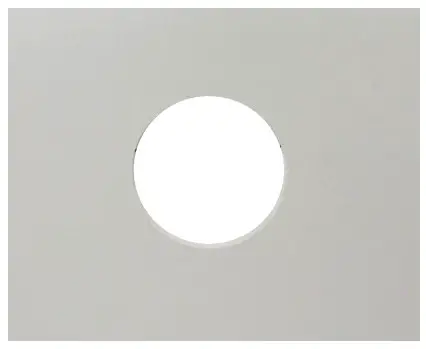

- Determine where your LED light fixture will be installed. Once determined, drill a 2” hole using a hole saw.

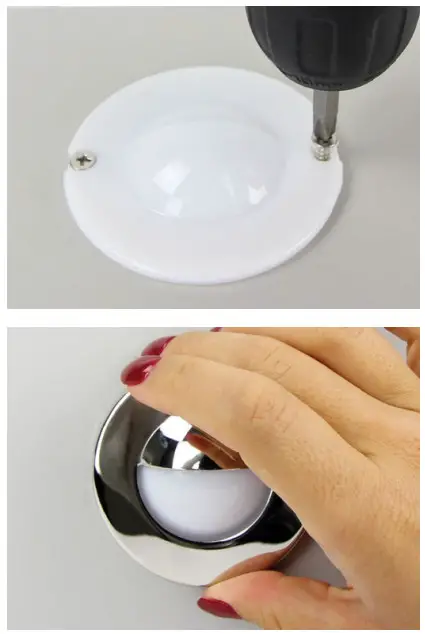

- Mark location of screw holes and pre-drill. Screw in fixture and snap bezel onto the light.

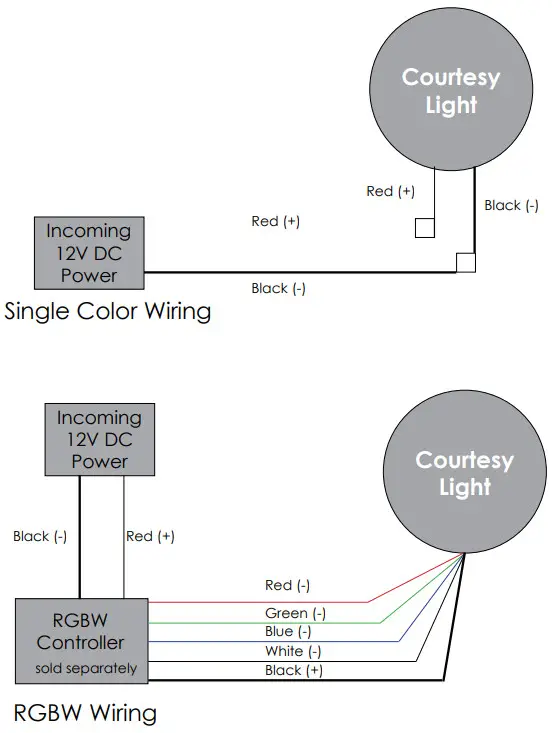

- Use the wiring diagram below to wire the light to the units power. Test the light.
3030 Corporate Grove Dr.
Hudsonville, MI 49426
Phone: 616.396.1355
itc-us.com
For warranty information please visit
www.itc-us.com/warranty-return-policy
Rev A • 04/07/20
