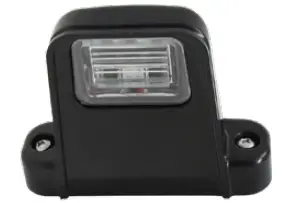

ITC 69270-XX License Plate Light
PARTS/TOOLS NEEDED
 | Affix with screws appropriate in length and thread for the mounting surface. Lamp mounting features sized for #6, or #8 pan head screws. | Power Drill | Butt Splices & Application-Specific Sealant |
| License Plate Light | Not Provided | Not Provided | Not Provided |
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- It is recommended that fuse protection be added to the positive (+) input.
DOT: 8 Lux min on plate. Light must be mounted 3-4” to the side of license plate.
- Determine the installation location drill a hole for the wires then align the light in the wire hole and use the light to mark screw holes. Drill appropriate-sized holes for mounting screws.

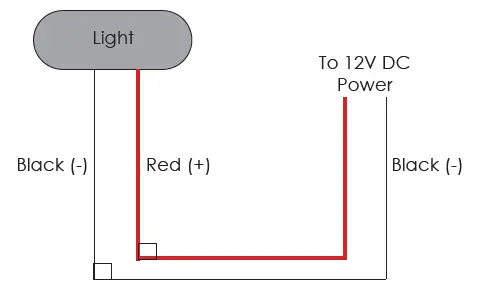

- Follow the wiring diagram below to wire the light to your system.
- Feed the wires back through the hole and use application specific sealant around wire hole.

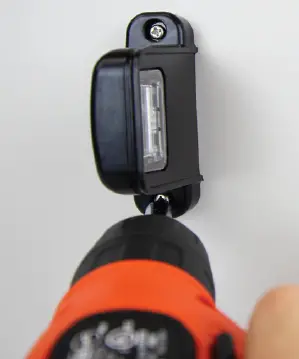

- Screw the light in place using the screws provided.
CONTACT
- 3030 Corporate Grove Dr.
- Hudsonville, MI 49426
- Phone: 616.396.1355
- itc-us.com
For warranty information please visit www.itc-us.com/warranty-return-policy
DOC #: 710-00178
Rev B 11/02/2022
