3.5” Radiance ™ Light
Part#: 69343
INSTALLATION INSTRUCTIONS
| PARTS/TOOLS NEEDED: | ||
 |  |  |

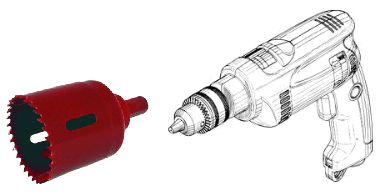

| Radiance Overhead Light | Butt Splice Connectors (not provided) | Power Drill w/ Hole Saw Bit |
Safety Instructions
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- Light is rated for interior installation only, do not install in wet locations.
- Operating Voltage: 10 – 14V DC
- Determine the installation location and drill a hole.
Mounting Method Cut out Leaf Spring/Spring 2-⅝” Screw 2-½”

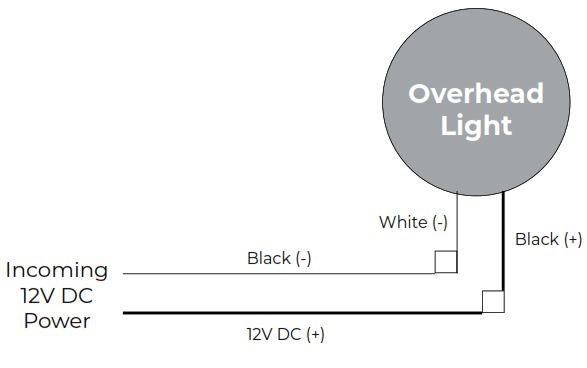

- Using the wiring diagram below to wire the light to the units power.
- Install and test the light.
3030 Corporate Grove Dr.
Hudsonville, MI 49426
Phone: 616.396.1355
itc-us.com
For warranty information please visit www.itc-us.com/warranty-return-policy
DOC #: 710-00077 • Rev A • 06/06/18
