Radiance™ Surface
Mount Light
Part#: 69253, 69353, and 69453
INSTALLATION INSTRUCTIONS
69253 Radiance Surface Mount Light
| PARTS/TOOLS NEEDED: | |||
 |  |  |  |
| Radiance Overhead Light | #8 Mounting Screws (Not Provided) | Butt Splice Connectors (Not Provided) | Power Drill (Not Provided) |
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- It is recommended that fuse protection be added to the positive (+) input.

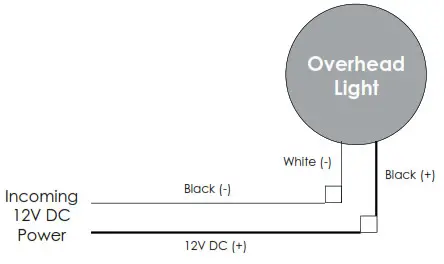

- Determine the installation location and mark the location of the screw holes. Drill a hole and pull the units wiring though. Using the wiring diagram at the right to wire the light to the units power.

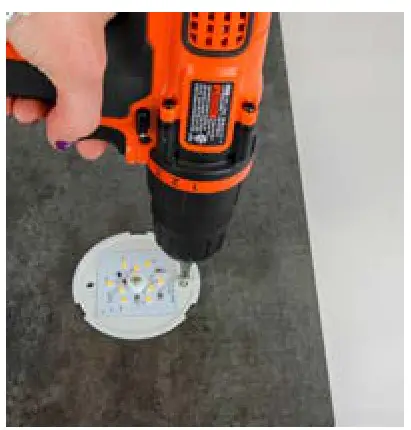

- Feed the wired back through the hole and screw the light in using #8 screws (Not Provided). Install the les and test the light.
3030 Corporate Grove Dr.
Hudsonville, MI 49426
Phone: 616.396.1355
itc-us.com
For warranty information please visit www.itc-us.com/warranty-return-policy
DOC #: 710-0007
Rev B
11/22/22
