Guide PIR Light
Part#: 690030.055-XX or 690030.056-XX
INSTALLATION INSTRUCTIONS
PARTS/TOOLS NEEDED:
 | Guide Light |
 | #8 Pan Head Mounting Screws (Not Provided) |
 | Butt Splices (Not Provided) |
 | Power Drill (Not Provided) |
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- It is recommended that fuse protection be added to the positive (+) input.
- Determine the installation location per the viewing angle and distance, Drill 1/2” hole for the wiring. Drill pilot holes sized for the mounting screws.
- Feed the wires through the hole and connect per diagram below. Screw the light in place. Snap the decorative bezel in place.

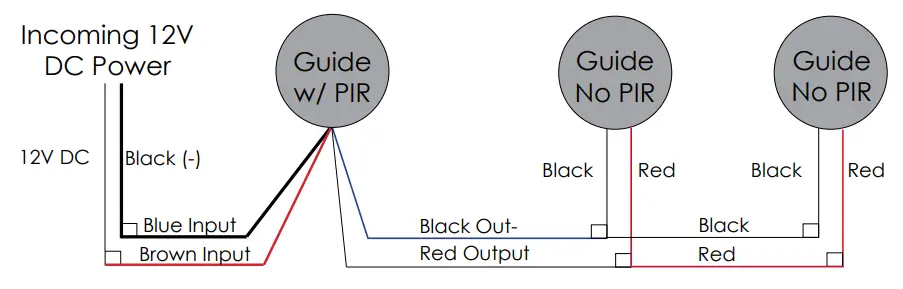

- Follow the wiring diagram below to wire the light to your system. The product is internally fused for a max current of 1A. If greater is detected the unit will shut down and power will need to be cycled to reset the unit. Note, a maximum of 20 units can be daisy chained together.

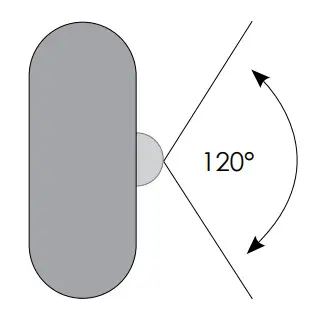

- OPERATION: The PIR Switch will turn on the lights when it senses motion and will turn off after six minutes if no motion is detected. The switch has a range of 120° and a distance of 3’ from the center of the sensor.
