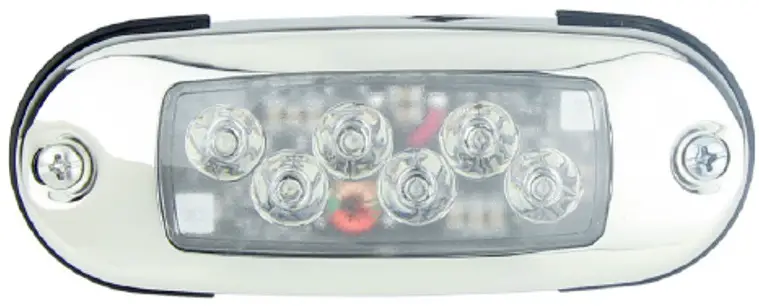

ITC 69683SS-XX Underwater Light
PARTS/TOOLS NEEDED
| PARTS / TOOLS NEEDED: | |||
 |  |  |
|
| Underwater Light | RGB Controller (RGB version only) | Power Drill w/ Hole Saw Bit | Butt Splices (not provided) |
Safety Instructions
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- Do not install any luminaire assembly closer than 6” from any combustible materials.
- Positive (+) outputs require a fuse if the attached wire leads are not rated to handle the max current.
INSTALLATION

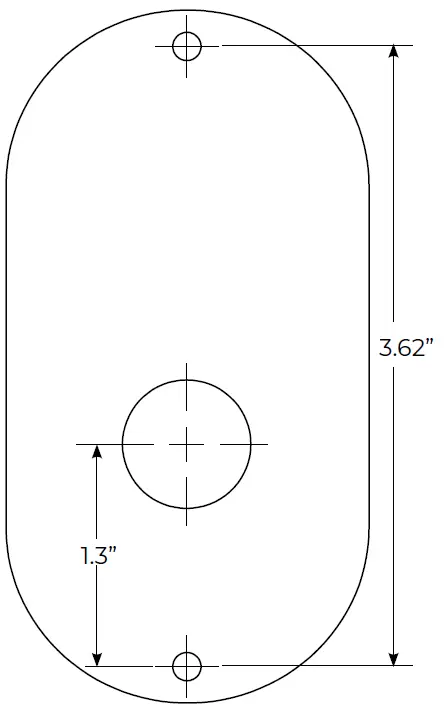

- Determine the installation location and mark the location using the provided template. You can also mark the hole locations using the light itself.

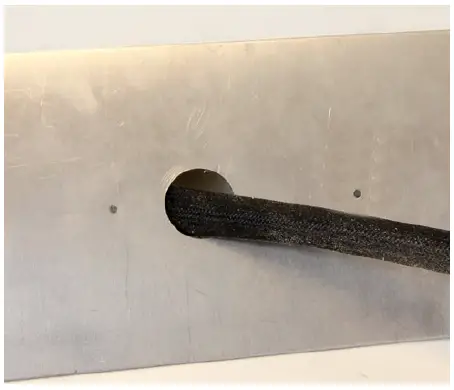

- Drill a 3/4” hole to accommodate the wiring. Feed wires through the hole.

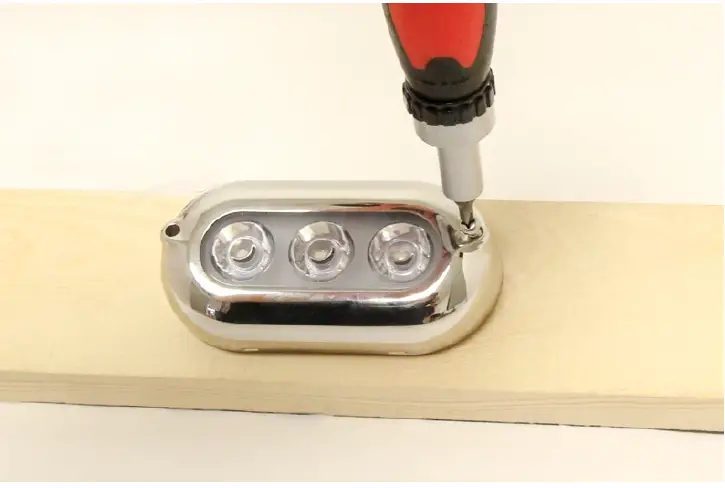

- Drill two holes for M4 screws sized appropriately for the sub- strate material used. Snap on the bezel and screw the light in place using the provided screws.
- Follow the wiring diagram below to wire the light to your system.

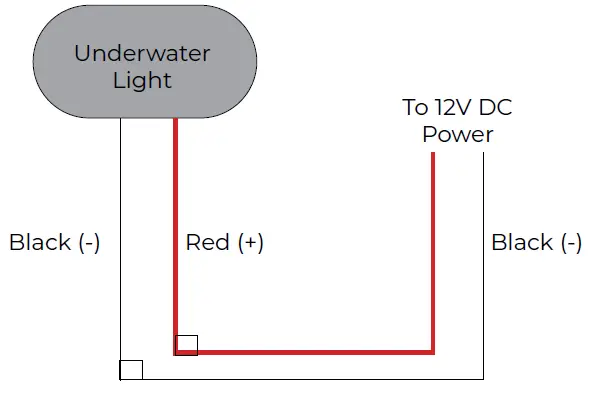

Single Color Light

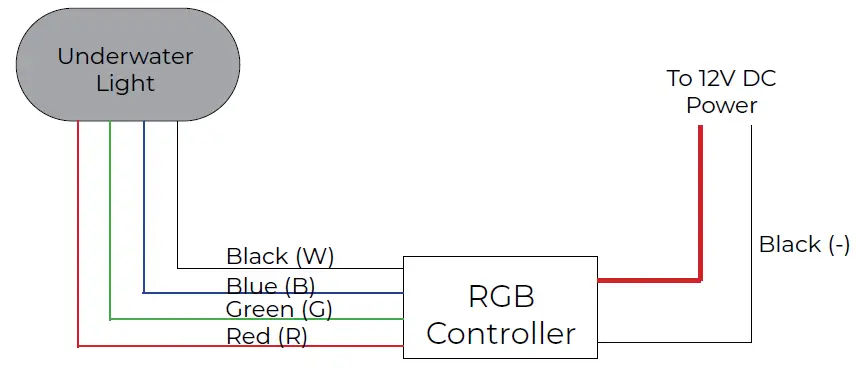

RGB Light
3030 Corporate Grove Dr. Hudsonville, MI 49426 Phone: 616.396.1355
itc-us.com.
Warranty
For warranty information please visit www.itc-us.com/warranty-return-policy DOC #: 710-00031 • Rev C • 11/29/18.
