Marine 66UW03B-7 LightArmor HPX Underwater Light – 3 LED Blue
Owner’s Manual
LED Underwater Lights
LIGHTARMOR™ LED Underwater Lights
66UW03B-7 LightArmor HPX Underwater Light – 3 LED Blue
Introducing LightArmor™ Underwater Lights from Attwood, a new line of premium surface-mount LED lights that are engineered to be the brightest and most durable lights in the industry. Like all LightArmorTM products, they’re technically advanced, built to perform in the harshest marine environments, and backed by an industry-leading 5-year warranty.

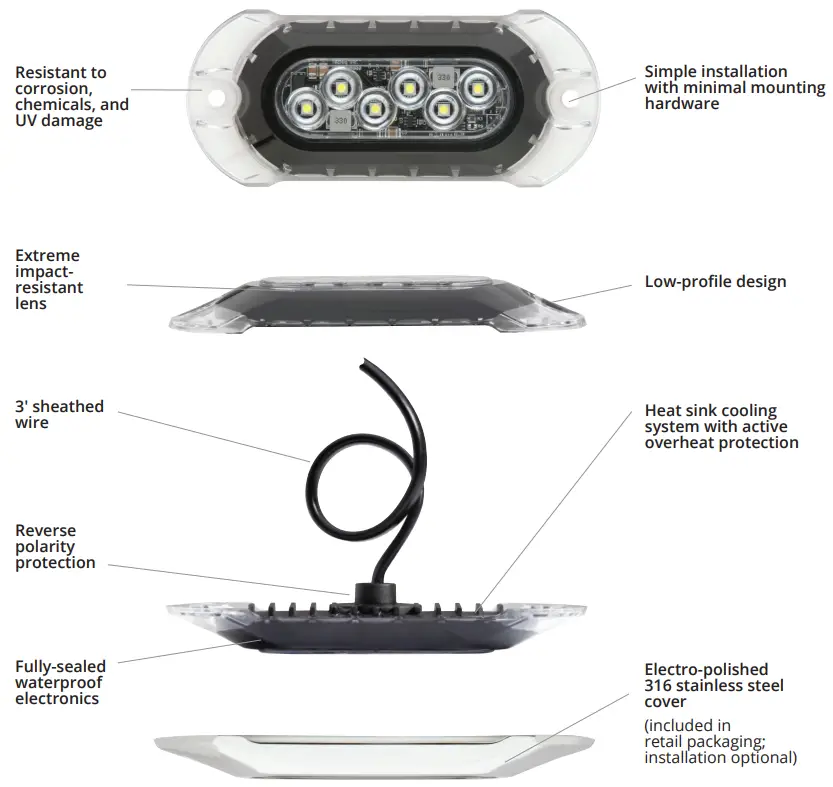

- 12V and 24V DC systems
- Intelligently engineered for strength and durability
- Exclusive Heat-Sync Cooling System with Active Overheat Protection
- Resistant to corrosion, chemicals, and UV damage
- Extreme impact-resistant lens
- 3 ft. sheathed wire
- Reverse polarity protection
- Fully-sealed waterproof electronics
- Simple installation with minimal mounting hardware
- Low-profile design
- Electro-polished 316 stainless steel cover (Optional for OEM)
- CE certified

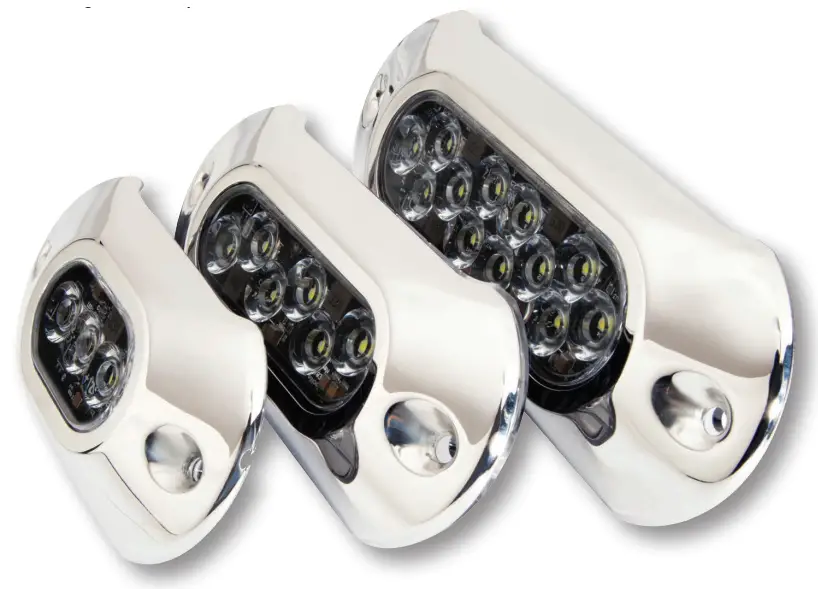

Three popular sizes – 4″, 5″, 6″

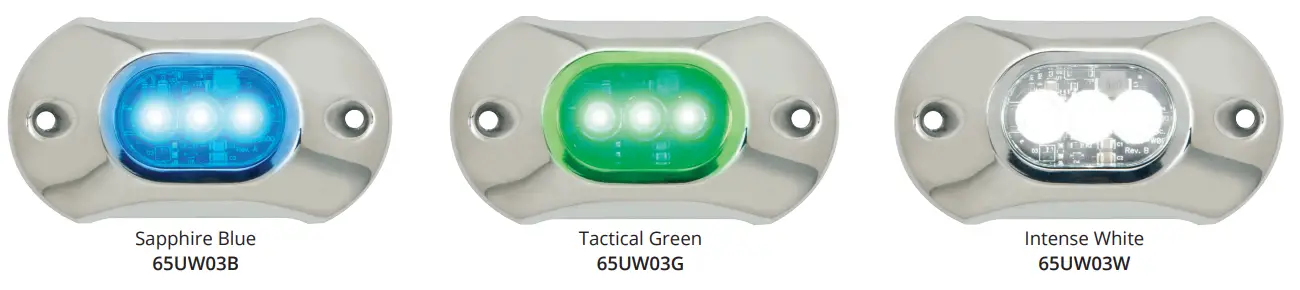

Three vibrant colors – Sapphire Blue, Intense White, Tactical Green
Two performance levels – High Performance (HP), Extreme High Performance (HPX)
Note: All Light Armor Underwater lights MUST BE MOUNTED UNDER WATER LINE. Only work underwater.

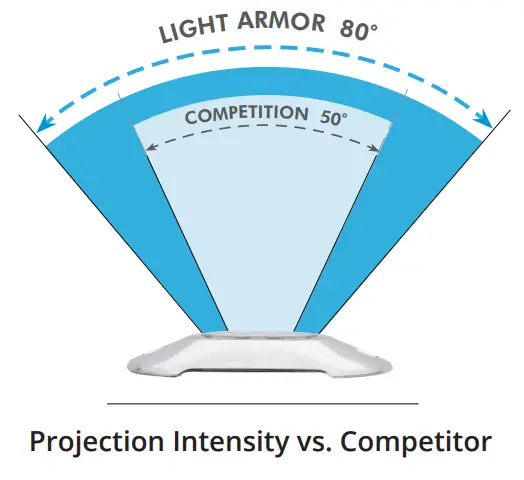

Outshining the Competition.
LIGHTARMOR™ Underwater Lights are the brightest on the market.
LIGHTARMOR™ LED Underwater Lights
NOTE: Bulk packaging does not include covers and aftermarket packaging does include covers.
| Description | Color | Fixture Lumens* | Current Draw at13.6V | Current Draw at24V | OEM Part # | Part # |
| High Performance (HP) | ||||||
| 4.0 HP – 4″ length, 3 LED | Sapphire Blue | 800 | 0.32 | 0.16 | 65UW03B-1 | 65UW03B-7 |
| Tactical Green | 0.36 | 0.18 | 65UW03G-1 | 65UW03G-7 | ||
| Intense White | 0.64 | 0.32 | 65UWO3W-1 | 65UW03W-7 | ||
| 5.0 HP – 5″ length, 6 LED | Sapphire Blue | 1,350 | 0.66 | 0.33 | 65UW06B-1 | 65UW06B-7 |
| Tactical Green | 0.71 | 0.36 | 65UW06G-1 | 65UW06G-7 | ||
| Intense White | 1. | 0.63 | 65UW06W-1 | 65UW06W-7 | ||
| 6.0 HP – 6″ length, 12 LED | Sapphire Blue | 1,650 | 1. | 0.66 | 65UW12B-1 | 65UW12B-7 |
| Intense White | 3. | 1. | 65UW12W-7 | 65UW12W-7 | ||
| Extreme High Performance (HPX) | ||||||
| 4.0 HPX – 4″ length, 3 LED | Sapphire Blue | 1,350 | 0.64 | 0.32 | 66UW03B-7 | |
| 5.0 HPX – 5″ length, 6 LED | Sapphire Blue | 2,750 | 1.30 | 0.65 | 66UW06B-1 | 66UW06B-7 |
| Tactical Green | 1.40 | 0.70 | 66UW06G-1 | |||
| Intense White | 2. | 1. | 66UW06W-1 | |||
| 6.0 HPX – 6″ length, 12 LED | Sapphire Blue | 5,000 | 3. | 1.30 | 66UW12B-1 | 66UW12B-7 |
| Intense White | 4.50 | 2. | 66UW12W-1 | 66UW12W-7 | ||
| Optional Covers – For OEM only (Aftermarket packaged r roduct includes 316 Stainless Steel Cover) | ||||||
| 4.0 HP/HPX Cover | Stainless Steel | 65UWO3CVSS-1 | ||||
| 5.0 HP/HPX Cover | Stainless Steel | 65UWO6CVSS-1 | ||||
| 6.0 HP/HPX Cover | Stainless Steel | 65UW12CVSS-1 | ||||

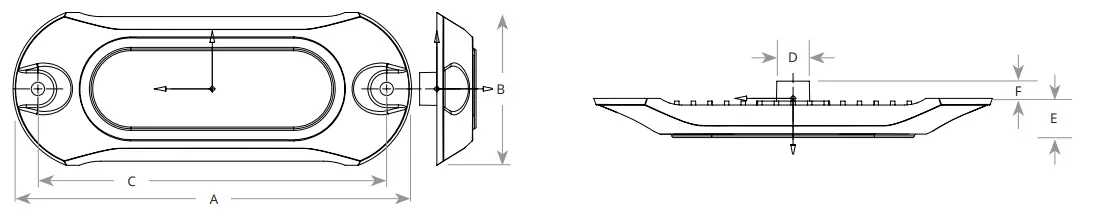

Dimensions
Dimensions| Model | Length (A) | Width (B) | Distance Between Mounting Holes (C) | Diameter of Wiring Hold (D) | Installed Product Height (E) | Wire Colar Depth (F) |
| 4.0 HP | 4.00″ | 2.15″ | 3.25″ | .56″ | .56″ | .30″ |
| 4.0 HPX | 4.00″ | 2.15″ | 3.25″ | .56″ | .56″ | .30″ |
| 5.0 HP | 5.00″ | 2.15″ | 4.25″ | .56″ | .56″ | .30″ |
| 5.0 HPX | 5.00″ | 2.15″ | 4.25″ | .56″ | .56″ | .30″ |
| 6.0 HP | 6.00″ | 2.35″ | 5.25″ | .56″ | .56″ | .30″ |
| 6.0 HPX | 6.00″ | 2.35″ | 5.25″ | .56″ | .56″ | .30″ |
