ITC 69553 Decor Overhead Light

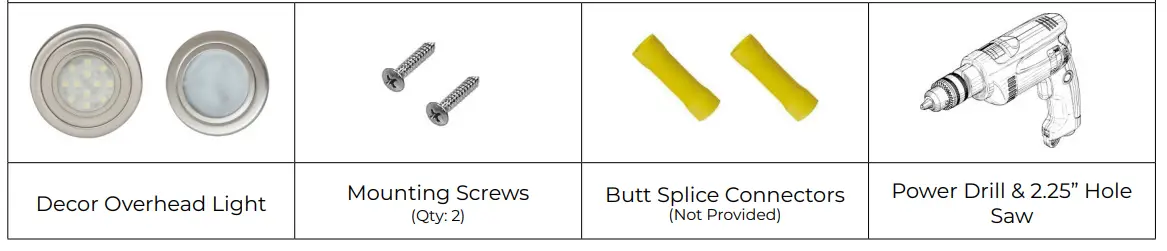

PARTS/TOOLS NEEDED
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- It is recommended that fuse protection be added to the positive(+) input.

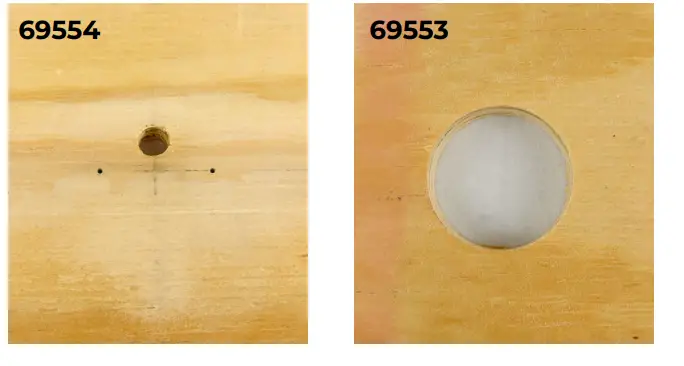

- 69554 | Determine the installation location and use the bezel to mark the location of the screw holes and wiring hole. 69553 | cut out 2.25” hole for light.

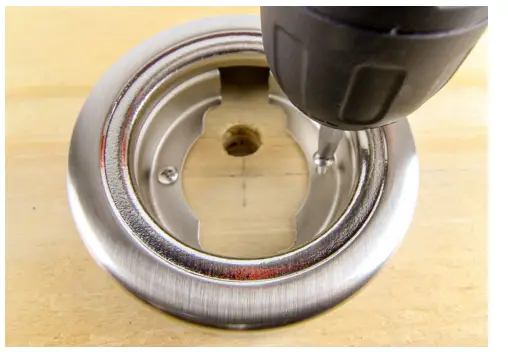

- 69554 | Drill a hole and pull the units wiring through. Screw down the bezel using the provided screws.

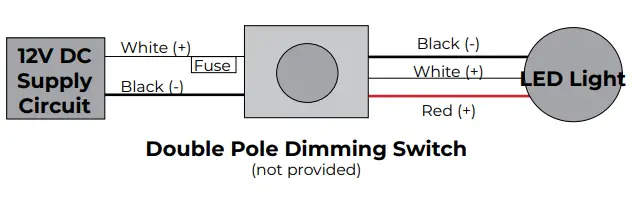

- 69554 & 69553 |Using the wiring diagrams below, wire the light to a three-way switch and your incoming 12V DC power. Test the light.

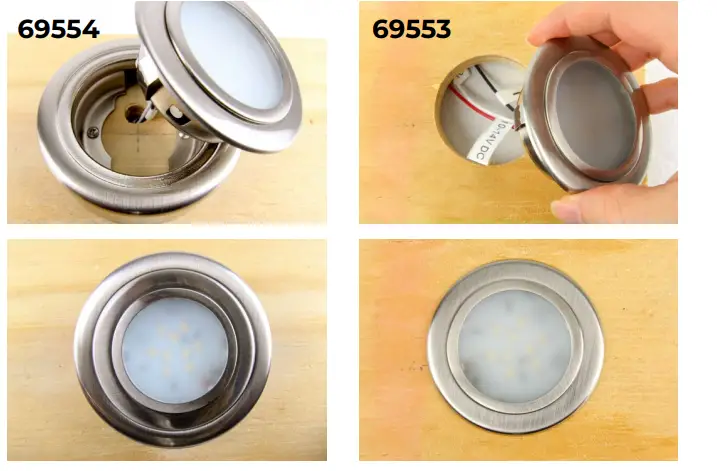

- 69554 |Feed the wires back through the hole and push the light into the bezel. 69553 |Push light into hole.
3030 Corporate Grove Dr.
Hudsonville, MI 49426 Phone: 616.396.1355 itc-us.com
For warranty information please visit www.itc-us.com/warranty-return-policy DOC #: 710-00105 • Rev A • 04/08/19
