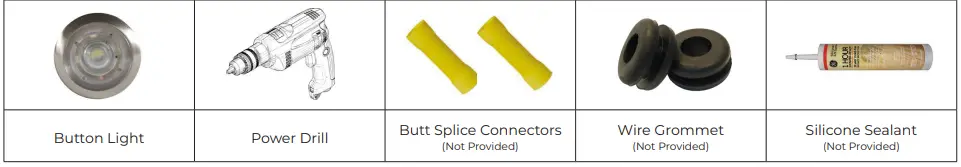

PARTS/TOOLS NEEDED
INSTALLATION CONSIDERATIONS
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- It is recommended that fuse protection be added to the positive (+) input.

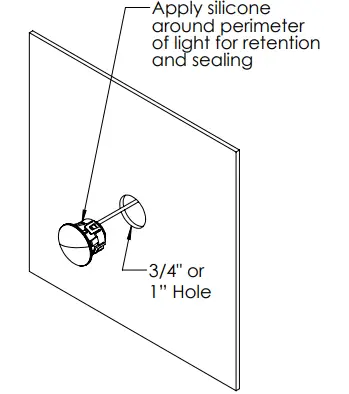

- Drill a 3/4” hole (or 1” if using the decorative collar) in your mounting surface. To prevent damage to the wires install a wire grommet.

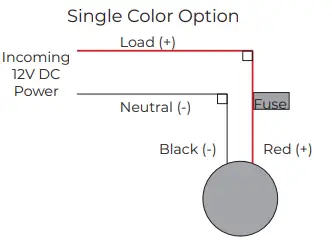

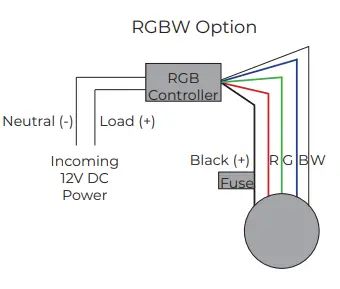

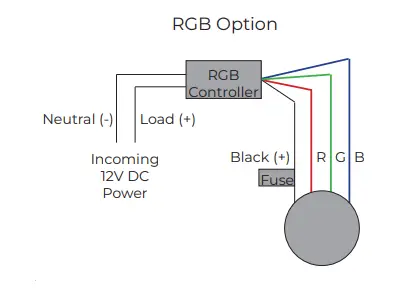

- Wire the light based on the wiring diagram. Feed wires back into the hole and push the light in place. Use silicone sealant to hold it in place.
