PARTS/TOOLS NEEDED
Safety Instructions
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- Do not install any luminaire assembly closer than 6” from any combustible materials.
- Determine your installation location and mark the location using the provided template. Once marked cut out the hole.

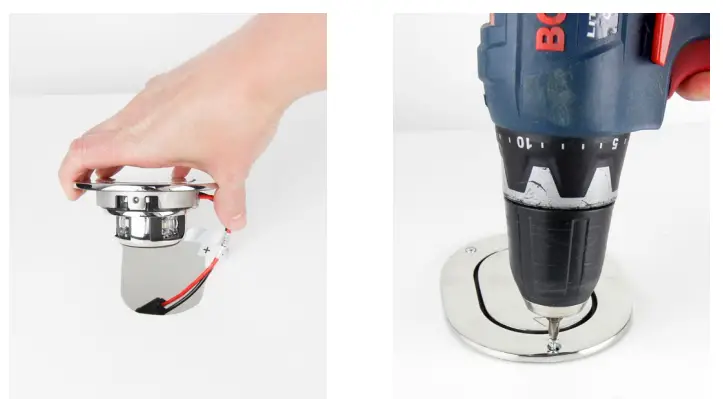

- Insert the light into the hole and screw in using stainless steel screws.

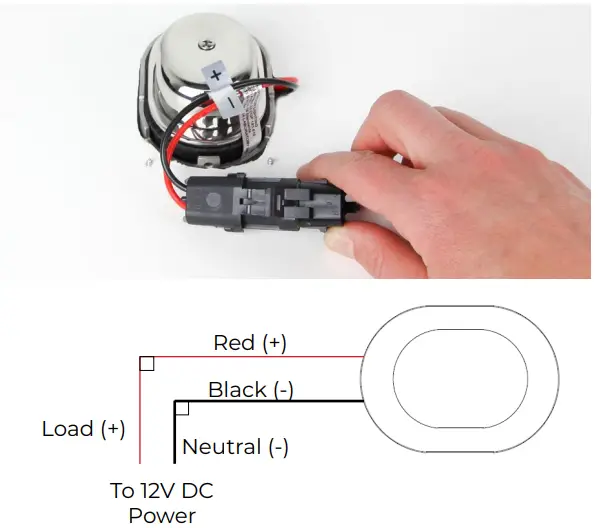

- Attach the male connector on the light (Delphi – 12010973) with the female connector (Delphi – 12015792)on the boat or follow the wiring diagram below.

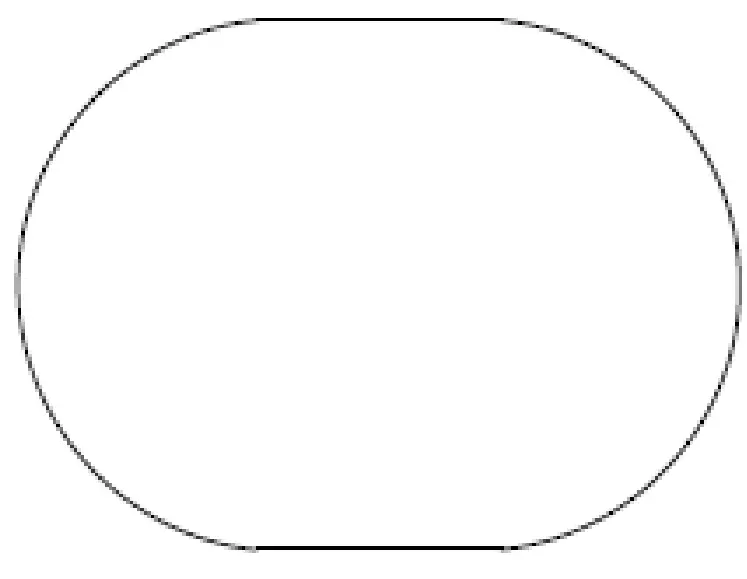

- Cut out the template below to use as a guide for your hole
3030 Corporate Grove Dr.
Hudsonville, MI 49426
Phone: 616.396.1355
itc-us.com
For warranty information please visit www.itc-us.com/warranty-return-policy DOC #: 710-00022 • Rev B • 12/14/17
