ASSEMBLY INSTRUCTIONS
Pantop Portable
Design by VERNER PANTON
Please read thoroughly before use
AZ666937 Portable Pantop Light

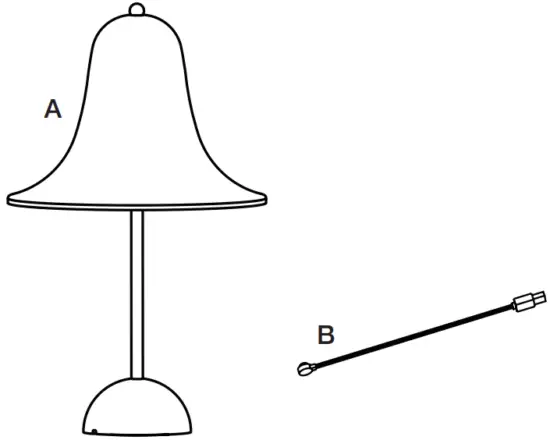

| 1 |  | CONTENT: A PANTON TABLE LAMP. THE LAMP IS DELIVERED FULLY ASSEMBLED. B USB CHARGING CABLE |

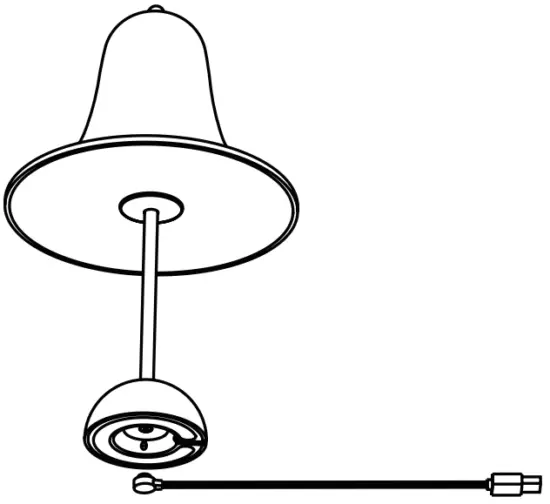

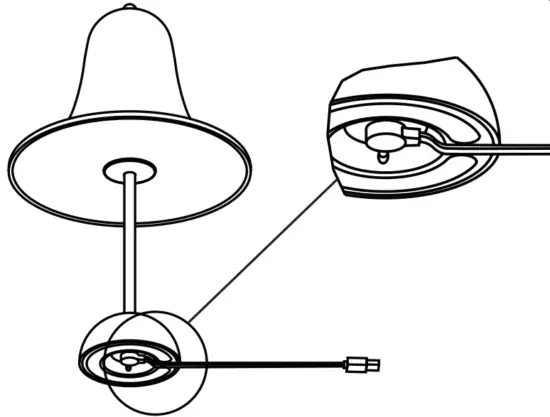

| 2 |  | BEFORE USE, THE BATTERY IN THE LAMP MUST BE FULLY CHARGED. PLACE THE MAGNETIC CHARGING CABLE AT THE BOTTOM OF THE LAMP. CONNECT THE USB CABLE TO A POWER SUPPLY. |
| 3 |  | CHARGING: RED LIGHT FULLY CHARGED: GREENLIGHT |

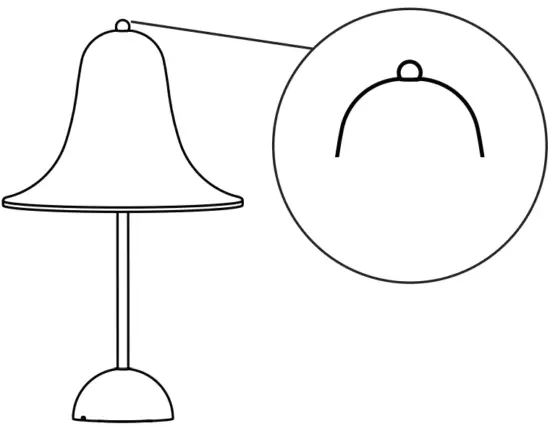

| 4 |  | THE LIGHT INTENSITY OF THE THE LAMP CAN BE ADJUSTED BY TOUCHING THE DIMMER KNOB ON THE TOP OF THE LAMP. THE LAMP HAS 3 LIGHT INTENSITY LEVELS: 100%, 70% AND 30%. |
IMPORTANT:
– THIS LAMP IS FOR INDOOR USE ONLY. IT CAN BE TAKEN OUTDOORS BUT MUST BE KEPT AND STORED INDOORS.
– BATTERIES MUST BE DISPOSED OF ACCORDING TO LOCAL ENVIRONMENTAL LAWS FOR WASTE DISPOSAL.
– WIPE THE SURFACE WITH A SOFT, DAMP CLOTH, AND WIPE IMMEDIATELY WITH A DRY CLOTH. DO NOT USE ANY ABRASIVE CLEANING TOOLS. – THE BATTERY MUST BE REMOVED FROM THE LAMP BEFORE IT IS SCRAPPED; THE APPLIANCE MUST BE DISCONNECTED FROM THE SUPPLY MAINS WHEN REMOVING THE BATTERY; THE BATTERY MUST BE DISPOSED OF SAFELY.
– IF THE EXTERNAL FLEXIBLE CABLE OR CORD OF THIS LUMINAIRE IS DAMAGED, IT SHALL BE REPLACED BY A SPECIAL CORD OR CORD EXCLUSIVELY AVAILABLE FROM THE MANUFACTURER OR HIS SERVICE AGENT.
– THE PRODUCT SHALL BE SUPPLIED BY AN EXTERNAL SELV CONTROLLER WITH 5V MIN. 1A OUTPUT.
- INPUT MICRO USB CABLE 5.0 = 1A
- 1.5W LED BOARD (REPLACEABLE)
- CHARGING TIME: 5 HOURS
- OPERATION TIME IN HIGHEST SETTING: 7 HOURS
DESIGNED
IN THE PAST
MADE FOR TOMORROW
VERPAN
Egeskovvej 29
8700 Horsens
Denmark
www.verpan.com
[email protected]
