Zambelis 22043 Wall Light
OVERVIEW

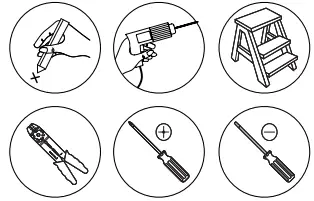

TOOLS
FEATURES
Connecting the Terminal Block
Connect main supply (brown – Live,blue – Neutral) into terminal block making sure all connections are tight.
WALL LIGHT
Please read instructions before commencing installation and retain forruture reference
SPECIFICATIONS
- Material: Metal + Aluminum + Acrylic
- Lamp type: LED , 7W. 3000K. 780Lm, CRi80
- Ingress Protection: IP20. Protection against entry of solid objects greater than 12mm in diameter.

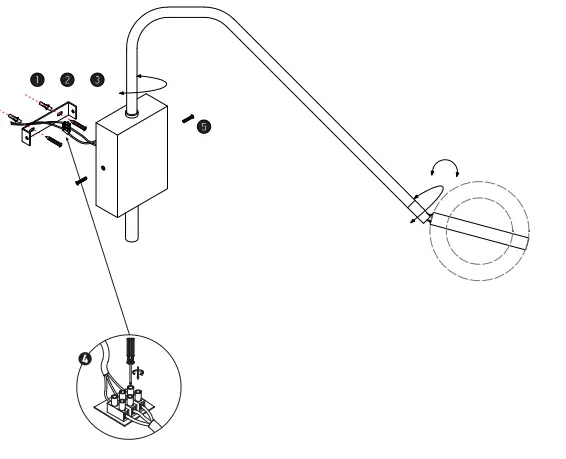

INSTALLATION INSTRUCTIONS
WARNING: Electrical products can cause death. injury. or damage to property. Maintenance and installation should onlv be carried out by orofessional electacian.
- Ensure main supply is switched oft.
- Insert the masonry plugs (1) into the mounting surface.
- Fit the mounting bracket (2) onto the mounting surface with the self-taping screws (3).
- Connect main supply wires to terminal block (4) making sure all connections are tight,
- Fit the ceiling plate onto the mounting bracket with the screws (5).
- reconnect power.
WARNING
- Make sure that the products is installed properly before connecting to electricity.
- Do not cover the fitting.
- NOT outcoor use or in we concitions.
