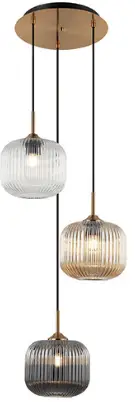

Zambelis 22073 Pendant Light
OVERVIEW
INSTALLATION
PARTS
FEATURES
Connecting the Terminal Block
Connect main supply (brown – Live, blue – Neutral) into terminal block making sure all connections are tight.

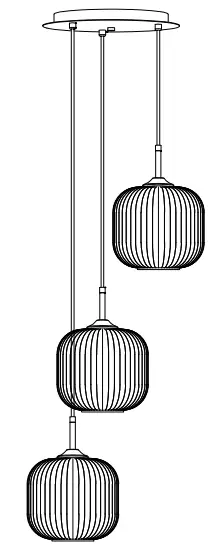

PENDANT LIGHT
Please read instructions before commencing installation and retain for future reference.
SPECIFICATIONS
- Material: Metal + Glass
- Lamp Type: 3x E27. 40W MAX / Bulb
- Ingress Protection: IP20. Protection against entry of solid objects greater than 12mm in diameter.

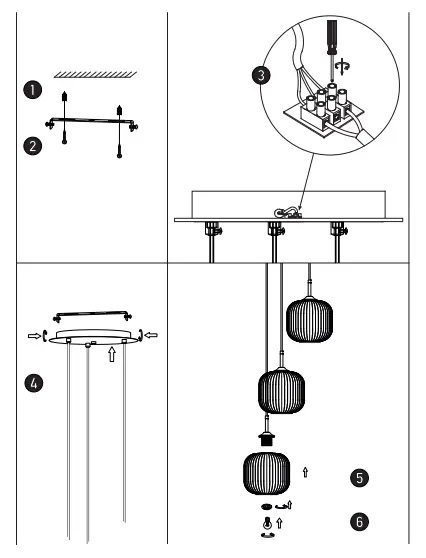

INSTALLATION INSTRUCTIONS
WARNING: Electrical products can cause death. injury. or damage to property.Maintenance and installation should only be carried out by a professional electrician.
- Ensure the main supply is switched off.
- Insert the masonry plugs into the mounting surface (1).
- Fit the mounting bracket onto the mounting surface with the self-tapping screws (2).
- Connect the main supply wires to the terminal block (3) making sure allconnections are tight.
- Fit the ceiling plate onto the mounting bracket with the screws (4).
- Use the rings to secure the glass shades on the lamp-holders (5).
- Install all E27 lamps firmly into the lamp-holders (6).
- Reconnect power.
WARNING
- Make sure that the products is installed properly before connecting to electricity.
- Do not cover the fitting.
- Not for outdoor use or in wet conditions.
- Do not exceed the maximum wattage ratting of the lamp.
