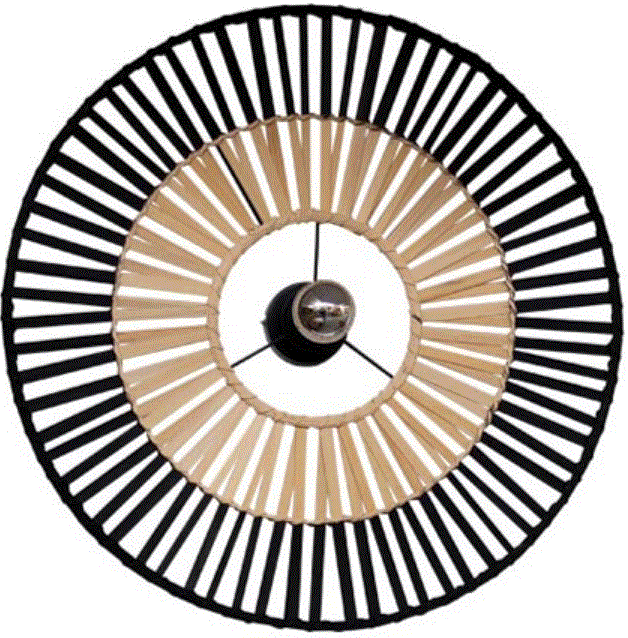

Zambelis 19252 Ceiling Wall Light
Please read the instructions before commencing installation and retain for future reference.

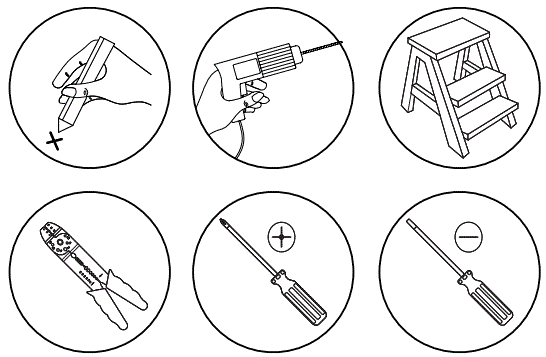

Tools
SPECIFICATIONS
- Material: Metal + Bamboo
- Lamp type: 1x E27. 40W MAX
- Ingress Protection: IP20. Protection against entry of solid objects greater than 12mm in diameter.
INSTALLATION INSTRUCTIONS
Warning: Electrical products can cause death, injury, or damage to property. Maintenance and installation should only be carried out by a professional electrician.
- Ensure main supply is switched off.
- Insert the masonry plugs (1) into the mounting surface.
- Fit the mounting bracket (2) onto the mounting surface with the self-tapping screws (3).
- Connect main supply wires to the terminal block (4) making sure all connections are tight.
- Fit the wall plate onto the mounting bracket with screws (5).
- Fit E27 lamp firmly into the lamp holder (6).
- Reconnect power.
WARNING
- Make sure that the products is installed properly before connecting to electricity.
- Do not cover the fitting.
- Not for outdoor use or in wet conditions.
- Do not exceed the maximum wattage ratting of the lamp.
Connecting the Terminal Block
- Connect main supply (brown – Live, blue – Neutral) into the terminal block making sure all connections are tight.
Symbols
