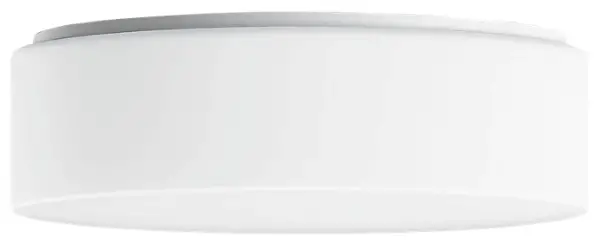

BEGA 89010 Wall Ceiling Light

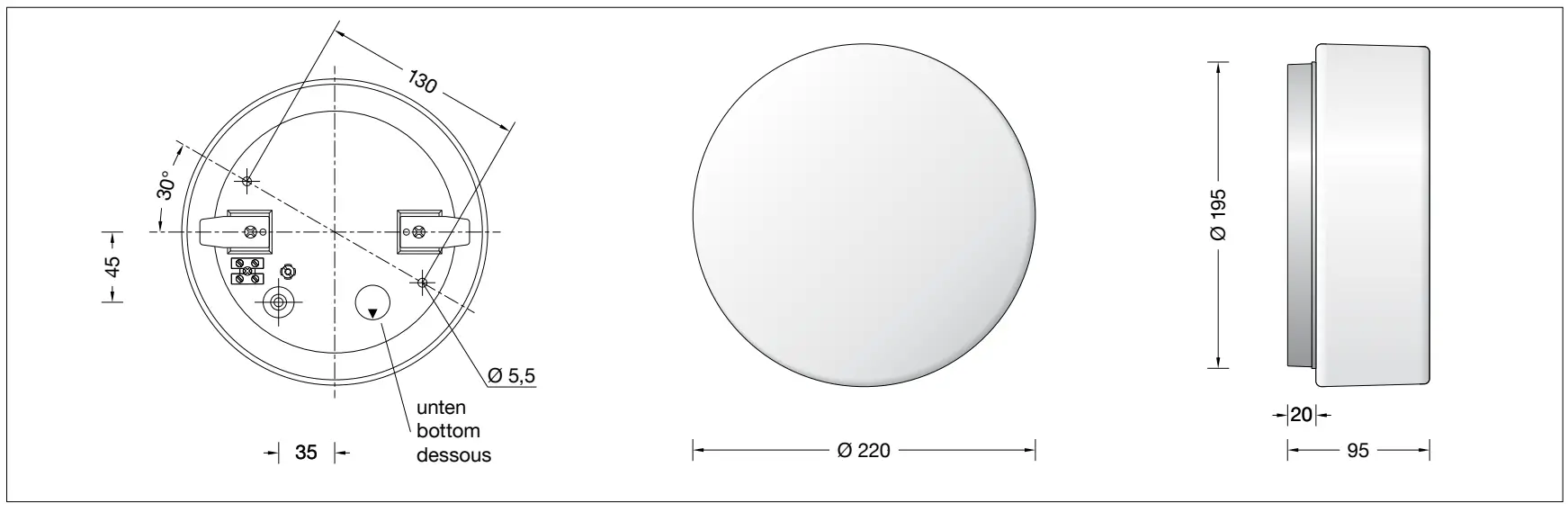

Dimension

Instructions for use

Application

Ceiling and wall luminaire · indoor luminaire made of hand-blown opal glass, satin matt and
metal housing, for all lighting tasks. They are ideal for places where a soft and uniform lighting distribution is required.
Luminaire with a high protection class.

Lamp

Luminaire with screw base E 27
Lamp output max. 75 W
This product contains light sources of energy efficiency classes E, F

Supplied lamp
BEGA LED lamp 13548
LED 7 W · 805 lm · 2700 K dimmable

Supplied lamp
BEGA LED lamp 13586
LED 7 W · 805 lm · 3000 K dimmable

Luminaire efficiency: 69%

Detailed technical and lighting data for the lamps can be found in the data sheets on our website.

Product description

Aluminium alloy housing, finish Colour white
Hand-blown opal glass, satin matt, with sliding-bolt closure
2 mounting holes ø 5.5mm
Distance apart 130mm
1 cable entry for mains supply cable
up to ø 10.5 mm max. 3 x 1.5◦
Connection terminal 2.5◦
Earth conductor connection
Lamp holder E 27
Safety class I
Protection class IP 44
Protected against granular foreign bodies
≥ 1 mm and splash water
Impact strength IK02
Protection against mechanical
impacts < 0.2 joule
– Safety mark
– Conformity mark
Weight: 1.3 kg

Safety

The installation and operation of this luminaire are subject to national safety regulations.
Installation and commissioning may only be carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation.
If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.

Installation

Lead mains supply cable through the cable entry into the luminaire housing.
Notice position of application »arrow down« when installed at the wall.
Fix the luminaire housing with enclosed or any other suitable fixing material onto the mounting surface.
It is imperative to use the enclosed gaskets.
Make earth conductor connection.
Push silicone sleeves over the lines and make electrical connection.
Insert lamp.
Place glass to the luminaire housing and observe that the holding spring bolts fit into the notches of the glass.
Turn the glass clockwise until it is locked.
Thus, you reach a safe and vibration-resistant holding of the glass.
To release the glass from the luminaire housing, turn it counter-clockwise.

Relamping · Maintenance

Disconnect the electrical installation.
To release the glass from the housing, turn it counter-clockwise.
Clean luminaire and glass.
Use only solvent-free cleansers. Change the lamp.
The sliding-bolt closure provides a safe and vibration-resistant holding of glass.
Place glass to the housing and observe that the holding spring bolts fit into the notches of the glass.
Turn the glass clockwise until it is locked.

Spares

Customer Service

2/2 BEGA Gantenbrink-Leuchten KG · Postfach 3160 · 58689 Menden · [email protected] · www.bega.com
