Bega 89759.2 Ceiling And Wall Luminaire Instruction Manual

89 759.2
Ceiling and wall luminaire for indoor use
IP 44
Instructions for use

Application

Ceiling and wall luminaire · indoor luminaire made of hand-blown opal glass, satin matt and metal housing, for all lighting tasks.
They are ideal for places where a soft and uniform lighting distribution is required.
Luminaire with a high protection class.

Lamp

Luminaire with screw base E 27
Lamp output max. 75 W
This product contains light sources of energy efficiency class E
Supplied lamp
BEGA LED lamp 13548
LED Retrofit 7 W · 805 lm · 2700 K dimmable
Supplied lamp
BEGA LED lamp 13586
LED Retrofit 7 W · 805 lm · 3000 K dimmable
Luminaire efficiency: 54%
Detailed technical and lighting data for the lamps can be found in the data sheets on our website.

Product description

Metal housing, finish Colour white aluminium
Hand-blown opal glass, satin matt, with sliding-bolt closure

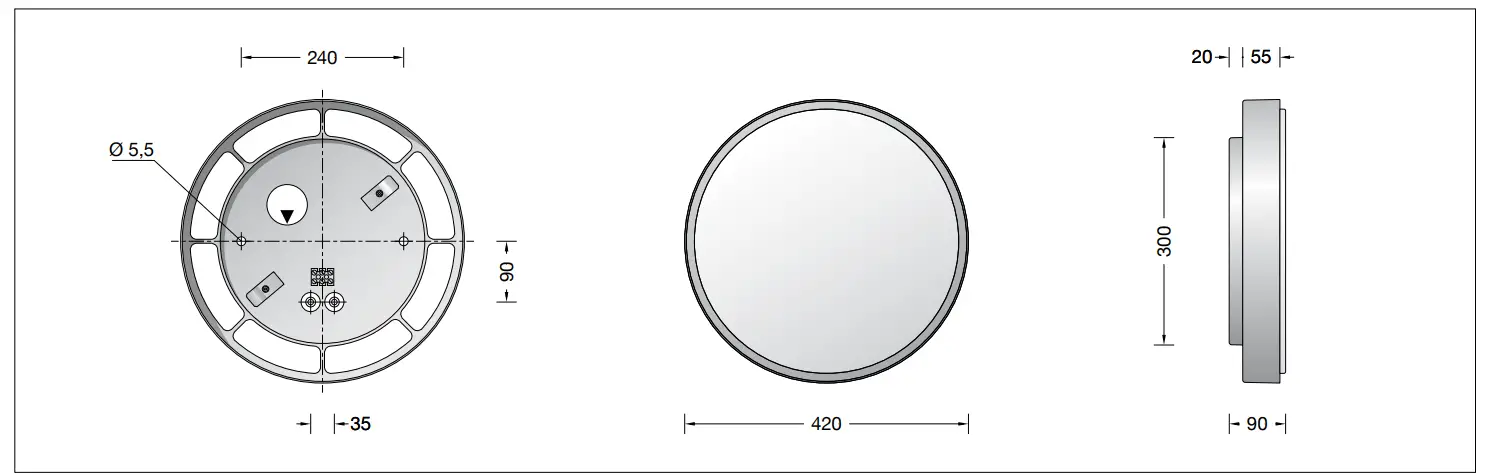

2 mounting holes ø 5.5 mm
Distance apart 240 mm
2 cable entries for through-wiring for mains
cable up to ø 10.5 mm max. 3 × 1.5@
Connection terminal 2.5@
Earth conductor connection
Lampholder E 27
Safety class I
Protection class IP 44
Protected against granular foreign bodies
≥ 1 mm and splash water
Impact strength IK07
Protection against mechanical
impacts < 2 joule
– Safety mark
– Conformity mark
Weight: 4.0 kg

Safety

The installation and operation of this luminaire are subject to national safety regulations.
Installation and commissioning may only be carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation. If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.

Installation

Pass the mains supply cable through the base plate.
Notice position of application »arrow down« when installed at the wall.
Fix base of the luminaire with enclosed or any other suitable fixing material on to the mounting surface.
It is imperative to use the enclosed gaskets.
Make earth and electrical connection to the terminals.
Insert lamps.
The sliding-bolt closure provides a safe and vibration-resistant holding of glass.
Place glass to the base plate and observe that the holding springbolts fit into the notches of the glass.
Insert the opal glass into the luminaire base with sliding bolt glass closure and turn the glass clockwise until it is locked.
To release the glass from the base plate, turn it counter-clockwise.

Relamping & Maintenance

Disconnect from main supply.
Remove glass turning it counter-clockwise.
Clean glass.
Use only solvent-free cleansers.
Change the lamp.
Place glass into fitter and turn it clockwise until the stop.

Spares
