anslut 423390 Bathroom Light
SAFETY INSTRUCTIONS
Read the user instructions carefully before use!
Save them for future reference.
- Never modify the light fitting in any way. Modifications can result in serious personal injury and void the warranty.
- For indoor use only.
- Do not connect the light fitting to the mains while it is still in the pack.
- The light fitting must only be installed by an authorized electrician.
- All electrical connections and connection cables must comply with local regulations for electrical installations. The main connection should be fused with a 70 A fuse.
- The light fitting must be installed correctly to work reliably.
- Different types of fasteners are required depending on the type of wall the light fitting will be fastened to. Make sure that the light fitting is properly mounted before use.
- Do not overload electrical outlets and extension cords; this may otherwise cause a fire or electric shock.
- Make sure that the light fitting is not connected to the mains supply before installation or during maintenance.
- Never look directly into the light source. The light fitting must not be used if the glass shade is damaged or missing.
- The power cord is not replaceable, if damaged discard the complete product.
The light fitting is approved for use down to zone 7; spaces above the bath or shower, up to 600 mm from the showerhead.
TECHNICAL DATA
- Voltage 230 V
- Protection rating IP44
- Max. permitted power on the light source 2x40W
- Dimensions B275xH80xD110 mm
- Adapted for light sources of Energy class A++ to D
- Socket G9

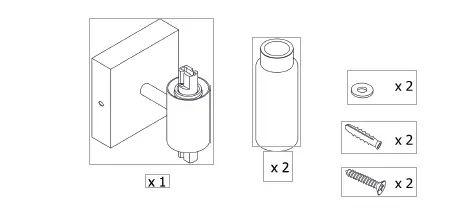

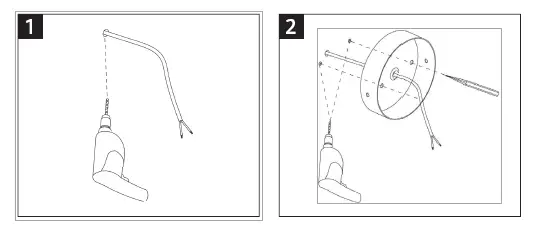

ASSEMBLY
WARNING:
Make sure that the light fitting is not connected to the main supply during installation.
MAINTENANCE
- Make sure that the light fitting is not connected to the mains supply during cleaning.
- Clean the external parts with a soft, slightly damp cloth. Never use alcohol, solvents, corrosive or abrasive agents.
- Make sure that the light fitting is dry before being reconnected to the main supply.
