Arlux LIGHTING 3297021151225 Bathroom Wall Light

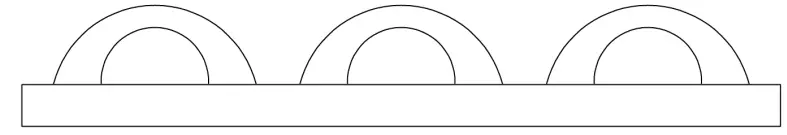

Arlux-LIGHTING-3297021151225-Bathroom-Wall-Light-product

Instructions for use

Integrated LED circuit

Arlux-LIGHTING-3297021151225-Bathroom-Wall-Light-fig-2

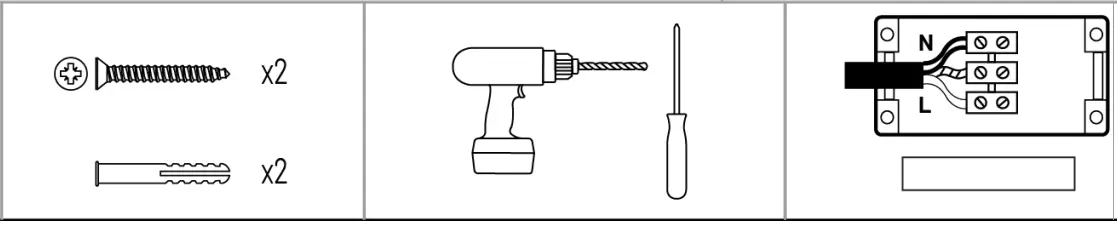

Included



Arlux-LIGHTING-3297021151225-Bathroom-Wall-Light-fig-3

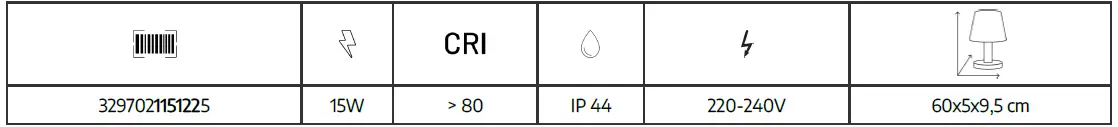

Specification

Arlux-LIGHTING-3297021151225-Bathroom-Wall-Light-fig-4

Electrical products must not be thrown out with domestic waste. Hey, must be taken to a communal collecting point for environmentally friendly disposal in accordance with local regulations. Contact your local authorities or stockist for advice on recycling.

Product conforms to European Union Directives

  • Live: brown wire
  • Neutral: blue wire
  • For indoor use only
  • Class ll, double insulated, earthless
  • Arlux-LIGHTING-3297021151225-Bathroom-Wall-Light-fig-5Light source replaceable by a professional (LED only)
  • Arlux-LIGHTING-3297021151225-Bathroom-Wall-Light-fig-6The power supply is replaceable by a professional.
  • This product contains a light source ref. 999019 of energy class F.

General safety instructions

  • The installation of the product must be carried out by an electrician or any other qualified person and in accordance with the standards in force in the country of installation.
  • To proceed with the installation or any maintenance or upkeep, turn off the electrical network.
  • Do not look directly at the light source.
  • Never touch the product when it is in use, or when it has just been turned off.
  • Do not use a damaged or modified power cord to avoid any risk of fire, electric shock.
  • Before use, make sure that the product has not been damaged. If deterioration is noted, do not use the product.
  • The flexible outer cable or cord of this fixture cannot be replaced. If the cable is damaged, the luminaire must be recycled.

Installation

Power

Arlux-LIGHTING-3297021151225-Bathroom-Wall-Light-fig-7

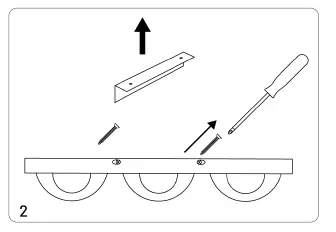

Arlux-LIGHTING-3297021151225-Bathroom-Wall-Light-fig-8

Arlux-LIGHTING-3297021151225-Bathroom-Wall-Light-fig-9

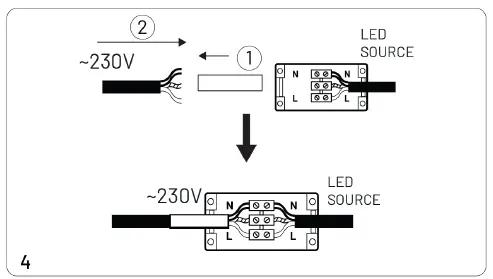

Wiring

Arlux-LIGHTING-3297021151225-Bathroom-Wall-Light-fig-10

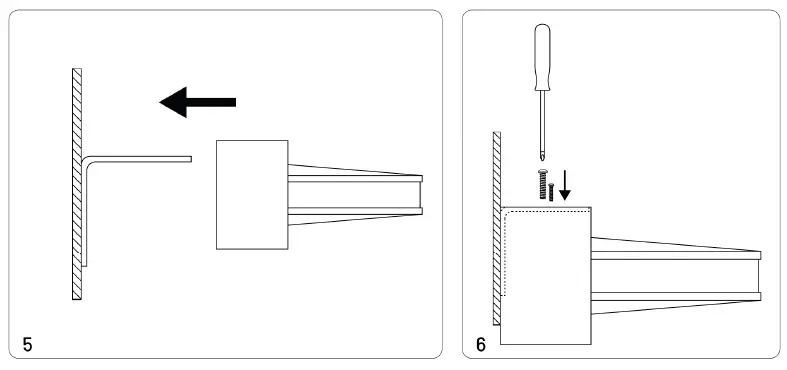

Arlux-LIGHTING-3297021151225-Bathroom-Wall-Light-fig-11
