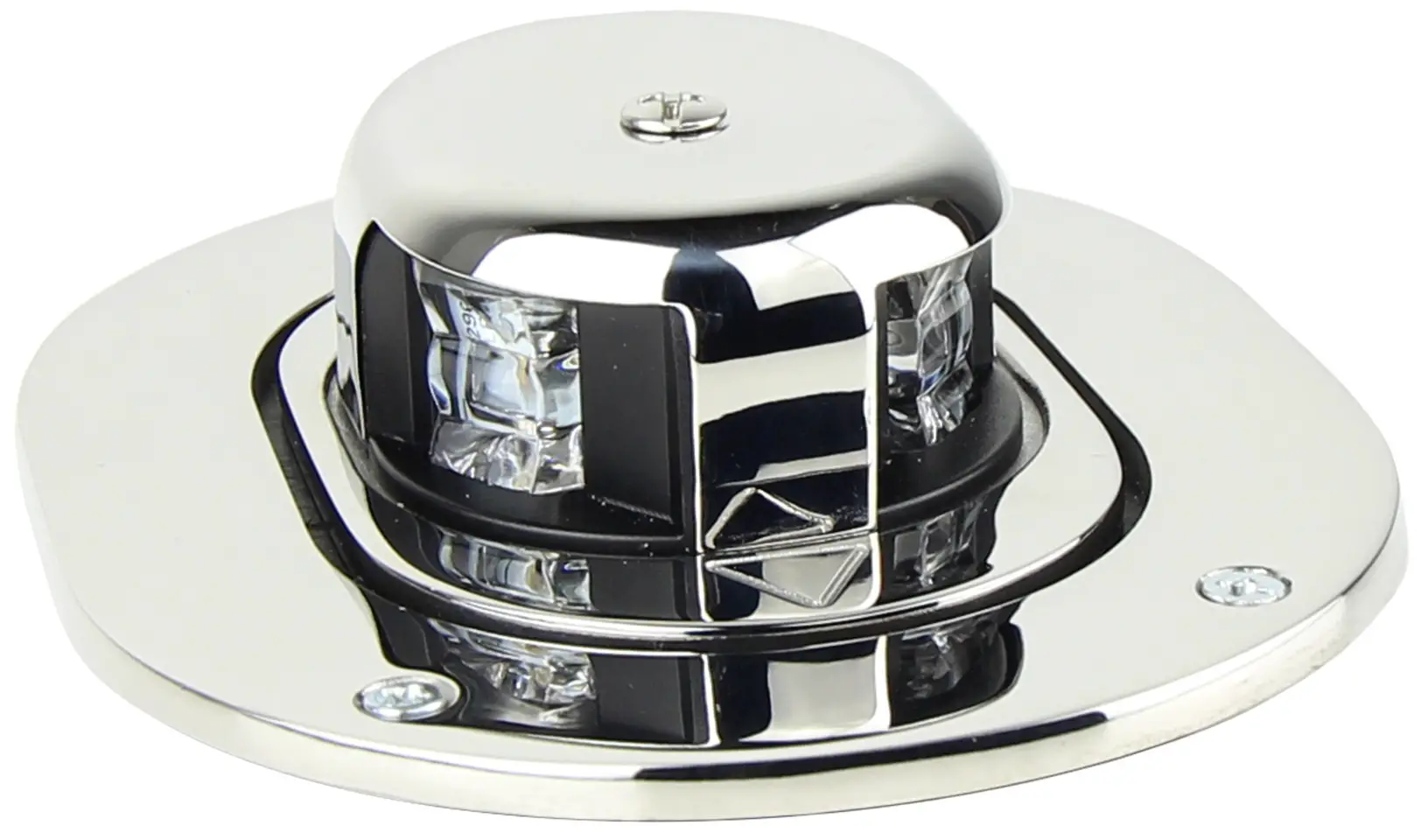

ITC 69636HSS Flip Nav Light Instruction Manual

TOOLS REQUIREMENT

PARTS/TOOLS NEEDED:

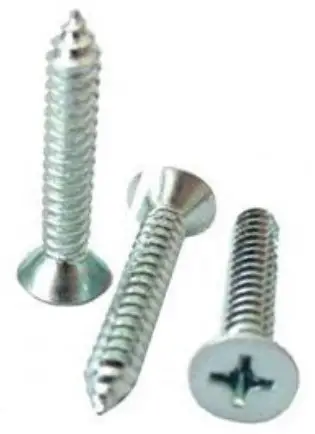

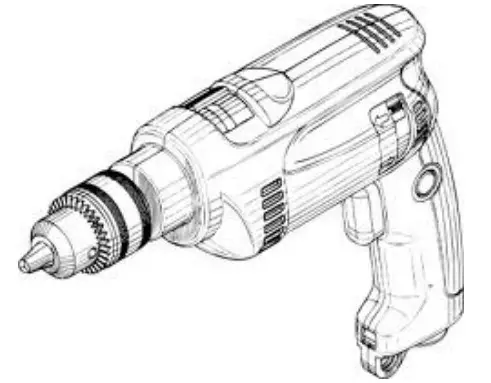

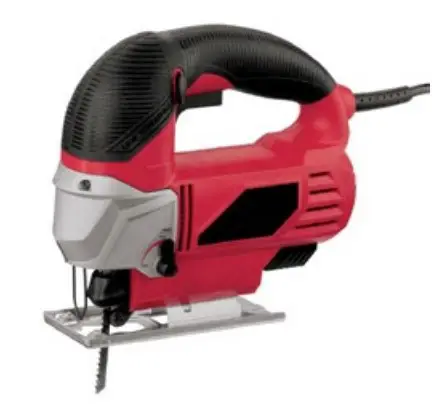

Navigation Light	Stainless Steel Screws (not provided)	Power Drill	Electric Jigsaw

Safety Instructions

• Disconnect power before installing, adding or changing any component.
• To avoid a hazard to children, account for all parts and destroy all packing materials.
• Do not install any luminaire assembly closer than 6” from any combustible materials.

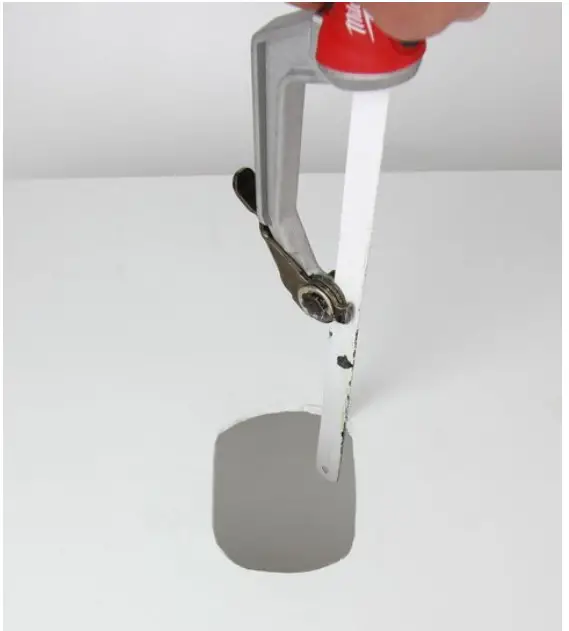

1. Determine your installation location and mark the location using the provided template. Once marked cut out the hole.

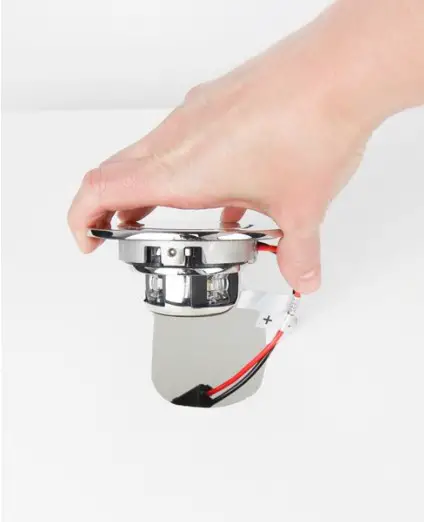

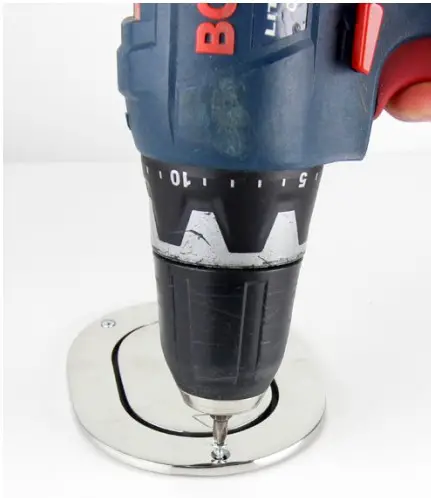

2. Insert the light into the hole and screw in using stainless steel screws.

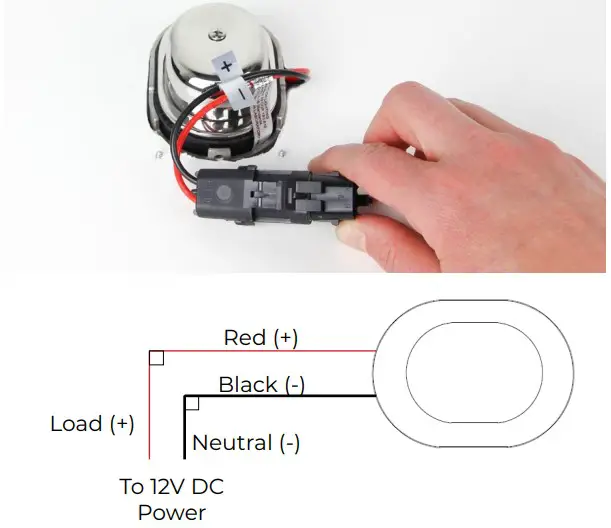

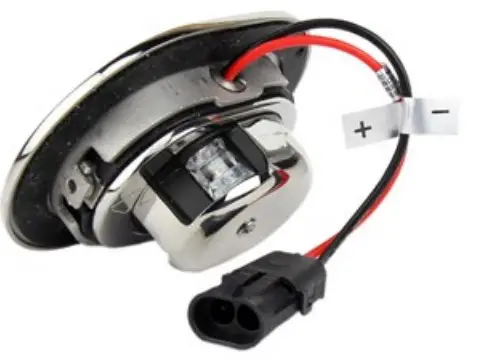

3. Attach the male connector on the light (Delphi – 12010973) with the female connector (Delphi – 12015792)on the boat or follow the wiring diagram below.
4.

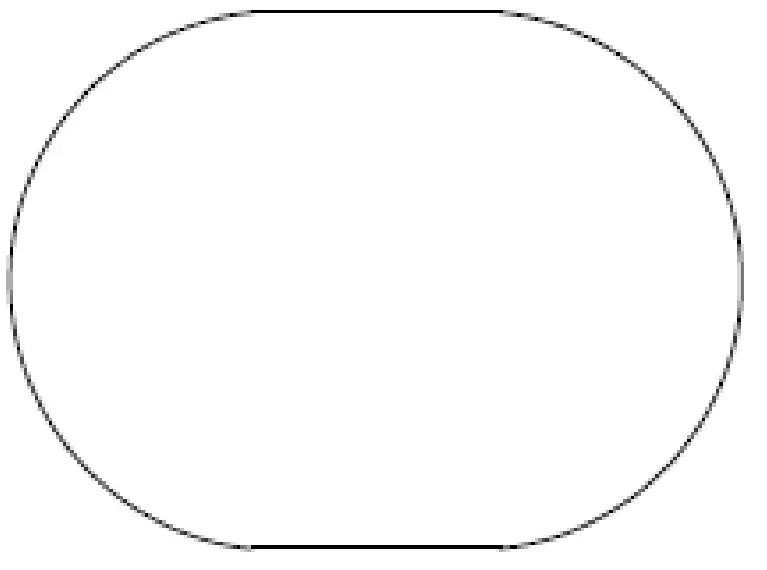

5. Cut out the template below to use as a guide for your hole.


Costumer Support

3030 Corporate Grove Dr.
Hudsonville, MI 49426
Phone: 616.396.1355
itc-us.com
