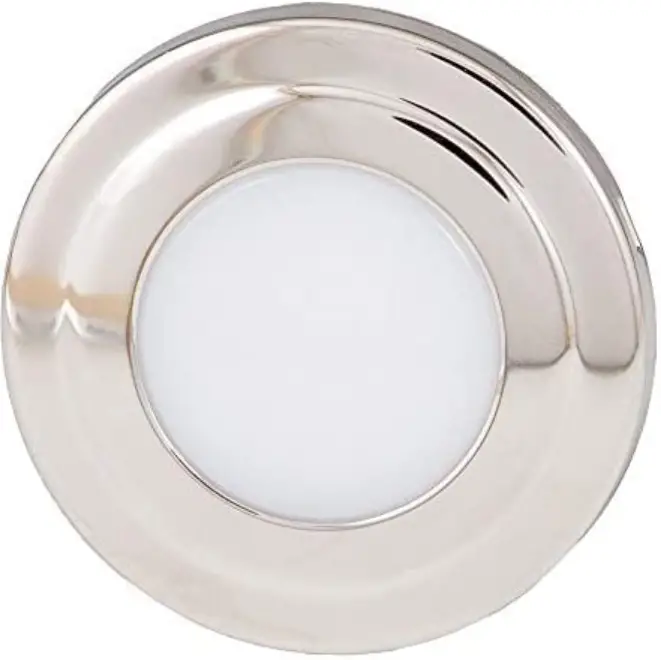

ITC 69320 Round Courtesy Light

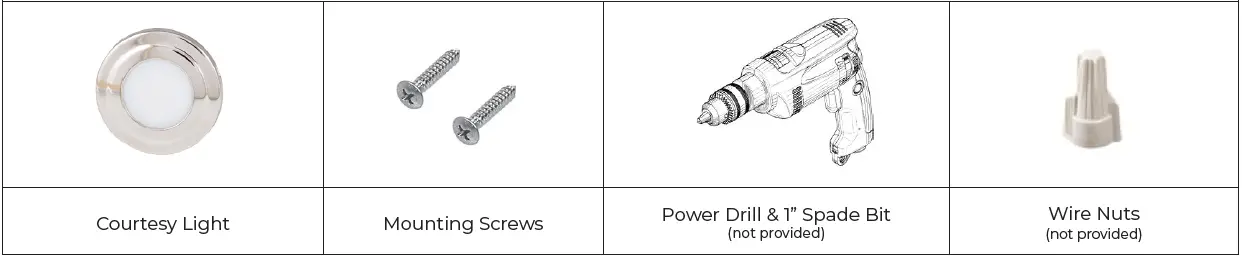

PARTS NEEDED
Safety Instructions
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- Operating Voltage: 10 – 14V DC

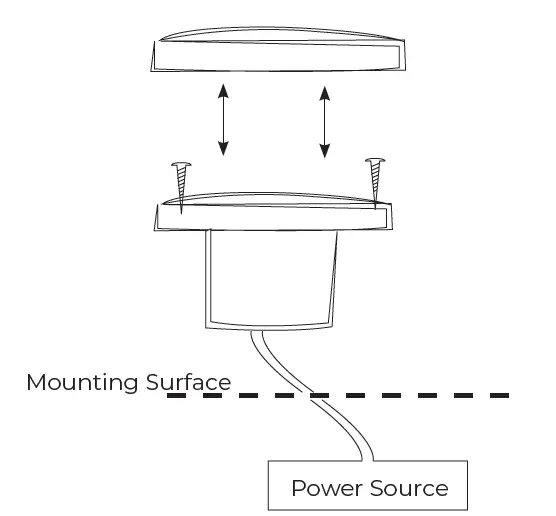

- Determine installation location and cut a hole with 1” hole saw or spade drill bit.
- Twist bezel counter-clockwise to remove.
- Attach wires to power source.
- Push light into hole and attach with provided screws.
- Replace bezel by pushing on and twisting clockwise until secure.

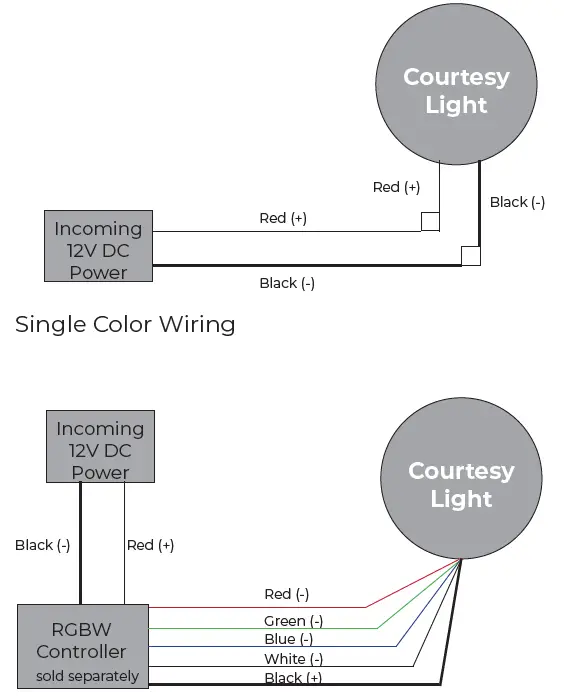

- Use the wiring diagrams below to wire the light to the unit’s power. Test the light.
For warranty information please visit www.itc-us.com/warranty-return-policy
3030 Corporate Grove Dr.
Hudsonville, MI 49426
Phone: 616.396.1355
