69921X-YY View
or Bella Reading Light
Part#: 69921X-YY or 69925X-YY
Installation Guide
69921X-YY View or Bella Reading Light

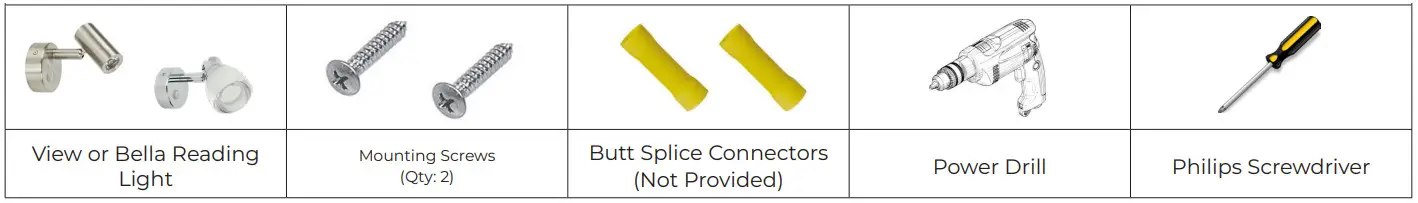

PARTS/TOOLS NEEDED:
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- It is recommended that fuse protection be added to the positive (+) input.

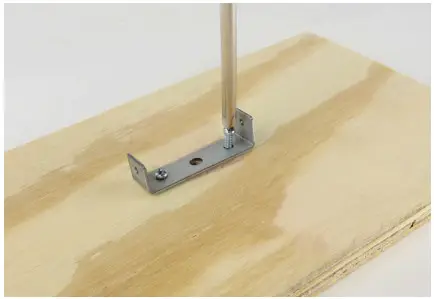

- Determine the installation location and use the mounting bracket to mark the location of the screw holes and wiring hole. Drill a hole and pull the units wiring through. Screw down the mounting bracket using the provided screws.

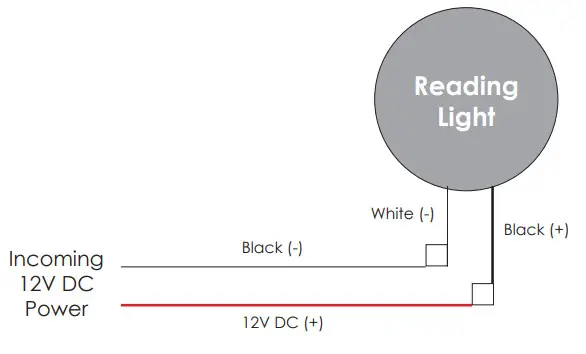

- Using the wiring diagrams below, wire the light to the units power.

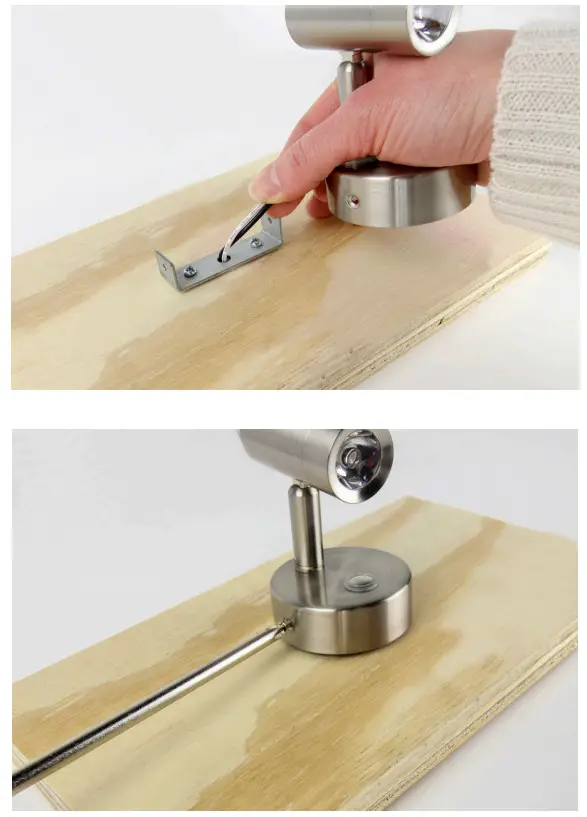

- Feed the wires back through the hole and tighten the set screws on wither side of the light. Test the light.
3030 Corporate Grove Dr.
Hudsonville, MI 49426
Phone: 616.396.1355
itc-us.com
For warranty information please visit
www.itc-us.com/warranty-return-policy
Rev D •11/22/22
