INSTALLATION INSTRUCTIONS
Compass™ Reading Light
Part#: 69923S & 69924S
PARTS/TOOLS NEEDED:
 |  |  |  |
| View or Bella Reading Light | Mounting Screws (Qty: 2) | Butt Splice Connectors (Not Provided) | Power Drill |
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- It is recommended that fuse protection be added to the positive (+) input.

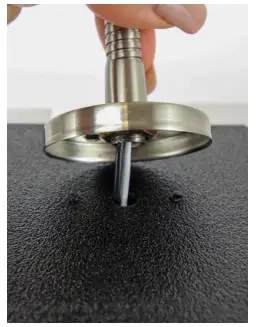

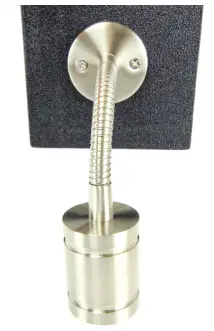

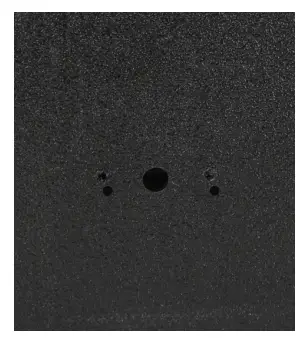

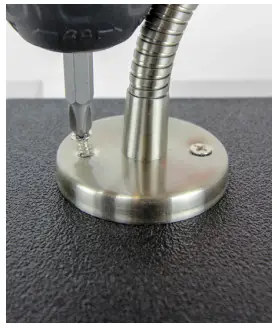

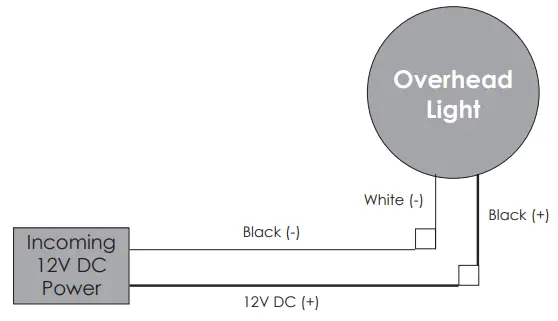

| 1. Determine the installation location and use the bezel to mark and drill screw holes and wiring hole. | 2. Using the wiring diagrams below, wire the light to the incoming 12V DC power. Test the light. | 3. Feed the wires back through the hole and screw the light down. | ||
 |  |  |  |  |
3030 Corporate Grove Dr.
Hudsonville, MI 49426
Phone: 616.396.1355
itc-us.com
For warranty information please visit
www.itc-us.com/warranty-return-policy
Rev A •11/22/22
